Medical Microscopes

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Medical Microscopes Specification

Product Type
Medical Microscopes

Features
Stable Metal Body, Fine Precision, Student and Laboratory Use

Spare Parts
Eyepiece, Objective Lens, Mirror, Bulb

Application
Research Microscope

Material
Mild Steel

Focus System
Coarse & Fine

Usage
Laboratory

Theory
Other

Drawtube
Monocular

Focal Distance
160 mm Millimeter (mm)

Magnification
100x to 1500x

Dimensions
340 mm x 170 mm x 110 mm Millimeter (mm)

Focus Range
Coarse and Fine Adjustment Millimeter (mm)

Eyepieces
10x WF, 15x WF

Eyepiece Tube
Inclined at 45 , Rotatable 360

Illumination
Mirror with Substage Condenser, Optional Electric Bulb

Coarse Adjustment Range
15 mm

Fine Adjustment Range
0.002 mm Precision

Working Stage
Mechanical Stage, 120 mm x 120 mm Square Millimeter (mm2)

View Head
Monocular, 360 Rotatable

Objective Achromatic
Achromatic 10x, 40x, 100x (Oil)

Condenser
Abbe Condenser NA 1.25 with Iris Diaphragm

Light Source
Reflector Mirror or 20W LED Bulb (Optional)

Medical Microscopes Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Medical Microscopes

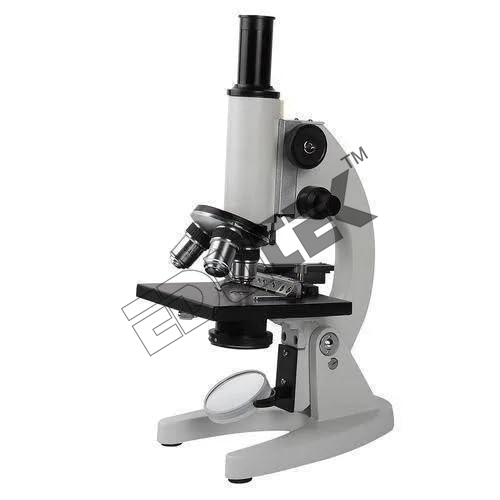

Medical Microscopes ETMS-132

Medical Microscopes is a straight tube monocular research microscope. The body is inclined upto 90° with separate coarse and graduated fine adjustments reading to .002mm. Triple revolving nosepiece, double lens condenser Numerical Aperture of 1.2 with irisdiaphragm and rack-n-pinion adjustment. Fixed stage with detachable mechanical stage, sub-stage planoconcave reflecting mirror interchangeable with sub-stage microscope lamp. With 10X, 15X or 5X hygenian eyepieces (2 Nos.) 10X, 45X, 100X oil-immersion (spring loaded) Achromatic objectives

Magnification - upto 1500X

It is available with fixed mechanical stage, export quality, as per ISI specifications. Supplied in a thermocol box & then wooden box.

Precision Engineering for Advanced Observation

This optical biological microscope features precise X-Y stage movement via rack and pinion, allowing for fine-tuned sample control. High-quality achromatic objectives and widefield eyepieces deliver crisp images at a variety of magnifications, making it suitable for educational and laboratory analysis. The robust metal construction ensures consistent stability during intensive use.

Flexible Illumination and Ergonomic Design

Choose between a traditional mirror and an optional 20W LED bulb to fulfill your illumination needs. The inclined and rotatable monocular head minimizes strain, supporting comfortable extended observation sessions. Its streamlined design and included dust cover help maintain optimal performance and cleanliness.

Adaptable for Diverse Laboratory Environments

With dual voltage compatibility (220V/110V) and standard export carton packaging, this medical microscope is ready for use or shipment worldwide. Spare eyepieces, objectives, mirrors, and bulbs are available for easy maintenance, ensuring hassle-free operation for exporters, manufacturers, and suppliers across India and beyond.

FAQs of Medical Microscopes:

Q: How do you adjust the focus on this medical microscope?

A: The microscope is equipped with both coarse and fine adjustment knobs. Use the coarse adjustment for general focusing within a 15 mm range, then implement the fine adjustmentprecise to 0.002 mmfor sharp clarity, especially at higher magnifications.

Q: What types of illumination options are available and when should each be used?

A: The microscope offers a reflector mirror for traditional light and an optional 20W LED bulb for consistent, bright illumination. Use the mirror in well-lit settings and the LED bulb in areas with limited natural light to ensure optimal visibility of specimens.

Q: Where can this microscope be utilized effectively?

A: This model is well-suited for educational institutions, medical laboratories, and research facilities thanks to its durable build, wide magnification range, and reliable focusing system.

Q: What is the purpose of the Abbe condenser with iris diaphragm?

A: The Abbe condenser (NA 1.25) and iris diaphragm concentrate and control the intensity of light that passes through the specimen. This combination delivers enhanced image contrast and detail, especially at higher magnification levels.

Q: How do you maintain the microscope for long-term use?

A: Keep the microscope covered with the provided dust cover when not in use. Clean the lenses with lens paper and avoid touching optical surfaces. Periodically check the mechanical stage and focusing mechanisms for smooth operation, and replace spare parts such as eyepieces or bulbs as needed.

Q: What are the benefits of the solid metal base and arm construction?

A: The solid metal base and arm provide superior stability and durability, reducing vibrations during observation. This leads to clearer, more precise images and extends the lifecycle of the instrument in demanding settings.
