Introduction To Refrigeration

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Introduction To Refrigeration Specification

Power Source
Electric

Dimension (L*W*H)
1300x700x900 Millimeter (mm)

Weight
30 Kilograms (kg)

Accuracy
100 %

Feature
Highly Efficient

Warranty
1 year

Type
INTRODUCTION TO REFRIGERATION

Usage
Laboratory

About Introduction To Refrigeration

INTRODUCTION TO REFRIGERATION

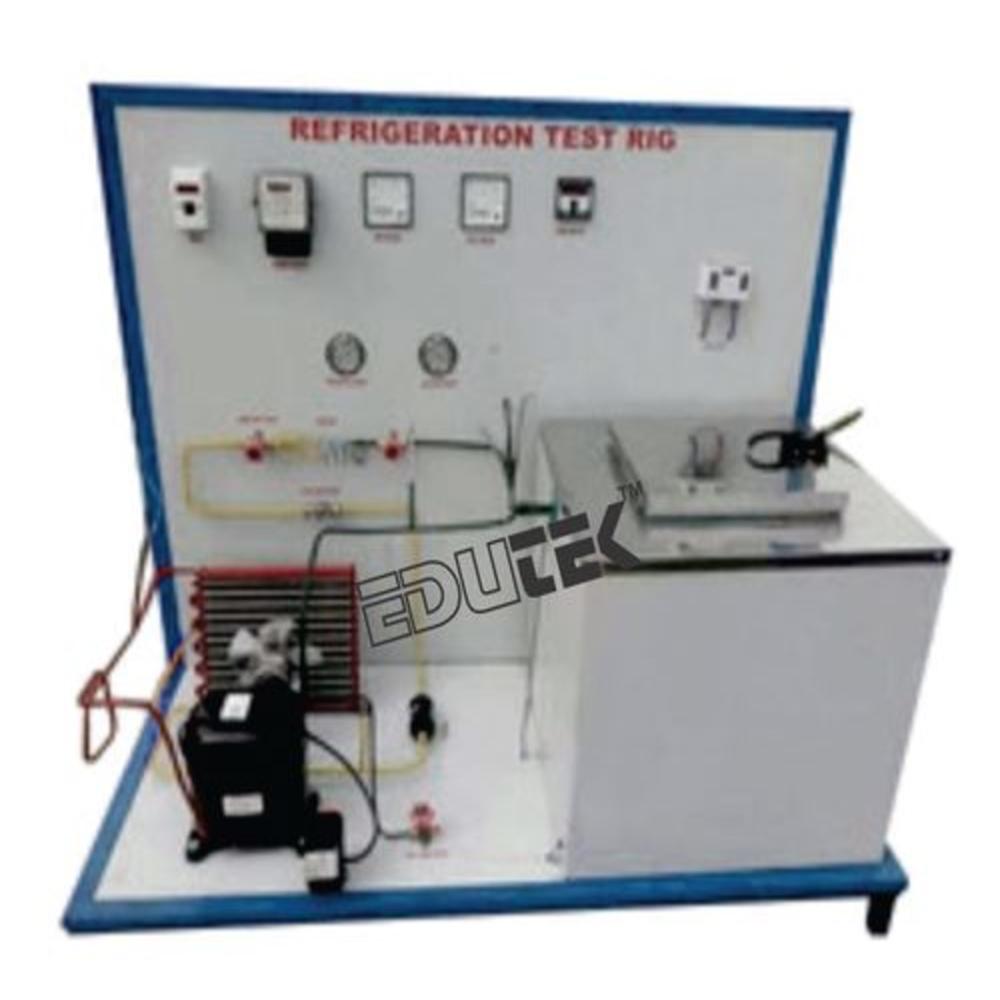

The experimental unit includes all the necessary components for a fully operational refrigeration circuit, such as compressor, condenser, evaporator and a capillary tube as expansion element. Other components complement the scope of the equipment: display and control panel, pressure switches and pressure display to protect the compressor against excessive pressure and a flow meter and sight glass with filter/drier. Condenser and evaporator are each present twice: as air/refrigerant heat exchanger and as water/refrigerant heat exchanger. This allows for different component combinations.

The components are mounted on plates and form installation-ready modules. 6 of the 8 modules are positioned in the frame at

any one time and connected via hoses and supply cables. This allows for the construction of different simple compression refrigeration systems. For filling the system the refrigerant filling and evacuation equipment is recommended.

In experiments the processes in the equipment and the changes in the refrigerant state are initially demonstrated. Continued experiments allow the use of the equipment as a refrigeration system and as a heat pump. Pressures, flow rates power consumption of the compressor are displayed as important characteristic variables of refrigeration circuits. The temperature is measured by inter laboratory thermometers.

The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the

experiments.

The unit shall perform the following experiments and investigations:

Learning Objectives / Experiments

Fundamentals of a simple refrigeration circuit
Detection and understanding of the cyclic process
Changes of state of the refrigerant
Representation the refrigeration circuit in the process schematic
Representation of the cyclic process in the log p-h diagram
Estimating key figures, refrigeration capacity and heat fluxes
Different operating modes air cooling
Generating cold water
Heat pump (generate hot water)
Practical exercises
Draining and filling the refrigeration system (with evacuation equipment set )
Fault finding

Specification

Setup of simple refrigeration circuits with different components
8 self-contained operational modules mounted on a plate each
Light-weight aluminium frame to arrange 6 modules
Evaporator and condenser each available as air/refrigerant heat exchanger (finned tube heat exchanger) and as water/refrigerant heat exchanger (with pipe coil)
Modules fitted with manual valves
Components connected via hoses
CFC-free refrigerant R134a

Technical Data

Hermetic refrigerant compressor
Power consumption: 67W at -10/32°C
Refrigeration capacity: 151W at 5/32°C
Tank content
Water tank, evaporator: 2L
Water tank, condenser: 3L
Pressure switch activation pressure
LP: 1bar
HP: 14bar
Manometer
Inlet side (low pressure): 1...10bar
Outlet side (high pressure): 1...30bar
Rotameter: 0...7,4L/h

Dimensions and Weight

LxWxH: 1300x700x900mm
LxW: 370x340mm (component plates)
Weight: approx. 30kg

Comprehensive Refrigeration Learning System

This product is meticulously designed for laboratory use, offering educational institutions and technical training centers a reliable tool for demonstrating basic and advanced refrigeration techniques. With its ideal dimensions and manageable weight, it fits comfortably into most lab workspaces, streamlining instruction and experimentation.

Exceptional Efficiency and Accuracy

Engineered with precision, this unit guarantees 100% accuracy, ensuring repeatable and reliable results for every laboratory session. The highly efficient design optimizes performance while maintaining minimal energy consumption, making it both cost-effective and environmentally conscious for institutional users.

FAQs of Introduction To Refrigeration:

Q: How is the Introduction to Refrigeration unit used in laboratory settings?

A: This unit is primarily used in labs for teaching and demonstrating the key principles of refrigeration, including cooling cycles, heat exchanges, and system components. Its hands-on setup allows students and professionals to observe and experiment with real-time refrigeration processes.

Q: What are the main benefits of using this refrigeration unit?

A: The main benefits include 100% accuracy in experiments, high operational efficiency, sturdy construction, and simplified maintenance. It provides practical experience, reinforcing theoretical knowledge through direct application and observation.

Q: When should this equipment be implemented into a learning curriculum?

A: This equipment should be introduced at the beginning of courses or training modules focused on thermal dynamics, HVAC, or refrigeration engineering, offering foundational practical skills before advancing to more complex topics.

Q: Where can this product be installed optimally in a laboratory?

A: Due to its compact size (1300x700x900 mm) and moderate weight (30 kg), it can be placed on standard laboratory workbenches or dedicated technical lab stations, ensuring accessibility for both instructors and students.

Q: What process does the unit demonstrate within refrigeration principles?

A: The unit demonstrates the refrigeration cycle, including compression, condensation, expansion, and evaporation phases, giving users a comprehensive understanding of each stage within a controlled, observable environment.

Q: How does the 1-year warranty benefit users and institutions?

A: The 1-year warranty offers assurance of product reliability and provides support for repairs or replacements, reducing downtime and ensuring cost-effective operation for educational institutions and research facilities.
