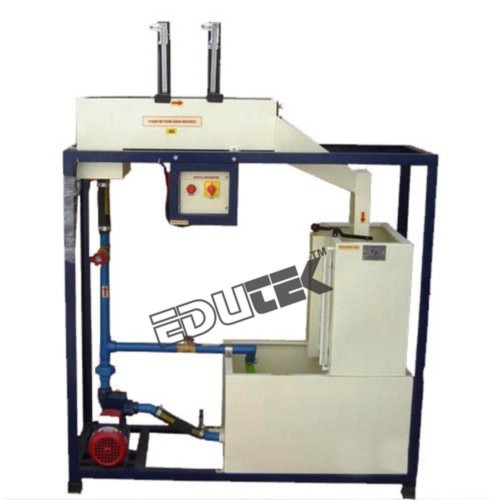

Fluid Mechanics Laboratory Module

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fluid Mechanics Laboratory Module Specification

Dimension (L*W*H)
1350x850x1150 Millimeter (mm)

Feature
Highly Efficient

Warranty
1 year

Weight
110 Kilograms (kg)

Accuracy
100 %

Type
BASE MODULE FOR EXPERIMENTS IN FLUID MECHANICS

Usage
Laboratory

About Fluid Mechanics Laboratory Module

BASE MODULE FOR EXPERIMENTS IN FLUID MECHANICS

The basic equipment for individual experiments: The supply of water in the closed circuit; the determination of volumetric flow rate and the positioning of the experimental unit on the working surface of the base module and the collection of dripping water. The closed water circuit consists of the underlying storage tank with a powerful submersible pump and the measuring tank arranged above, in which the returning water is collected. The measuring tank is stepped, for larger and smaller volumetric flow rates. A measuring beaker is used for very small volumetric flow rates. The volumetric flow rates are measured using a stopwatch. The top work surface enables the various experimental units to be easily and safely positioned.

Specification:

Base module for supplying experimental units in fluid mechanics
Closed water circuit with storage tank, submersible pump and measuring tank
Measuring tank divided in two for volumetric flow rate measurements
Measuring beaker with scale for very small volumetric flow rates
Measurement of volumetric flow rates by using a stopwatch
Work surface with integrated flume for experiments with weirs
Work surface with inside edge for safe placement of the accessory and for collecting the dripping water
Storage tank, measuring tank and work surface made of GRP

Technical Data:

Pump
Power consumption: 250W
Max. flow rate: 150L/min
Max. head: 7,6m
Storage tank, capacity: 180L

Measuring tank:

At large volumetric flow rates: 40L
At small volumetric flow rates: 10L

Flume:

LxWxH: 530x150x180mm

Measuring beaker with scale for very small volumetric flow rates:

Capacity: 2L

Stopwatch:

Measuring range: 0...9h 59min 59sec

Dimensions and Weight:

LxWxH: 1350x850x1150mm
Weight: approx. 110kg

Optimized for Precision and Efficiency

Engineered for maximum accuracy, the Fluid Mechanics Laboratory Module delivers reliable performance in experimental setups. Its sturdy construction and advanced design support accurate results, making it a preferred choice for laboratories seeking dependability. The equipments highly efficient operation minimizes test variability while enhancing the repeatability of experimental outcomes.

Reliable Construction and Flexible Usage

With its substantial dimensions and solid weight of 110 kilograms, this module is crafted for prolonged laboratory use. The design facilitates varied fluid mechanics experiments, providing an adaptable platform for research and training. Its robust build stands the test of time, significantly reducing maintenance needs and offering flexibility for different user requirements.

FAQs of Fluid Mechanics Laboratory Module:

Q: How is the Fluid Mechanics Laboratory Module used in experimental setups?

A: The module serves as a foundational platform for performing fluid mechanics experiments in laboratory settings, supporting multiple investigative procedures and educational activities.

Q: What are the benefits of using this base module in laboratory research?

A: This module offers highly precise measurements (100% accuracy), durability, and reliable efficiency, enabling researchers to obtain trustworthy results while streamlining the experimental process.

Q: When is the Fluid Mechanics Laboratory Module suitable for installation?

A: It is ideal for laboratories setting up or upgrading spaces dedicated to fluid mechanics experiments, especially when accuracy and reliability are essential requirements.

Q: Where can this equipment be sourced from?

A: It is available from exporters, manufacturers, and suppliers in India, ensuring convenient access for institutions seeking quality laboratory apparatus.

Q: What is the process for conducting experiments using this module?

A: Users set up the module according to their experiment protocols, utilizing its stable structure and integrated features to measure and analyze various fluid mechanics properties.

Q: How does the warranty support provide added value to users?

A: The 1-year warranty ensures peace of mind, covering any manufacturing defects and enabling prompt support or repairs should any issues arise during normal use.
