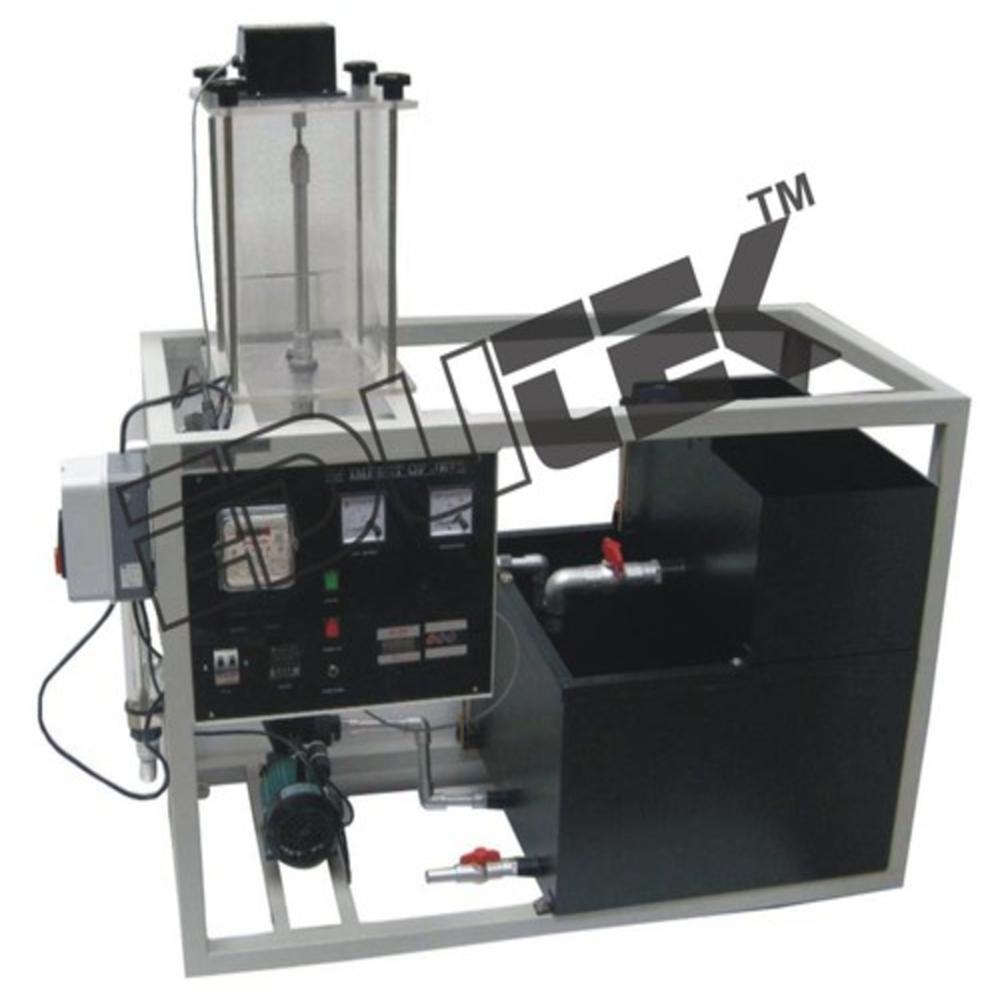

Impact of Jet of Water Apparatus

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Impact of Jet of Water Apparatus Specification

Measurement Range
0-10 L/min

Feature
Corrosion Resistant, Sturdy Construction, Easy Installation, Transparent tube

Accuracy
1%

Core Components
Nozzles, Measuring Tank, Deflector Plate, Collecting Tank, Frame

Frequency
50 Hz

Automation Grade
Manual

Temperature Range
Ambient

Power Source
Electric (for Pump)

Model No
JETWTR-01

Voltage
230 V

Capacity
5 Liters

Equipment Materials
Mild Steel

Type
Didactic/Laboratory Apparatus

Usage
Fluid Mechanic

Display Type
Analog scale

Dimension (L*W*H)
800 mm x 500 mm x 800 mm

Weight
Approx. 20 kg

Instruction Manual
Included

Deflector Plate Material
Stainless Steel

Material Finish
Powder Coated

Water Flow Adjustment
Manual Valve

Sump Tank Capacity
30 Liters

Maximum Jet Pressure
2 bar

Pump Type
Centrifugal Water Pump

Base Structure
Powder coated rigid steel frame

Nozzle Sizes
8 mm, 12 mm, 16 mm (interchangeable)

Application
Hydraulic Laboratory Experiments

Operation
Bench Top

Impact of Jet of Water Apparatus Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
Piece

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Middle East, Western Europe, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Impact of Jet of Water Apparatus

Impact of a Jet of Water

Descriptions of Impact of a Jet

Impact of a Jet of Water The object of this experiment was to determine the force exerted by a jet of water on a stationary vane and compare the experimental results to the theoretical results.

Specification of Impact of a Jet

To calculate the theoretical force a jet exerts on a surface.
Assuming the impact velocity is the same as nozzle exit velocity.
calculate the theoretical impact velocity.
Using the theoretical equation for the impact force of a jet, calculate the impact force.
Compare the theoretical and measured values.
To determine the reaction force produced by the impact of jet of water of variety type of target vanes.

Versatile Laboratory Equipment for Fluid Mechanics

This apparatus supports a wide range of hydraulic experiments, offering manual control over flow rates and jet pressure. Its interchangeable nozzle system allows users to analyze the influence of different jet sizes, ensuring detailed and repeatable results. Safety and durability are prioritized with a powder-coated finish and a rigid base frame.

Precise Measurement and Easy Operation

Equipped with an analog scale and transparent measuring tube, the system achieves high accuracy (1%) for flow measurements between 0-10 L/min. The manual valve enables smooth adjustment of jet flow, and the operation is straightforward, making it suitable for educational settings.

FAQs of Impact of Jet of Water Apparatus:

Q: How does the Impact of Jet of Water Apparatus work?

A: This apparatus operates by pumping water through interchangeable nozzles towards a stainless steel deflector plate, allowing users to measure the impact force and water flow adjustments using manual valves and analog scale indicators.

Q: What experiments can be performed using this apparatus?

A: You can investigate jet forces, study water flow behaviors, and analyze the effect of changing nozzle sizes on the impact force, making it ideal for experiments in fluid mechanics and hydraulic engineering courses.

Q: When should the nozzle sizes be changed during experiments?

A: Switch nozzle sizes when comparing the effect of varying jet diameters (8 mm, 12 mm, 16 mm) on the deflection force and flow rate, or whenever an experiment requires specific jet characteristics.

Q: Where should the apparatus be installed for optimal use?

A: Install the equipment on a stable, flat bench in a hydraulic laboratory. Ensure proximity to an electrical source (230V, 50Hz) and allow enough space around the unit for safe operation and maintenance.

Q: What is the process for adjusting the jet water flow?

A: Flow adjustment is manually controlled using the integrated valve. By turning the valve, users can vary the water discharge to achieve desired flow rates displayed on the analog scale and transparent tube.

Q: How does this apparatus benefit hydraulic laboratory studies?

A: It provides hands-on learning for fluid mechanics principles, offers precise measurements, and supports repeatable experiments with reliable accuracy, enhancing the understanding of jet impact dynamics.

Q: What makes this equipment easy to install and maintain?

A: The robust, powder-coated steel frame, corrosion-resistant components, and included instruction manual make installation straightforward. Maintenance is simplified by durable materials and clear design.
