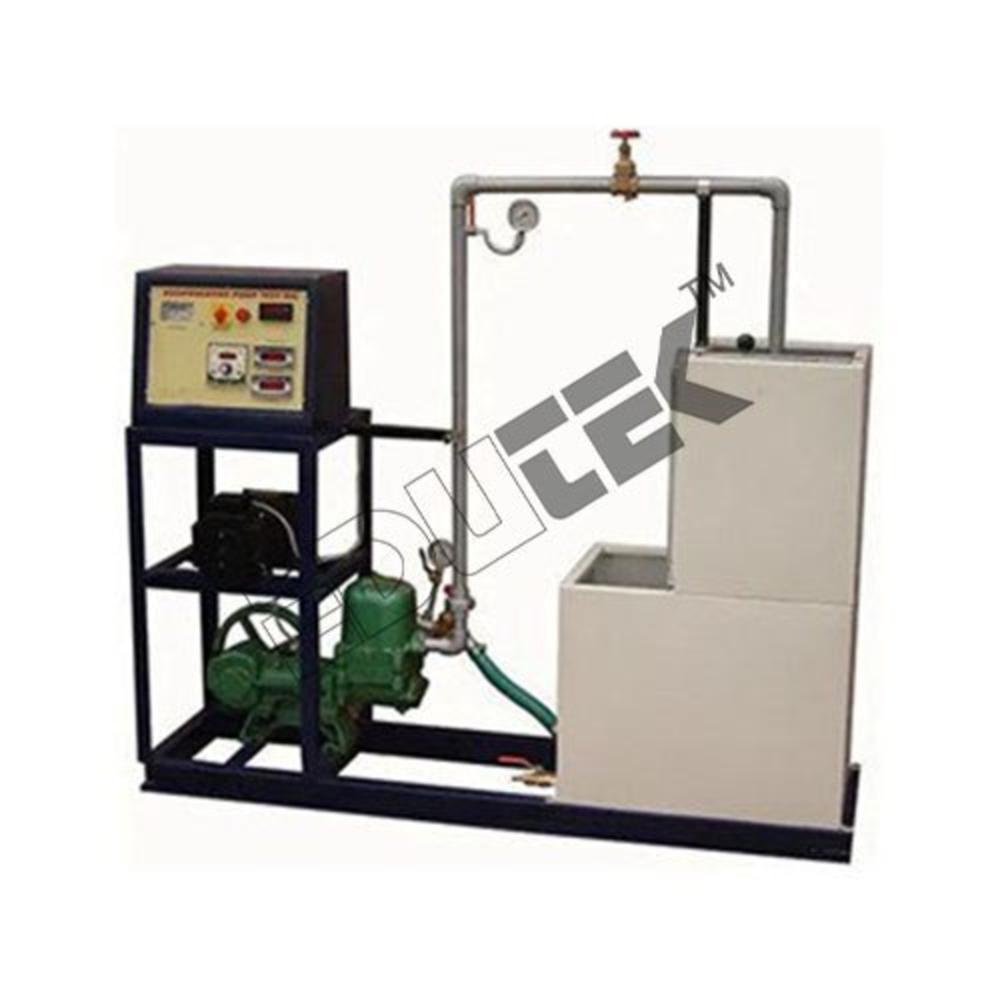

RECIPROCATING PUMP TEST RIG

Get a Price/Quote

MOQ : 1 Piece

RECIPROCATING PUMP TEST RIG Specification

Usage
Fluid Mechanics Lab Equipment

Power Source
Electric

Automation Grade
Manual

Feature
Corrosion resistant, Rigid structure, Transparent measurement tanks

Accuracy
1% %

Capacity
1 HP Ltr

Measurement Range
0.5 - 4 lpm

Temperature Range
Ambient to 50 C Celsius (oC)

Voltage
220 V AC Volt (v)

Core Components
Cylindrical Reciprocating Pump, Motor, Measuring Tank, Piping, Pressure Gauges, Flow control Valves, Strainer

Model No
RPE-101

Frequency
50 Hz Hertz (HZ)

Product Type
RECIPROCATING PUMP TEST RIG

Application
Fluid Mechanics Lab Equipment

Equipment Materials
Mild Steel, Stainless Steel (Contact Parts)

Type
Test Rig

Display Type
Analog

Dimension (L*W*H)
1500 mm x 800 mm x 1000 mm Millimeter (mm)

Weight
Approx. 120 kg Kilograms (kg)

Pump Type
Single acting reciprocating

Inlet and Outlet Size
20 mm

Observation Tank Capacity
50 Litres

Piping Material
PVC/SS

Maximum Discharge
1500 LPH

No. of Cylinders
Single

Speed
1500 RPM

Working Pressure
Up to 5 kg/cm2

Drive
Direct coupled electric motor

Painting/Finish
Powder coated

Sump Tank Capacity
75 Litres

Safety Features
Overload protector for motor

Pump Material
Cast Iron

RECIPROCATING PUMP TEST RIG Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cheque

Packaging Details
Carton Box, Export Quality also Available

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About RECIPROCATING PUMP TEST RIG

Specification:

RECIPROCATING PUMP TEST RIG

The present Reciprocating Pump TestRig is a self-contained unit operated on closed circuit basis containing a sumptank. The set-up consists of a Double acting, Single Cylinder ReciprocatingPump coupled with an AC Motor. Flow of water is measured by using measuringtank and stopwatch.

Vacuum gauge is fitted on suctionline and Pressure gauge is fitted on delivery line to measure the pressure.

Experimentation:

To determine the characteristics ofreciprocating pump and to find out total head, pump efficiency, overallefficiency & volume metric efficiency.

To plot the graph

Head Vs Discharge

Discharge Vs Pump efficiency

Precise Testing Capabilities

Engineered for educational and research applications, the test rig provides accurate measurements of flow rate and pressure, with an accuracy of 1%. The transparent measurement tanks and analog gauges support effective monitoring, while direct motor coupling guarantees stability during operation.

Durable and User-Friendly Design

Constructed using corrosion-resistant materials such as mild steel and stainless steel for contact parts, along with powder-coated finishes for longevity. The observation and sump tanks are suitably sized for laboratory experiments, and the overall structure is rigid and compact, fitting easily within typical lab environments.

Efficient and Safe Operation

Equipped with an overload protector and high-quality components, the rig ensures user safety and equipment longevity. The manual automation grade allows for straightforward operation, making it suitable for students, researchers, and engineers seeking repeatable fluid mechanics demonstrations.

FAQs of RECIPROCATING PUMP TEST RIG:

Q: How does the reciprocating pump test rig operate for experiments?

A: The rig uses a single-cylinder, single-acting reciprocating pump driven by a direct-coupled electric motor at 1500 RPM. Water is drawn from the sump tank and discharged through the measurement system, enabling users to study pump performance under various flow rates and pressures within the specified range.

Q: What are the main benefits of using this test rig in a fluid mechanics lab?

A: This rig helps users understand the fundamental principles of reciprocating pumps, including flow, pressure, and discharge measurement. Its robust construction, corrosion resistance, and accurate analog displays make it a valuable teaching tool for reliable and repeatable experiments.

Q: When should this equipment be used in a laboratory setting?

A: The test rig is ideal for fluid mechanics curriculums, research projects, and practical training sessions. It is suited for laboratory exercises involving pump performance analysis, efficiency studies, and demonstration of pumping mechanisms.

Q: Where are the observation and sump tanks located, and why are their capacities important?

A: The 50-litre observation tank and 75-litre sump tank are integrated into the rigs structure for efficient water circulation during experiments. These capacities ensure sufficient water volume for uninterrupted operation and accurate measurement during extended sessions.

Q: What safety features are included to ensure operator protection?

A: The test rig is equipped with an overload protector for the motor, safeguarding users and the equipment from excessive electrical or mechanical strain during operation. This feature promotes a safe laboratory environment.

Q: How does material selection benefit the longevity and performance of the rig?

A: The use of cast iron for the pump and stainless steel for contact parts ensures durability, corrosion resistance, and extended equipment life. Powder-coated painting further protects against rust and wear, maintaining the rigs performance over time.
