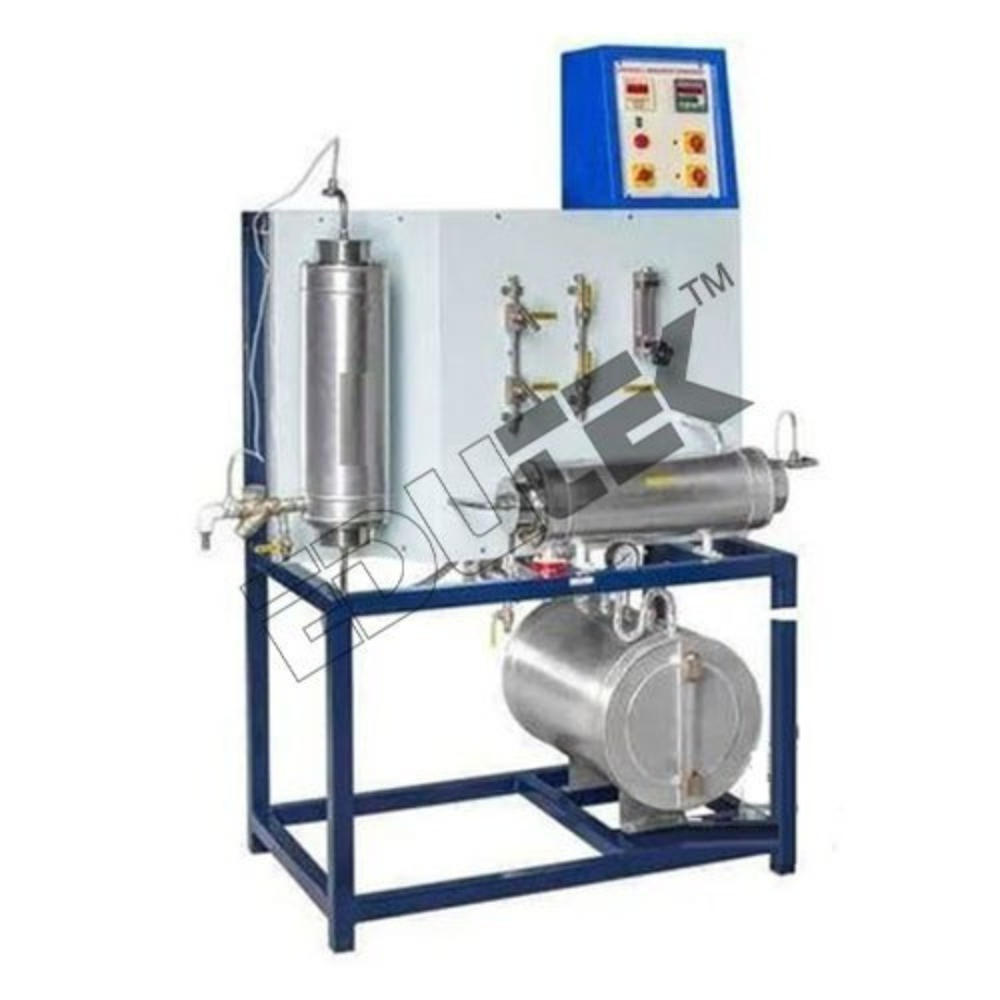

Send InquiryHORIZONTAL CONDENSER APPARATUS
Price 28500.0 INR/ Piece
MOQ : 1 Piece
HORIZONTAL CONDENSER APPARATUS Specification
- Temperature Range
- Temperature of inlet and outlet ofboth hot & cold fluids are measured by temperature sensor Celsius (oC)
- Usage
- Heat Transfer Laboratory Equipment
- Warranty
- 1 Year
- Application
- Heat Transfer Laboratory Equipment
- Feature
- The present set-up is designed tostudy Horizontal condenser. It consists of a Horizontal condenserhaving a shell fitted with tubes. Cold fluid flows through tubes andsteam flows through the shell. Steam generator is fitted with heaterto provide steam controlled by a Digital Temperature controller.
- Product Type
- HORIZONTAL CONDENSER APPARATUS
- Type
- HORIZONTAL CONDENSER APPARATUS
HORIZONTAL CONDENSER APPARATUS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Middle East, Africa, Asia
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About HORIZONTAL CONDENSER APPARATUS
Specification:
HORIZONTAL CONDENSER APPARATUS
The present set-up is designed tostudy Horizontal condenser.
It consists of a Horizontal condenserhaving a shell fitted with tubes.
Cold fluid flows through tubes andsteam flows through the shell.
Steam generator is fitted with heaterto provide steam controlled by a Digital Temperature controller.
Level indicator helps to maintainlevel of water in steam generator.
Valves are provided to control theflow rates of cold fluids.
Flow rate of cold water is measuredusing a Rotameter.
Shell is fitted with steam traps fromwhere condensate is collected in measuring cylinder.
Temperature of inlet and outlet ofboth hot & cold fluids are measured by temperature sensor
Engineered for Accurate Heat Transfer Experiments
The Horizontal Condenser Apparatus supports comprehensive heat exchange studies using a durable shell-and-tube configuration. Featuring precise electronic controls and temperature sensors, it allows in-depth observation and measurement of condensation and thermal exchange processes in real time. The apparatus is suitable for laboratory settings in universities or research institutions.
User-Friendly Operation and Reliable Performance
This apparatus is designed for ease of use, with a digital temperature controller for precise steam management and clearly accessible temperature readings at both inlet and outlet points. Durable construction ensures consistent performance, while the 1-year warranty offers peace of mind for frequent laboratory use.
FAQ's of HORIZONTAL CONDENSER APPARATUS:
Q: How does the Horizontal Condenser Apparatus operate in heat transfer experiments?
A: The apparatus facilitates condensation studies by allowing cold fluid to flow through tubes inside a shell where steam circulates. As the steam comes in contact with the cold tubes, it condenses, and temperature changes at various points are measured, enabling calculation of heat transfer rates.Q: What is the primary application of this Horizontal Condenser Apparatus?
A: It is mainly used as a heat transfer laboratory instrument in educational and research institutions, enabling the study and analysis of condensation and heat exchange in a controlled environment.Q: Where is the temperature of the fluids monitored in the apparatus?
A: The temperature sensors measure the inlet and outlet points of both the hot (steam) and cold fluids, providing accurate Celsius readings for each, which are essential for thorough thermal analysis.Q: When should the digital temperature controller be adjusted during experiments?
A: The digital temperature controller can be adjusted at the start or during the experiment to set or modify the steam temperature, allowing a wide range of heat transfer scenarios to be examined.Q: What benefits does this apparatus offer to laboratory users?
A: Users benefit from its precise measurement capabilities, reliable control of experimental conditions, and robust construction, making it ideal for repeatable and accurate heat transfer studies supported by a 1-year warranty.Q: How should the Horizontal Condenser Apparatus be maintained for optimal performance?
A: Routine maintenance includes regular inspection and cleaning of the tubes and shell, ensuring temperature sensors are calibrated, and checking the steam generator and digital controller for proper functioning.
