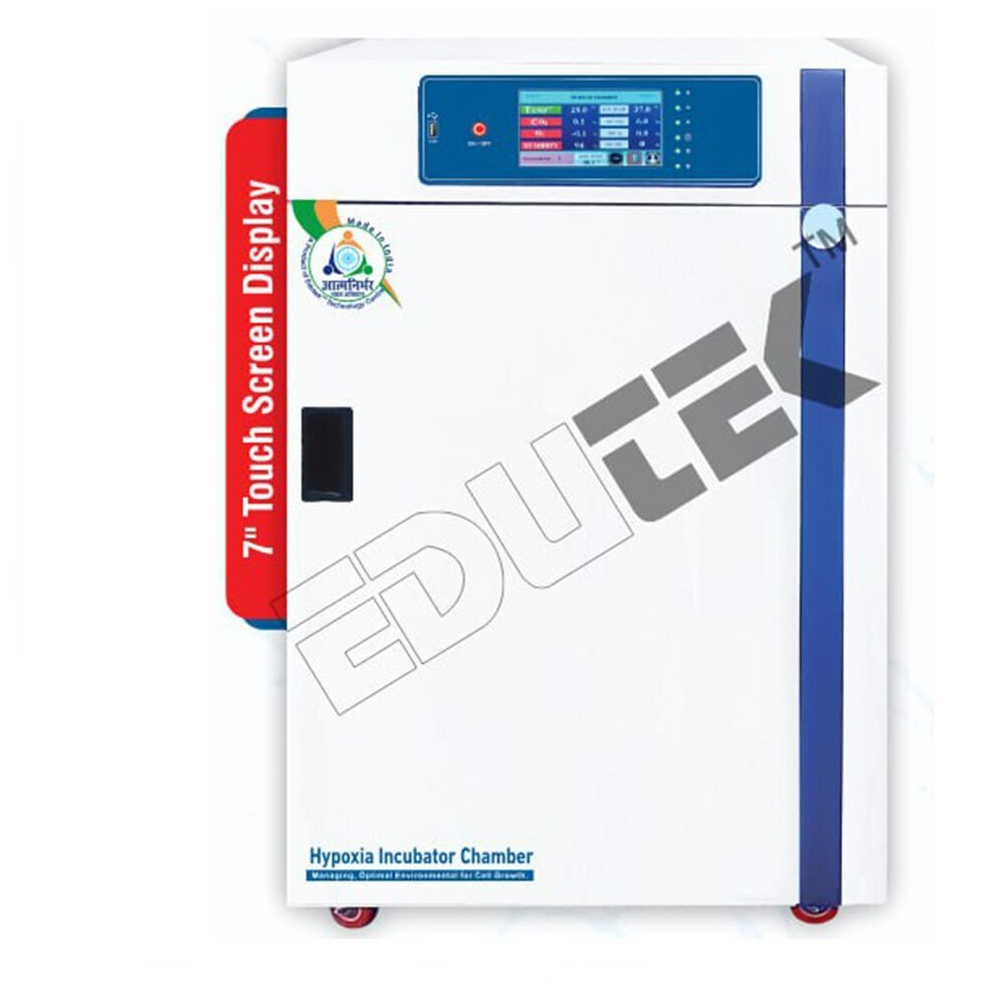

HYPOXIA INCUBATOR CHAMBER

About HYPOXIA INCUBATOR CHAMBER

CODE: ETS-56TG

The hypoxiachamber should be ideal for the experiments of the cultivation of mammaliancell culture, sperm/ovum, anaerobic cells, and all sorts of microbe cells, hatching/germinatingand special tissues.

Features:

The innerchamber of the hypoxia chamber have volume of 50/100 /150/180 liters with MultiGas Supply (N2 & CO2).

EdutekHypoxia Chamber have monitoring system with analog connection port designed toobserve the status of equipment in real time even in the far distance.

EdutekHypoxia Chamber have LED display with Individual 2-channel touch buttonoperating panel.

Fast CO2,O2, N2, temperature and humidity recovery without overshoot.

EdutekHypoxia Chamber have In-line filters remove gas impurities and contaminants.

EdutekHypoxia Chamber have Fast heat-up, fast-recovery, reliable control.

Digital PIDcontrolled Temperature range should be ambient +5C 60 C with accuracyof±0.1C (37C) and resolution of 0.1 C

EdutekHypoxia Chamber have 6 sides direct heating system and the electric heatingwire should be covered on all sides of the chamber to make good uniformity andto provides fast heat-up & temperature recovery.

Gentle airand moisture convection air and moisture in the chamber should be distributednaturally by 6 side heating and the air circulation fan.

EdutekHypoxia Chamber Independently validated overnight cycle ensures completeelimination of all biological contaminants.

No need toremove IR CO2 sensor.

EdutekHypoxia Chamber have 125 C dry hot air sterilization, conforms to theInternational standards for dry heat sterilization and proven to effectivelydeactivate normally-resistant fungi, bacterial spore and vegetative cells.Non-toxic and non-corrosive sterilization that completes within 12 hoursleaving the chamber cool and dry at the end of the cycle.

The 3 partsof heating section should be controlled and calibrated individually by 3individual temperature sensors.

EdutekHypoxia Chamber have antimicrobial powder coating to eliminate 99.9% of surfacebacteria within 24 hours of exposure.

EdutekHypoxia Chamber be dry wall and air jacket system with warm air from heatingwire which preserved in space between the chamber and the insulation layer tohelps temperature recover faster and minimize heat loss.

EdutekHypoxia Chamber have lower gas consumption and lower heat loss.

The systeminsulation should not require regular maintenance.

EdutekHypoxia Chamber have dual beam IR CO2 Sensor for fast & precise detectionfor CO2 gas regardless of temperature and humidity.

Microprocessorcontrolled CO2 range should be 0%20% with Accuracy of ± 0.1% (5%/37C),resolution of 0.1% and Inlet pressure range of 0.50.6 bar.

EdutekHypoxia Chamber have natural humidification using water tray.

EdutekHypoxia Chamber have O2 Range of 0.620% with zirconium dioxide sensor.

EdutekHypoxia Chamber have circulation fan to delivers the moisture formed from thewater to the entire chamber.

EdutekHypoxia Chamber have front door heater & frame heater to preventcondensation in the chamber and on the glass door.

EdutekHypoxia Chamber have ULPA/HEPA filtration. Filtered air circulates across thehumidity pan to accelerate the humidifying process.

EdutekHypoxia Chamber have microprocessor PID control to Intelligence control for CO2density, temperature and alarm.

Alarm systemshould remind the user to replace CO2 tank and ULPA filter.

It can alsobe used as normal CO2 incubator
