Thermal Conductivity of Insulating Powder

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Thermal Conductivity of Insulating Powder Specification

Feature
Accurate Measurement, Durable Construction, Easy to Operate

Warranty
1 Year

Voltage
220V AC Volt (v)

Capacity
Single sample, standard test volume Kg

Power Source
Electric

Temperature Range
Ambient to 150 C Celsius (oC)

Automation Grade
Manual

Accuracy
1 C C

Measurement Range
Low to moderate thermal conductivity insulating powders

Model No
TICP-01

Frequency
50 Hz Hertz (HZ)

Core Components
Heater, Temperature Sensors, Calorimeter Vessel, Control Panel, Glass Wool

Equipment Materials
Mild Steel, Stainless Steel, Glass Wool, Copper

Type
Insulating Powder Apparatus

Usage
Laboratory, Educational Institutes, Research

Display Type
Analog/Digital

Dimension (L*W*H)
550 mm x 350 mm x 450 mm Millimeter (mm)

Weight
Approx. 12 Kg Kilograms (kg)

Control
Knob based adjustment with pilot lamp

Insulation Type
Glass Wool/Air Gap

Sample Holder Material
Brass/Copper

Thermal Conductivity Range
0.02 W/mK to 0.07 W/mK

Application
Determination of thermal conductivity of insulating powder

Thermal Conductivity of Insulating Powder Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Delivery Time
2 Week

Sample Available
Yes

Main Export Market(s)
Australia, Central America, North America, Asia, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, North India, East India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Thermal Conductivity of Insulating Powder

Thermal Conductivity of Insulating Powder

Description :

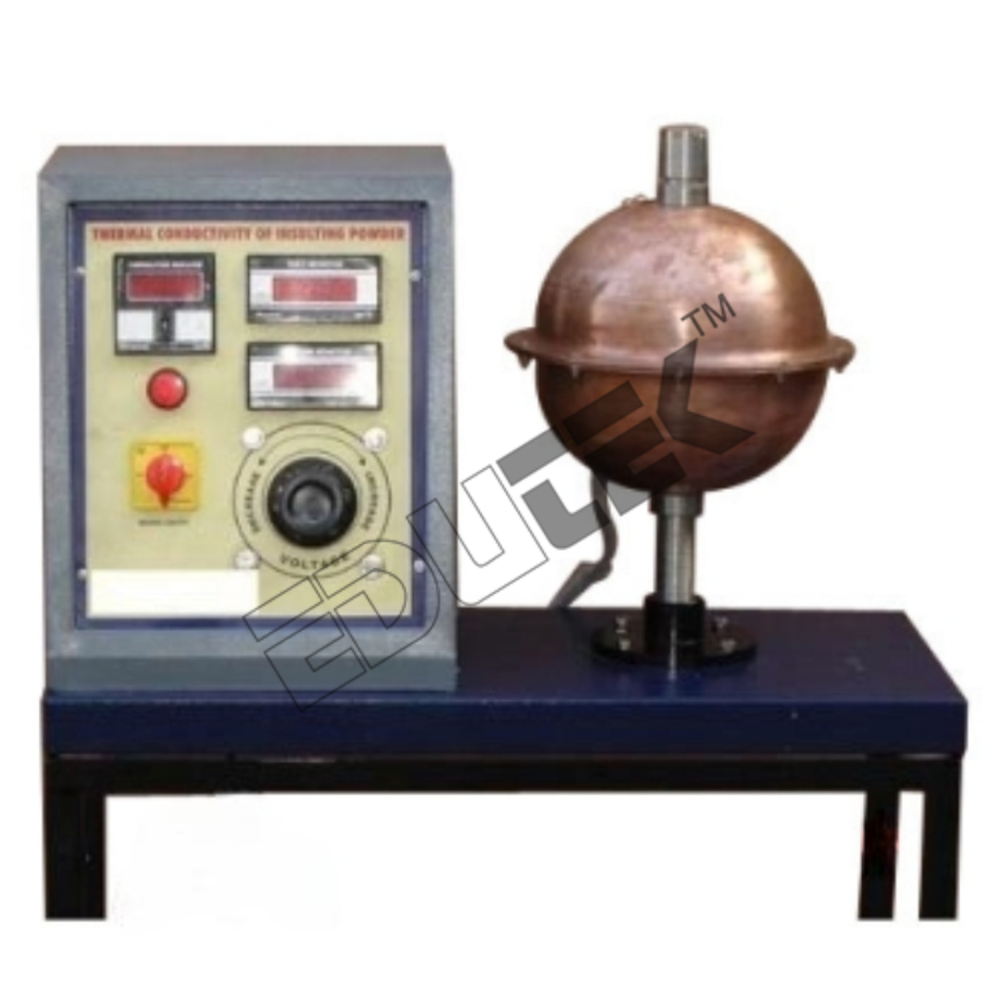

Insulating Powder apparatus is designed to determine the thermal conductivity of insulating Powder. The Apparatus consists of two thin-walled concentric copper spheres. Inner sphere houses Nichrome Wire heating coil. Insulating Powder is fitted between the spheres. Heat flows radically outwards. Temperature sensors at proper positions are fitted to measure surface temperatures of spheres. Heat input for the heater is given through a Variac and measured by Digital Voltmeter & Digital Ammeter. By varying the heat input rates, wide range of experiments can be performed.

Experiments:

Determination of thermal conductivity of insulating powder.
Comparison of thermal Conductivity of insulating powder at different temperatures.

Technical Details:

Inner Sphere : 100 mm diameter.
Outer Sphere : 200 mm diameter.
Heater : Ni-chrome Wire
Temperature Sensors : RTD PT-100 Type (10 Nos.)
Control Panel : Digital Voltmeter: 0-300 Volt.
Digital Ammeter: 0-2 Amp.
Variac : 0-230 V / 2 Amps.
Digital Temperature Indicator: 0-300 deg.C
With Multi-Channel Switch, ON/OFF Switch, Mains Indicator.

Purpose-Built for Reliable Measurement

This apparatus is specially designed for determining the thermal conductivity of insulating powders, providing a controlled environment for single-sample, standard test volume studies. It combines solid construction with user-friendly operation and high accuracy, making it an indispensable tool for laboratories and educational institutes.

Robust Design and Easy Control

Constructed with high-quality mild steel, stainless steel, and copper, the apparatus offers durability and stability during use. The knob-based adjustment system, complete with a pilot lamp, allows for precise control over testing conditions, while the clear analog or digital display ensures straightforward readings every time.

FAQs of Thermal Conductivity of Insulating Powder:

Q: How does the Thermal Conductivity of Insulating Powder Apparatus work?

A: The apparatus measures the rate of heat transfer through a powder sample placed within a brass or copper holder, insulated by glass wool or an air gap. By monitoring temperature differences and heat input, it calculates the thermal conductivity with high accuracy.

Q: What types of insulating powders can be tested with this equipment?

A: It is suitable for low to moderate thermal conductivity powders, specifically those with values ranging from 0.02 W/mK to 0.07 W/mK, making it versatile for a range of laboratory and research applications.

Q: When should the apparatus be used in laboratory settings?

A: The apparatus is ideal for research experiments, educational demonstrations, or quality control whenever accurate thermal conductivity data for insulating powders is required within the specified range.

Q: Where is the apparatus commonly utilized?

A: This equipment is widely used in laboratories, educational institutions, and research facilities where thermal properties of insulating materials are studied or analyzed.

Q: What is the process for conducting a test using this apparatus?

A: To conduct a test, place the powder sample in the holder, set the temperature using the control knob, and activate the power source. The heater passes heat through the sample, and temperature sensors record the data for thermal conductivity calculation.

Q: What are the key benefits of this insulating powder apparatus?

A: Benefits include accurate measurement (1C), robust and durable construction, user-friendly manual operation, and reliable performance across a specified temperature and conductivity range, all of which enhance laboratory productivity.

Q: How does the equipment ensure safety and accuracy during operation?

A: It features durable materials, knob-based temperature control for precision, an indicator lamp for clear status monitoring, and both analog or digital display options to aid in safe, accurate measurements.
