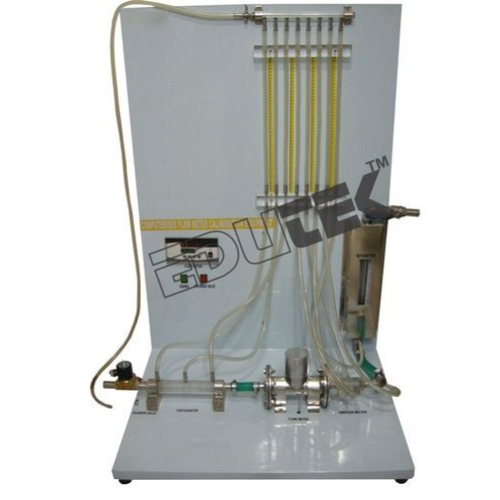

Fundamentals Of Water Flow

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fundamentals Of Water Flow Specification

Power Source
Electric

Feature
Highly Efficient

Automation Grade
Manual

Accuracy
100 % %

Voltage
220 V Volt (v)

Temperature Range
Ambient to 100 C Celsius (oC)

Core Components
Piping, Manometer, Water Tank, Pump

Frequency
50 Hz Hertz (HZ)

Model No

Equipment Materials
Acrylic, Mild Steel and SS304

Type
Educational Model

Usage
Laboratory

Display Type
Analog

Dimension (L*W*H)
1000 x 400 x 700 mm Millimeter (mm)

Manometer Fluid
Water or Mercury (as required)

Pump Type
Centrifugal

Flow Control
Provided with Valves

Application
For Fluid Mechanics Demonstration

Mounting
Table Top

Suitable For
Engineering Institutes and Science Colleges

Tank Capacity
15 Litres

Pipe Diameter
12 mm, 18 mm (subject to experiment)

About Fundamentals Of Water Flow

FUNDAMENTALS OF WATER FLOW

The field of fluid mechanics of incompressible fluids a distinction can be made between pipe flow and open-channel flow. With sufficient pressure and flow velocity in the completely filled pipe, the flow is considered as one-dimensional for reasons of simplicity. Due to this precondition physical phenomena can easily be described and calculated. Open-channel flow in contrast is always multidimensional.

The compact experimental unit enables a variety of experiments on the fundamentals of incompressible flow in open channels and pipes.

A pump supplies water from the storage tank through the supply line into the open channel or the pipe. The flow processes are clearly visible since all parts are made of transparent plastic.

In the pipe section the water flows through an orifice, a Venturi nozzle, a contraction, an enlargement as well as pipe bends and pipe angles of varying diameters. The open channel has a broad-crested weir and a sharp-crested weir. A valve is used to close off or open up the two different working sections.

A pressure sensor is located on the device for differential pressure measurement. This sensor can be connected to the measuring points in the pipe via a hose. The supply line contains a flow rate sensor to determine the flow rate. The measured values are transmitted directly to a PC via USB. The software is included and clearly displays the results of the experiments.

The water level is determined with an electronic water level gauge.

The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments.

Learning Objectives / Experiments

Fundamentals of pipe flow and open-channel flow
Differential pressure measurement at the orifice, Venturi nozzle, pipe bends and pipe
angles, contraction and enlargement
Investigation of weir structures in an open channel in conjunction with the power meter
Recording a pump characteristic

Specification:

Investigation of the fundamentals of different areas of incompressible flow
Closed water circuit with pump
Transparent pipe section and open channel
Experiments on pressure losses at pipe bends and pipe angles, Venturi nozzle, orifice plate
One broad-crested weir and one sharp-crested weir
Horizontally travelling level gauge with vertically travelling probe tip to measure the water levels
Pressure measuring points for differential pressure measurement before and after the respective pipe resistances
Measurement of the power consumption of the pump with power meter
Software with data acquisition via USB under Windows Vista or Windows 7

Technical Data:

Pump, 3 stages
Max. power consumption: 100W
Max. flow rate: 83L/min
Max. head: 6 m

Electronic water level gauge:

Measuring range: 0...200mm
Graduation: 1mm
Travel: max. 205 mm

Measuring ranges:

Differential pressure: 0...600mbar
Flow rate: 3,5...50 L/min

Dimensions and Weight:

LxWxH: 880x580x1020mm
Weight: approx. 48kg

Comprehensive Fluid Mechanics Demonstration

This model allows students and instructors to explore the fundamentals of water flow and pressure measurement using an analog manometer and centrifugal pump. The setups flexibility with pipe diameters and flow control valves makes it ideal for varied experimental scenarios in classroom settings.

Robust Construction and User-Friendly Design

Manufactured with high-quality acrylic, mild steel, and SS304, the equipment ensures durability and longevity. The table-top arrangement and manual controls provide hands-on learning, while the analog display offers real-time, precise readings.

Ideal for Engineering and Science Education

Specially designed for use in engineering institutes and science colleges, this apparatus supports foundational laboratory exercises in fluid mechanics. It enhances conceptual understanding and develops practical skills necessary for future engineers and scientists.

FAQs of Fundamentals Of Water Flow:

Q: How is the Fundamentals Of Water Flow apparatus used in laboratory demonstrations?

A: To use the apparatus, students fill the 15-litre water tank, start the centrifugal pump, and select the desired pipe diameter. Flow rates and pressure differentials are observed using the analog manometer, while valves are used for precise flow control, allowing for a variety of fluid mechanics experiments.

Q: What manometer fluids can be used with this model?

A: The equipment accommodates both water and mercury as manometer fluids, depending on experimental requirements, allowing for versatile pressure measurement.

Q: When should the different pipe diameters be selected during experiments?

A: Pipe diameters of 12 mm or 18 mm can be chosen based on the experimental procedure or flow study being conducted. Instructions for specific experiments will indicate the appropriate diameter to use.

Q: Where is this equipment typically installed and used?

A: This table-top apparatus is mainly set up in engineering laboratories and science college classrooms, enabling hands-on learning and experimentation in controlled academic environments.

Q: What is the benefit of using a centrifugal pump and manual flow control?

A: The centrifugal pump provides a steady and reliable water flow, while manual control valves enable precise adjustments. This combination ensures accurate, repeatable data and a comprehensive understanding of fluid mechanics principles.

Q: How does the analog display help in the learning process?

A: The analog display allows students to visually track water flow rates and pressure changes, making theoretical concepts tangible and easier to grasp during practical demonstrations.

Q: What is the cleaning and maintenance process for this apparatus?

A: Routine maintenance involves draining the water tank, flushing the system, checking the integrity of acrylic and stainless steel components, and ensuring the pump operates smoothly. Proper care ensures longevity and consistent performance.
