Fluid Friction Measurements

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fluid Friction Measurements Specification

Voltage
230 V

Frequency
50 Hz

Capacity
5 Liters

Measurement Range
0100 cm H2O

Automation Grade
Manual

Accuracy
1%

Temperature Range
Ambient to 100C

Core Components
Pump, Manometer, Test Section

Model No
SFI-FFM01

Feature
Corrosion Resistant

Power Source
230 V AC

Equipment Materials
Mild Steel Powder Coted

Type
Fluid teaching lab Equipment

Usage
Laboratory

Display Type
Analog

Dimension (L*W*H)
850 x 600 x 800 mm

Weight
Approx. 20 kg

Fittings
Brass and SS

Pressure Drop
Measurable across test section

Installation
Table Top

Manometer Fluid
Mercury or Water

Connections
Flexible, Leakproof

Pipe Material
PVC

Application
Fluid friction studies and pipe calibration

Pump Type
Centrifugal

Compatible Liquids
Water, Light Oils

Max Flow Rate
10 LPM

Flow Measurement
Direct

Fluid Friction Measurements Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
Piece

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Fluid Friction Measurements

FLUID FRICTION MEASUREMENTS

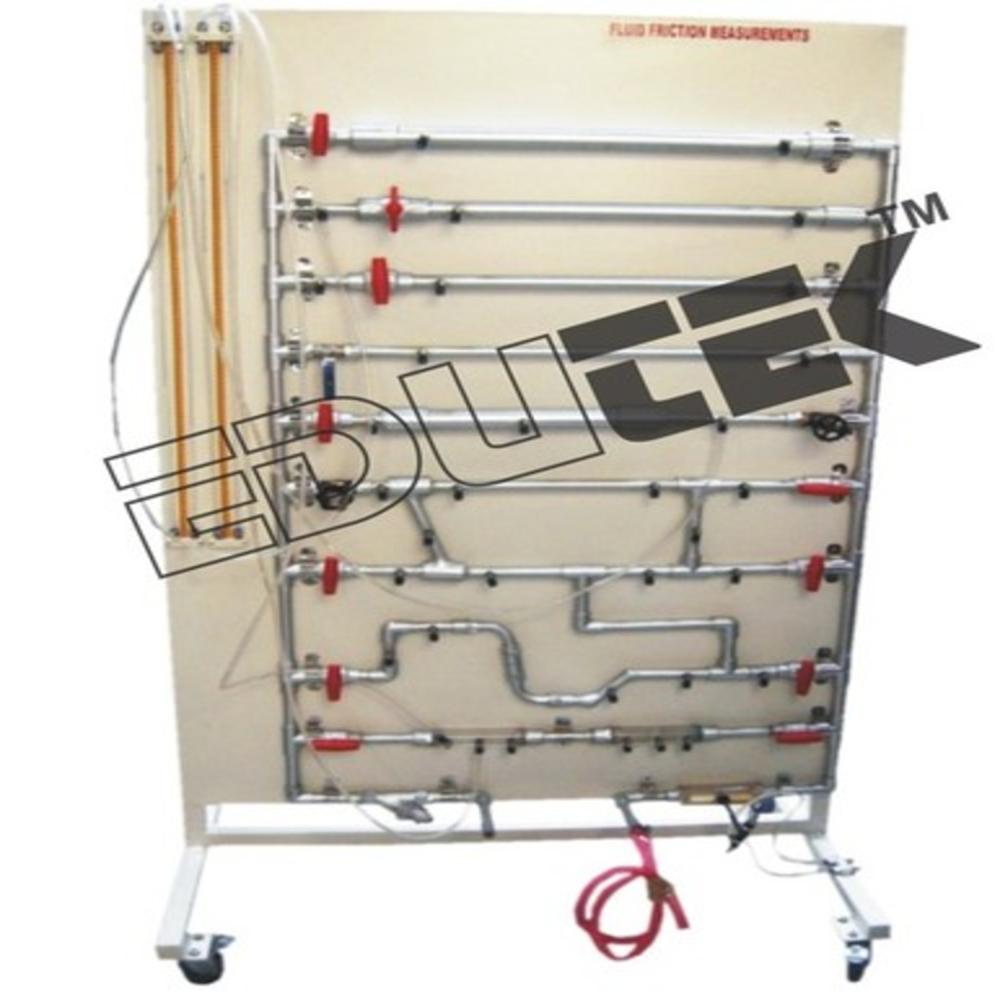

Edutek are manufacturer and Exporter of Fluid Friction Measurement ,Hydraulic Fluid Mechanic Lab for engineering college , Engineering Training Equipment. System is mounted on a supporting rigid structure mounted on

wheels. The flow velocity is measured using Floor Mount Type Parallel Pipes 'T' & 'Y' Junctions Fluid Mechanics: Friction Loss in Pipes Apparatus the calibrated variable area flow meter and the measuring tank of the Hydraulic Bench. A system of parallel pipe network configuration and isolating valves enable tests to be conducted on different pipes without disconnecting or draining the system.

Experiments of Fluid Friction Measurement

Familiarization and training with pressure and fluid flow measurements.
Study of pipe friction at various flow velocities.
Study of pipe friction in laminar and turbulent flows.
Study of effect of surface roughness on friction factor.
Determination of relationship between pipe friction factor and flow Reynolds numbers.
Comparison of measured friction factors with Moody's chart.

Reliable Fluid Friction Measurements

Utilize this laboratory equipment to study fluid friction and pressure drop across pipe sections. It supports both mercury and water manometer fluids and offers versatility in experimental setups thanks to flexible, leak-proof connections. The apparatus is robustly built using mild steel with powder coating, ensuring durability even with frequent academic use.

Versatility for Comprehensive Learning

This device allows users to accurately measure pressure drop and flow rates with a centrifugal pump and analog displays. Students can interchange between brass and stainless steel fittings to observe effects on fluid behavior. Suitable for a variety of compatible liquids and temperatures up to 100C, it provides a practical platform for pipe calibration and hydraulic experimentation.

FAQs of Fluid Friction Measurements:

Q: How is the pressure drop measured in this apparatus?

A: The pressure drop is measured across the test section using a manometer, which can be filled with mercury or water. Analog displays provide clear readings, making pressure changes easy to monitor during experimentation.

Q: What is the process for setting up and conducting fluid friction experiments?

A: To perform an experiment, fill the reservoir with water or light oil (up to 5 liters). Connect the desired pipe section using the leak-proof, flexible fittings. Start the centrifugal pump and adjust the flow up to the maximum rate of 10 LPM. Observe the manometer and analog display to record pressure drops and flow measurements.

Q: When should calibration of the equipment take place?

A: Calibration is recommended before initial use, after maintenance, or if any readings appear inconsistent. Regular calibration ensures the accuracy of both flow and pressure measurements, which is vital for reliable laboratory results.

Q: Where can this fluid friction measurement system be installed?

A: The setup is specifically designed as a table-top unit, making it ideal for laboratory environments found in educational institutions, research labs, or calibration facilities. Its compact dimensions (850 x 600 x 800 mm) make it suitable for standard lab benches.

Q: What are the main benefits of using this equipment in a teaching laboratory?

A: This apparatus provides hands-on experience with core fluid mechanics concepts such as pressure drop, pipe friction, and calibration. Its durable, corrosion-resistant design ensures longevity, while the systems accuracy and safety features make it a reliable educational tool.

Q: Which liquids are compatible with the measurement setup?

A: The equipment works efficiently with water and light oils, enabling a variety of fluid dynamics experiments in the specified temperature (ambient to 100C) and flow range.
