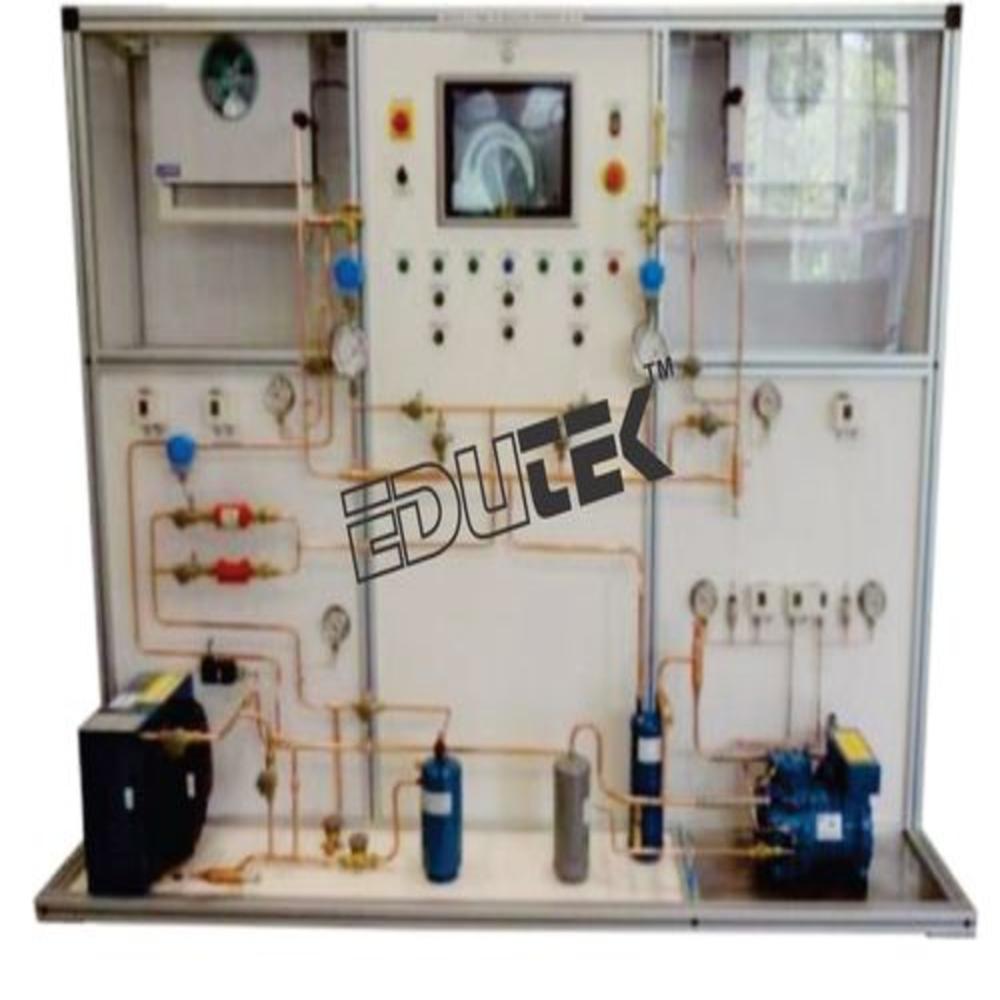

Electrical Faults In Simple Air Conditioning Systems

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Electrical Faults In Simple Air Conditioning Systems Specification

Dimension (L*W*H)
900x400x650 Millimeter (mm)

Warranty
1 year

Weight
30 Kilograms (kg)

Feature
Highly Efficient

Accuracy
100 %

Type
ELECTRICAL FAULTS IN SIMPLE AIR CONDITIONING SYSTEMS

Usage
Laboratory

Display Type
Analog

About Electrical Faults In Simple Air Conditioning Systems

ELECTRICAL FAULTS IN SIMPLE AIR CONDITIONING SYSTEMS

Identifying electrical faults in air conditioning systems requires comprehensive knowledge This knowledge includes the design and operation of the individual electrical components as well as the reading of circuit diagrams. Helps to acquire this knowledge.

Demonstrates the electrical circuit of a simple air conditioning system, consisting mainly of a refrigerant compressor and fan at the air cooler. The control circuits are actually present.

Compressor and fan motor are simulated. The compressor is controlled via a thermostat. Via a ballast the fan motor speed can

be switched in two stages. The start of the compressor motor takes place via a start-up relay and start-up capacitor. Typical

protection devices, such as circuit breaker, complete the electrical circuit. The operating state of the simulated components compressor and fan is indicated via lamps in the circuit diagram on the front panel. The simulation of 15 different faults, such as coil fracture in the motor or faulty switching contact, is possible. For fault indication, voltages and resistances are checked at the lab jacks with the multimeter. The depiction of the circuit diagram on the front panel facilitates the allocation of the

measuring points.

The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments.

Learning Objectives / Experiments

Electrical design and principle of operation of
Simple air conditioning systems
Read and understand electrical circuit diagrams
Design and operation of electrical components in
An air conditioning system
Start-up capacitor
Start-up relay
Overheat protection
Main contactor
Automatic fuse
On/off switch
Speed switch
Thermostat
Fault finding in electrical components
In idle state
Under mains voltage

Specification

Experimental unit from the practical series for the training of mechatronics engineers for refrigeration
Simulation of the electrical circuit of a simple air conditioning system for cooling
Real control circuits with electrical components, simulated load circuits
Electrical simulation of compressor and fan
Temperature control with thermostat and compressor
Fan with 2 adjustable speeds
Operating states of the simulated components indicated via lamps in the circuit diagram
Circuit diagram depicted on the front panel
Identification of 15 faults: multimeter measures voltages or resistances at the lab jacks

Technical Data

Simulated compressor
Start-up current: > 3A
Electrical components for the compressor
Start-up capacitor
Start-up relay
Overheat protection (bimetallic)
Electrical components for the fan
On/off switch
Speed switch
Thermostat: -5...35°C
General safety devices
Main contactor
Automatic fuse

Dimensions and Weight

LxWxH: 900x400x650mm
Weight: approx. 30kg

Comprehensive Laboratory Learning Unit

Designed specifically for laboratories, this system enables users to identify and resolve electrical faults typically found in air conditioning systems. It offers tangible, practical experience for students and technicians, promoting hands-on understanding of key troubleshooting techniques.

Accurate and Efficient Diagnostics

With a 100% accuracy guarantee, users can confidently rely on the systems results during diagnostics. The analog display provides clear, real-time readings, ensuring that every error and measurement is captured precisely for effective analysis.

Robust Build, Backed By Warranty

The unit features a sturdy construction and manageable weight, making it convenient for laboratory settings. Manufactured in India, it includes a 1-year warranty for added assurance, and is distributed by experienced exporters, manufacturers, and suppliers.

FAQs of Electrical Faults In Simple Air Conditioning Systems:

Q: How is this system used in laboratory environments?

A: This unit is primarily used in laboratories to simulate and diagnose electrical faults in simple air conditioning systems. It allows students and trainees to safely practice identifying and correcting issues in a controlled setting.

Q: What makes the system highly efficient and accurate?

A: The system integrates precision components and straightforward analog displays, achieving a remarkable 100% accuracy in fault detection and system analysis. Its efficient design ensures reliable results every time.

Q: When should I consider using this equipment?

A: The unit is ideal for classrooms, technical training centers, or research labs needing hands-on practice with air conditioning electrical fault detection. It is most beneficial during practical sessions for troubleshooting exercises.

Q: Where is the system manufactured and available?

A: This electrical faults demonstration unit is manufactured in India and is available through reputable exporters, manufacturers, and suppliers. It can be sourced nationally and internationally according to institutional requirements.

Q: What is the general process for diagnosing faults using this system?

A: Users follow step-by-step procedures like introducing typical faults, observing reactions through the analog display, and employing diagnostic tools to identify and correct issues, mimicking real-life troubleshooting scenarios.

Q: What benefits does this product offer academic and training institutions?

A: Institutions benefit from its practical training capabilities, robust construction, and ease of operation. Students gain confidence and skill in diagnosing electrical issues, enhancing job readiness for the HVAC sector.
