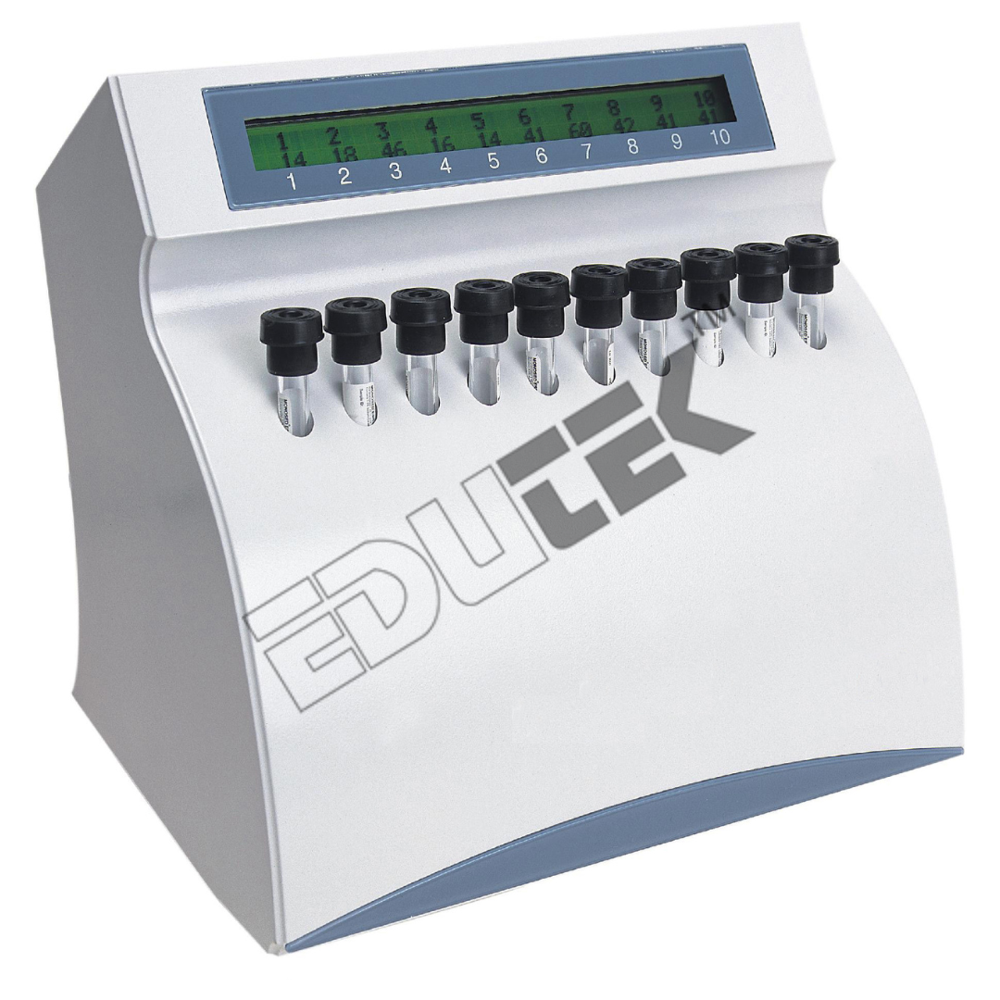

ESR ANALYZER

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ESR ANALYZER Specification

Dimension (L*W*H)
400mm x 280mm x 350mm

Power
50W

Weight
Approx. 7.5 kg

Voltage
220V AC, 50Hz

Usage
Measurement of Erythrocyte Sedimentation Rate in blood samples

Classification
Automated Laboratory Instrument

Color
White / Grey

Application
Clinical Diagnostics, Hematology Analysis

Product Type
ESR Analyzer

Material
High-grade ABS Plastic, Metal Components

Capacity
Up to 40 tubes

Operate Method
Fully Automated / Microprocessor Controlled

ESR ANALYZER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About ESR ANALYZER

ESR ANALYZER ETA-38

Features:

Smart Technology

Modern Infra Red microtechnology.
Robust performance & greater efficiency.
Real time detection of specimens.
Real time measurement and reporting of results.
Temperature compensation.
Automatic compensation referred to 18 C (Manley).
Modified Westergren ESR result in m0m/hr (by interpolation).

Complete flexibility

Random access anlyzer.
Use any open chamber to automatically measure, time and report result.
Provides convenience and flexibility to run tests at anytime and in any order.
No batching of sample.
Each reading chamber individually timed for results.

Quality and Reliability of Results

Reliability of Results.
Good correlation to 1 hour modified Westergren method.
Excellent reproducibility (CV of 5%).
Accuracy and Consistency of Results.

Productivity Advantage

Measuring time : 30 minutes.
20 tests per hour.
Optimization of Lab Workflow Network capability.
Data Management Software (DMS**) for easy management.
Compact size desktop analyzer thus minimal space required.

Advanced features

Graphical printout of results, if it is connected to a
Stylus Printer* (which is optional).

Safety of Handling

Reduced contact with potentially infectious and hazardous blood specimen
Completely Closed Analysis System (while using Vacuum ESR tube for testing) prevents the user from potentially hazardous blood specimen.

Ease of Use

Easy Start up.
Simply plug into an on- line UPS and start testing.
No training required : No special expertise required.
Fully automated.
Auto start of measurement.
Quick Turn-around time : Easy set up of tests.
Add specimen to tube.
Place tube in analyzer.
Results within 30 minutes.

High-Precision ESR Measurement

Utilizing advanced infrared detection, the ESR ANALYZER ensures accurate erythrocyte sedimentation assessments. The fully automated, microprocessor-controlled system streamlines laboratory workflows by delivering consistent results with high reliability. Calibration can be performed automatically or manually, supporting quality control in clinical diagnostics.

User-Centric Features and Flexibility

The instruments LCD digital display, multi-language menu, and selectable reading times (30 or 60 minutes) provide adaptability for diverse laboratory needs. Automatic temperature control and comprehensive alarm systems for errors and test completion enhance user experience and operational safety.

Versatile Data Management

Internal memory stores up to 1000 results, while data can be exported through RS232 and USB interfaces, supporting seamless integration with laboratory information systems. This capability ensures efficient record-keeping and traceability of hematology results.

FAQs of ESR ANALYZER:

Q: How does the ESR Analyzer operate to measure erythrocyte sedimentation rate?

A: The analyzer measures ESR in whole blood samples using infrared detection, providing results after 30 or 60 minutes as selected. It automatically controls temperature and processes up to 40 Westergren tubes, ensuring accurate and standardized readings.

Q: What sample types and tubes are compatible with the ESR Analyzer?

A: The analyzer accepts whole blood samples collected in EDTA or citrate and is designed for compatibility with Westergren tubes, ensuring it meets the most common laboratory protocols for ESR testing.

Q: When should calibration of the ESR Analyzer be performed?

A: Calibration can be conducted either automatically or manually as required by laboratory standards. Regular calibration is recommended to maintain optimal accuracy, especially following maintenance or relocation of the instrument.

Q: Where can the ESR Analyzer be used within a clinical or laboratory environment?

A: This instrument is suitable for use in clinical diagnostic laboratories, hematology departments, or any healthcare facility requiring routine ESR measurement. Its compact build and reliable performance make it ideal for centralized and decentralized lab settings.

Q: What is the process for exporting data from the analyzer?

A: Results can be exported through the RS232 interface or via USB. The internal storage accommodates up to 1000 results, enabling efficient data management and connectivity with laboratory information systems.

Q: How do the alarm and temperature control systems benefit laboratory workflow?

A: The automatic temperature control maintains optimal test conditions, while error and completion alarms notify users of any issues or test completion, thus improving workflow efficiency and laboratory safety.

Q: What are the key benefits of using this fully automated ESR Analyzer?

A: Key benefits include high accuracy (1 mm/hr), efficient operation with up to 40 tubes, versatile data management options, user-friendly interface with multi-language support, and robust construction, making it a reliable choice for high-throughput laboratories.
