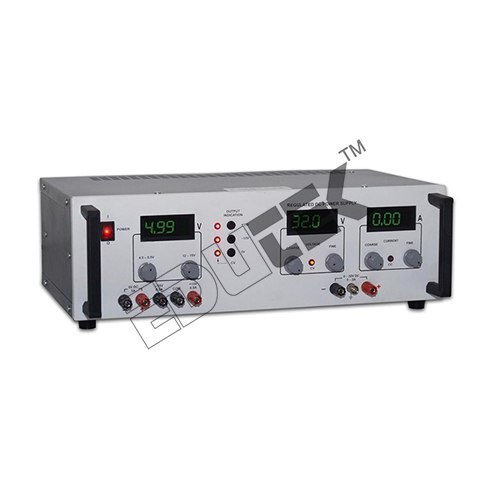

DC REGULATED POWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC / 100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS)

Send Inquiry

Request To Call Back

DC REGULATED POWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC / 100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS)

Name: DC REGULATED POWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC / 100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS)
Brand: EDUTEK INSTRUMENTATION
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DC REGULATED POWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC / 100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS) Specification

Power Supply
Power requirement:220 VAC +10%, 50 Hz

Features
CC/CV indication

Components
DC REGULATEDPOWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC /100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS)

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Product Type
DC REGULATED POWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC / 100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS)

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Warranty
1 Year

DC REGULATED POWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC / 100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash on Delivery (COD), Cash Advance (CA), Cheque, Letter of Credit at Sight (Sight L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Africa, Asia, Middle East

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DC REGULATED POWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC / 100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS)

Specification:

DC REGULATEDPOWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC /100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS)

High accuracy,high stability

Overload& short circuit protection

Allow full-scalelong-time operation

CC/CV indication

Voltage and currentcontinuously variable within nominal Value

Technical Specifications:

Channel 1

OutputVoltage: 06VDC

Output Current:100mA2A

Channel 2

Output Voltage:032VDC

Output Current:100mA2A

Channel 3

Output Voltage:0 15VDC (Tracking Mode)

Output Current:100mA "1A

Source Regulation:0.05%

Load Regulation:0.05%

Ripple &Noise: 1mV (rms)

Recovery time:50ms

Digital Display:3-digit display for voltage & current

Accuracy: +1%,+1 Digit

Power requirement:220 VAC +10%, 50 Hz

Versatile Power Outputs for Engineering Needs

This multiple-output power supply caters to a broad range of electronics engineering applications. With three independent channels offering variable voltages and currents, users can simultaneously test and power multiple circuits, ideal for laboratory or prototyping work.

Precise Control and Safety Features

Equipped with Constant Current (CC) and Constant Voltage (CV) indication, the supply provides accurate regulation. These features protect sensitive components and offer clear status, minimizing the risk of overloading and ensuring optimal safety during use.

Dependable Indian Manufacturing and Support

Manufactured, exported, and supplied from India, this power supply meets industry standards and is backed by a 1-year warranty. It is tailored for engineering environments, with responsive support and quality assurance.

FAQ's of DC REGULATED POWER SUPPLY MULTIPLE OUTPUT (CH 1: 0-6VDC / 100MA-2AMPS, CH 2: 0-32VDC / 100MA-2AMPS, CH 3: 0-+15VDC / 100MA-1AMPS):

Q: How do I use this DC regulated power supply for electronics engineering experiments?

A: To use this power supply, select the desired channel based on your voltage and current requirements. Adjust output controls for precise settings, ensuring you operate within the specified ranges. Connect your device or circuit to the corresponding channel and monitor the CC/CV indicators for optimal operation.

Q: What benefits does the CC/CV indication provide during operation?

A: The CC/CV indication allows users to easily identify when the power supply is operating in constant current or constant voltage mode. This ensures safe operation of your circuits, protects sensitive components from over-current conditions, and enables accurate testing.

Q: When should I choose each output channel for my application?

A: Use CH 1 (0-6VDC, 2A max) for low-voltage needs, CH 2 (0-32VDC, 2A max) for variable higher voltage applications, and CH 3 (0-15VDC, 1A max) for powering symmetrical or dual-rail circuits such as operational amplifiers. Select the channel that best matches your circuit's requirements.

Q: Where is this power supply manufactured and who can use it?

A: This DC regulated power supply is manufactured, exported, and supplied in India. It is designed for use in engineering colleges, R&D labs, and industrial electronics departments by students, educators, researchers, and engineers.

Q: What is the process for warranty support if the unit develops a fault?

A: If a fault occurs within the 1-year warranty period, contact the supplier or manufacturer with the purchase details. They will provide instructions for troubleshooting, repair, or replacement according to warranty terms.

Q: How does this power supply contribute to efficient electronics prototyping?

A: With its multiple independent outputs and reliable regulation, the power supply allows simultaneous powering of different circuits, speeding up testing and development. The precision and safety indicators reduce errors, making it ideal for efficient prototyping and experimentation.
