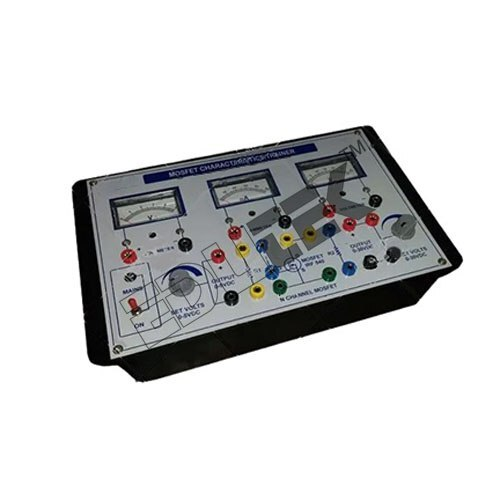

MOSFET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MOSFET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Power Source
ELECTRICAL

Power Supply
ELECTRICAL

Product Type
MOSFET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Warranty
1 YEAR

Frequency
50 Hertz (HZ)

MOSFET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash on Delivery (COD)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About MOSFET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Specification:

MOSFET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Technical Specifications:

Inbuilt Variable DC regulated power supplies

Output Voltage: 0-5VDC, 0-25VDC

On Board Square Meters: (60 x 35 mm)

Voltmeters: 0-5VDC, 0-25VDC

Ammeter: 0- 5 mADC / 0-25mADC (Dual Range)

High quality aluminum panel

Power: 230 VAC 10%, 50Hz.

Weight: 2.0Kg Approx.

Dimensions (mm): 330(L) x 225(B) x 75(H)

Designed for Engineering Excellence

The MOSFET Characteristics Apparatus is purpose-built for engineering education and research tasks. Its robust construction ensures longevity, while integrated meters allow precise analysis of MOSFET's electrical parameters. This apparatus is a trusted choice for academic institutions and research labs seeking accurate experimental tools for electronic instrumentation.

User-Friendly and Reliable Operation

With its aluminum panel and intuitive layout, this apparatus enables straightforward experimentation. Operating on standard 50 Hz electrical input, students and professionals can conduct safe and effective experiments. The included warranty and dependable power supply underscore its reliability, making it a staple for engineering electronics courses and laboratory demonstrations.

FAQ's of MOSFET CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS:

Q: How is the MOSFET Characteristics Apparatus used in engineering electronics laboratories?

A: The apparatus is primarily used for analyzing and demonstrating the characteristics of MOSFETs in academic and research settings. Students and engineers connect it to electronic circuits to observe input-output relationships, gain practical understanding, and validate theoretical concepts in real-time.

Q: What makes the apparatus suitable for institutional and professional use?

A: Its durable aluminum panel, integrated square meters, and operation at 50 Hz ensure long-lasting performance and easy data monitoring. The design supports repeated laboratory use, making it ideal for academic courses and professional training programs in electronics.

Q: When should the apparatus be deployed during an electronics course?

A: The MOSFET Characteristics Apparatus is best introduced during modules covering semiconductor devices, analog electronics, or any section involving transistor behavior. It enables hands-on experimentation once foundational circuit theory has been taught.

Q: Where is this apparatus manufactured and supplied?

A: This apparatus is proudly manufactured, exported, and supplied from India. The manufacturer acts as a reliable partner to academic and industrial institutions across the globe, ensuring quality and timely delivery.

Q: What is the installation and setup process for the apparatus?

A: Installation simply requires connecting the device to a standard electrical outlet, as it operates at 50 Hz. The intuitive controls and clearly labeled meters ensure minimal setup time, enabling immediate use for electronics experiments and observations.

Q: What are the practical benefits of using this apparatus?

A: The main benefits include in-depth learning through hands-on measurement of MOSFET properties, durable construction for repeated use, and accurate readings from built-in meters. These features support educational outcomes and foster technical skills development.

Q: Does the apparatus come with a warranty, and what does it cover?

A: Yes, the MOSFET Characteristics Apparatus comes with a 1-year warranty, which covers manufacturing defects and ensures reliable after-sales support for institutions and users.
