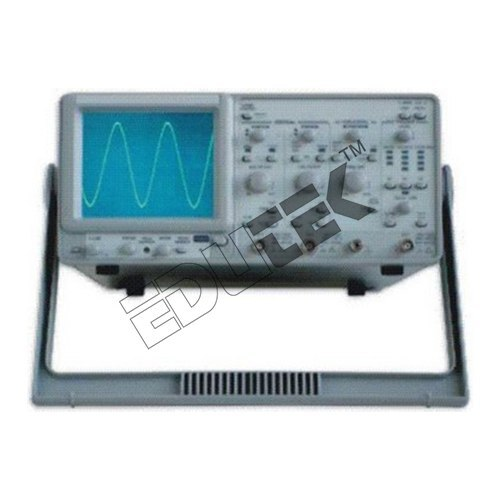

CRO 20MHZ, DUAL CHANNEL, 2 TRACE

Name: CRO 20MHZ, DUAL CHANNEL, 2 TRACE
Brand: EDUTEK INSTRUMENTATION
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CRO 20MHZ, DUAL CHANNEL, 2 TRACE Specification

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Power Supply
ELECTRICAL

Power Source
ELECTRICAL

Product Type
CRO 20MHZ, DUAL CHANNEL, 2 TRACE

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Usage & Applications
ENGINEERING ELECTRONICS EQUIPMENTS

Warranty
1 YEAR

Frequency
50 Hertz (HZ)

CRO 20MHZ, DUAL CHANNEL, 2 TRACE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About CRO 20MHZ, DUAL CHANNEL, 2 TRACE

Specifications:

CATHODE RAY OSCILLOSCOPE(CRO)

20 MHz bandwidth, dual channel.

Sets memory for front panel settingsave & recall.

Cursor readout with 7 measurements.

Panel setup lock of digital-controlfunctions.

SMD technology, high stability andreliability.

VerticalSystem:

Bandwidth: DC-20 MHz.

Sensitivity: 2mV/DIV-5V/DIV, 11 stepsin 1-2-5 sequence.

Rise time: 3.5ns.

Vertical mode: CH1, CH2,DUAL(CHOP/ALT), ADD, CH2 INV

Comprehensive Waveform Analysis

Equipped with dual channels and two traces, this CRO enables users to analyze and compare two electronic signals simultaneously. Its 20 MHz frequency bandwidth ensures accurate measurements for a wide range of engineering tasks, bolstering productivity and understanding in research and teaching environments.

Electrical Compatibility and Ease of Use

The oscilloscope operates efficiently on a standard 50 Hz electrical supply, making it suitable for typical laboratory and workshop setups. Its user-friendly interface allows both beginners and professionals in engineering electronics to manage complex testing procedures with confidence.

Trusted Quality with Warranty

Manufactured in India by established exporters and suppliers, the CRO 20MHz Dual Channel oscilloscope comes with a 1-year warranty. This coverage provides peace of mind, ensuring prompt support and service for any operational issues during the warranty period.

FAQ's of CRO 20MHZ, DUAL CHANNEL, 2 TRACE:

Q: How do I operate the CRO 20MHz Dual Channel oscilloscope for electronics experiments?

A: To use the CRO, connect the probes to the input channels and power it on using a 50 Hz electrical supply. Adjust the vertical and horizontal settings to display and examine the waveforms of your electronic circuits. The dual channels allow you to compare two signals simultaneously.

Q: What are the main benefits of using this CRO in engineering electronics applications?

A: The CRO provides precise real-time visualization of signal behavior, allowing users to diagnose, analyze, and compare electronic circuits effectively. Its dual-channel capability enhances testing efficiency, making it ideal for engineering labs, educational institutions, and equipment maintenance.

Q: When should the CRO 20MHz Dual Channel be calibrated or serviced?

A: It is recommended to calibrate the CRO annually or if you notice any irregularities in waveform display. Proper maintenance ensures measurement accuracy and prolongs the instrument's operational lifespan.

Q: Where is the CRO 20MHz Dual Channel oscilloscope manufactured and supplied from?

A: This oscilloscope is manufactured and supplied from India by renowned exporters, manufacturers, and suppliers who cater to engineering electronics equipment needs worldwide.

Q: What is the process for claiming the 1-year warranty on this CRO?

A: To claim the 1-year warranty, contact the supplier or manufacturer with your purchase details and a description of the issue. They will provide support, repair, or replacement as per warranty terms.

Q: How is the electrical power supplied to the CRO 20MHz Dual Channel?

A: The OSC operates on a standard electrical power supply with 50 Hz frequency. Ensure that the device is connected to an appropriate electrical outlet to guarantee safe and reliable operation.

Q: In which applications can this oscilloscope be effectively utilized?

A: This CRO is ideal for use in engineering electronics equipment testing, circuit analysis, educational demonstrations, and laboratory research, providing versatile and dependable signal measurement.
