Consolidation Apparatus Floating Ring Type

Send Inquiry

Request To Call Back

Consolidation Apparatus Floating Ring Type

Price 1500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Consolidation Apparatus Floating Ring Type Specification

Operate Method
Incremental Loading: Loads are applied; readings of settlement are taken at specific time intervals until consolidation is complete for each load stage

Color
Select (Typically Green/Grey Frame)

Classification
Geotechnical Engineering / Soil Mechanics Testing

Usage
Accurate prediction of foundation settlement over time, especially for highly compressible soils

Power Source
Not Required (Manual)

Model No
Floating Ring Type Consolidation Apparatus

Core Components
Floating Ring Assembly, Consolidation Cell, Loading Frame, Water Reservoir, Weights

Material
Steel, Brass, Precision Components

Product Type
Soil Settlement Tester / Compressibility Tester

Application
Civil Engineering, Geotechnical Labs, Research Facilities

Capacity
Through standard consolidation cell (typical: 60 mm dia sample size) Pcs/hr

Accuracy
100 % %

Automation Grade
Manual

Temperature Range
Ambient Celsius (oC)

Measurement Range
0 - 10 mm (Dial Gauge Travel)

Frequency
Not Applicable (Manual Operation) Hertz (HZ)

Feature
Highly Efficient

Equipment Materials
Mild Steel with corrosion-resistant finish; Stainless Steel components for contact parts

Type
Floating Ring Type

Display Type
Dial Gauge (Analog)

Dimension (L*W*H)
Approx. 500 x 250 x 400 mm Millimeter (mm)

Weight
Approximately 25-30 kg (assembled base unit with accessories) Kilograms (kg)

Plunger Diameter
50 mm (standard for 60 mm consolidation cell)

Pressure Range
Up to 1 kg/cm² (or as per configuration)

Water Reservoir Capacity
500 ml approx.

Maximum Load
Up to 10 kg (expandable with added weights)

Frame Construction
Rigid, powder-coated steel

Dial Gauge Least Count
0.01 mm

Loading Arrangement
Hanger system with calibrated weights

Accessory Kit
Filter papers, cutting ring, weights, stand included

Assembly Type
Bench-top, easy to assemble and disassemble

Specimen Size
60 mm dia x 20 mm height (standard); other sizes optional

Complies With
IS 2720 (Part XV), ASTM D2435

Finish
Painted/Powder-coated for rust prevention

Cell Construction
Corrosion-resistant, stainless steel base and rings

Application
Determining settlement and consolidation characteristics of soils under static loads

About Consolidation Apparatus Floating Ring Type

Consolidation Apparatus Floating Ring Type

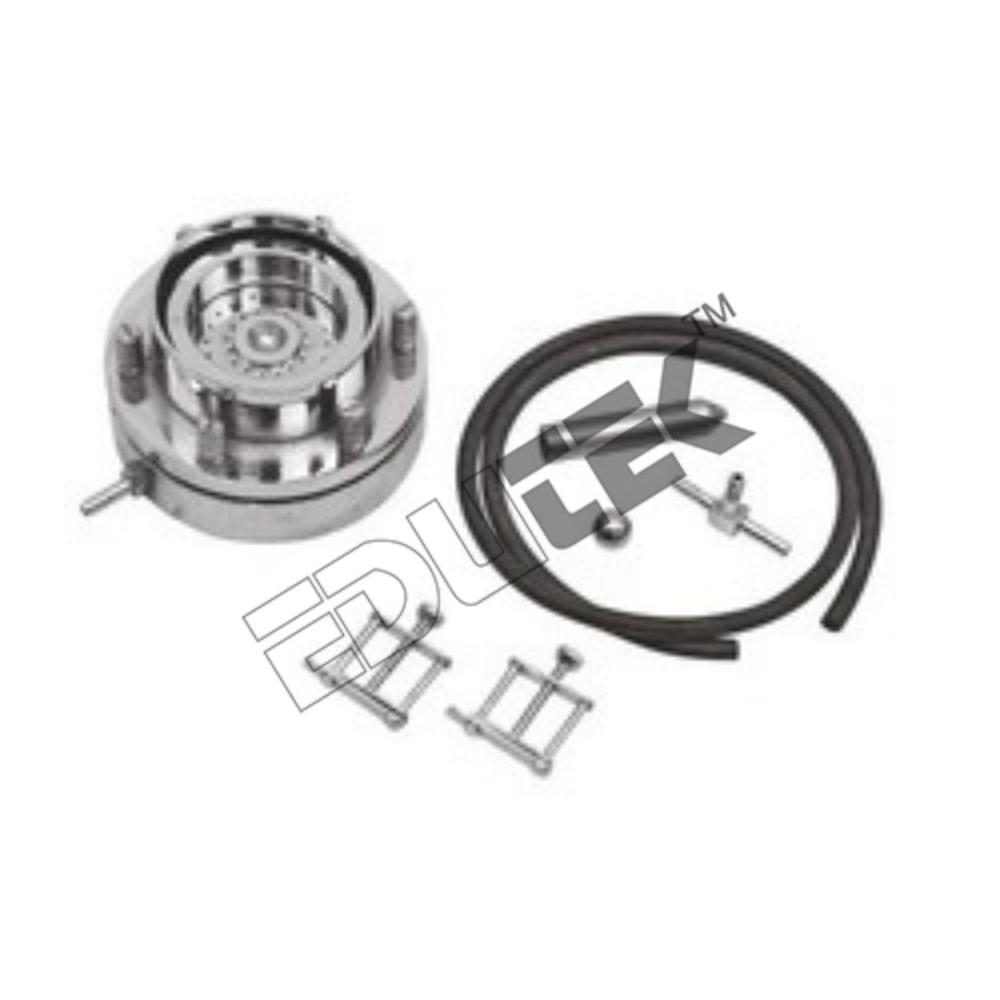

Water trough Floating ring type of Consolidometer (Odeometer) cell assembly for 60mm dia x 20mm thick specimens complete with floating ring with two guide rings, pair of porous stones, pressure pad and cutting collar. Set of weights to give a pressure of 10kg/cm. sq. on 60mm dia specimens. Floating ring type of Consolidometer (Odeometer) cell assembly for 50mm dia x 20mm thick specimens complete with accessories as above. Set of weights to give a pressure of 10kg/cm. sq. On 70mm dia specimen. Floating ring type of Consolidometer (Odeometer) cell assembly for 100mm dia x 25mm thick specimens complete with accessories as above. Set of weights to give a pressure of 10kg/cm. sq. On 100 mm dia specimen. Additional set of weights for loading up to 20kg/ sq. cm. Set of weights to give a pressure of 10kg / sq. cm. On a 60mm dia specimen comprising 10 off 1.0kg/ sq. cm.

Set of weights to give a pressure of 10kg / sq. cm. On a 50mm dia specimen comprising 10 off 1.0kg/ sq. cm. Set of weights to give a pressure of 10kg / sq. cm. On a 70mm dia specimen comprising 10 off 1.0kg/ sq. cm.Set of weights to give a pressure of 10kg / sq. cm. On a 100mm dia specimen comprising 10 off 1.0kg/ sq. cm.Pair of top & bottom porous stones for 50mm dia cellPair of top & bottom porous stones for 60mm dia cellPair of top & bottom porous stones for 70mm dia cellPair of top & bottom porous stones for 100mm dia cell

Comprehensive Soil Analysis
This apparatus enables thorough evaluation of soil consolidation and settlement behavior, crucial for foundational engineering. By simulating static load conditions, it delivers vital data to inform structural design and soil suitability, ensuring that construction on tested soil is both safe and reliable.

User-Friendly and Durable Construction
With a powder-coated rigid steel frame and corrosion-resistant stainless steel cell components, the device is built for longevity in laboratory settings. The apparatus is easy to assemble or disassemble on a bench-top, making it extremely suitable for academic, research, and industrial labs focused on geotechnical studies.

Accurate and Standard-Compliant Testing
Equipped with a precise analog dial gauge (0.01 mm least count) and a reliable floating ring mechanism, this consolidation apparatus meets international and national standards IS 2720 (Part XV) and ASTM D2435. Calibration and included accessories ensure consistent, reproducible measurements for scientific and commercial soil analysis.

FAQs of Consolidation Apparatus Floating Ring Type:

Q: What is the main application of the Floating Ring Type Consolidation Apparatus?

A: This apparatus is used to determine the settlement and consolidation characteristics of soils under static loading, primarily for geotechnical engineering and construction foundation analysis.

Q: How do I operate the consolidation equipment and measure soil consolidation?

A: Place the prepared soil specimen (typically 60 mm dia x 20 mm height) in the consolidation cell, apply loads using the hanger and calibrated weights, and measure vertical displacement with the supplied dial gauge. Water from the reservoir ensures proper saturation during the test.

Q: What accessories are included with the apparatus?

A: An accessory kit is included, featuring filter papers, a cutting ring, additional calibrated weights, and a stable stand, ensuring you have all essentials for conducting standard soil consolidation tests.

Q: What regulations and standards does this apparatus comply with?

A: The apparatus conforms to IS 2720 (Part XV) and ASTM D2435 standards, making it suitable for both national and international geotechnical laboratory testing requirements.

Q: Where is this apparatus typically used?

A: This consolidation apparatus is widely utilized in civil engineering laboratories, construction and soil testing companies, research institutions, and educational facilities across India and abroad.

Q: What are the benefits of the floating ring design over fixed ring types?

A: The floating ring design reduces side friction and ensures more uniform stress distribution across the specimen, resulting in more precise consolidation data and enhanced reliability of test results.
