Compression Testing Machine

Get a Price/Quote

Compression Testing Machine Specification

Accuracy
1% of indicated value

Core Components
Hydraulic Pump, Digital Display Unit, Pressure Gauge

Voltage
220 V AC

Power Source
Electric

Frequency
50 Hz

Feature
High Accuracy, Rigid Construction, User Friendly Interface

Automation Grade
Semi-Automatic

Temperature Range
0C to 60C

Model No
CTM-2000D

Capacity
2000 kN

Measurement Range
0-2000 kN

Equipment Materials
Mild Steel Body, Hard Chrome Plated Piston

Type
Compression Testing Machine

Usage
Used for Testing Compressive Strength of Concrete Cubes & Cylinders

Display Type
Digital

Dimension (L*W*H)
950 mm x 600 mm x 1200 mm

Weight
Approx. 350 kg

Compression Testing Machine Trade Information

Payment Terms
Cash on Delivery (COD), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Australia, North America, South America, Eastern Europe, Middle East, Western Europe, Africa, Central America, Asia

Main Domestic Market
South India, North India, East India, Central India, All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Compression Testing Machine

Compression Testing Machine

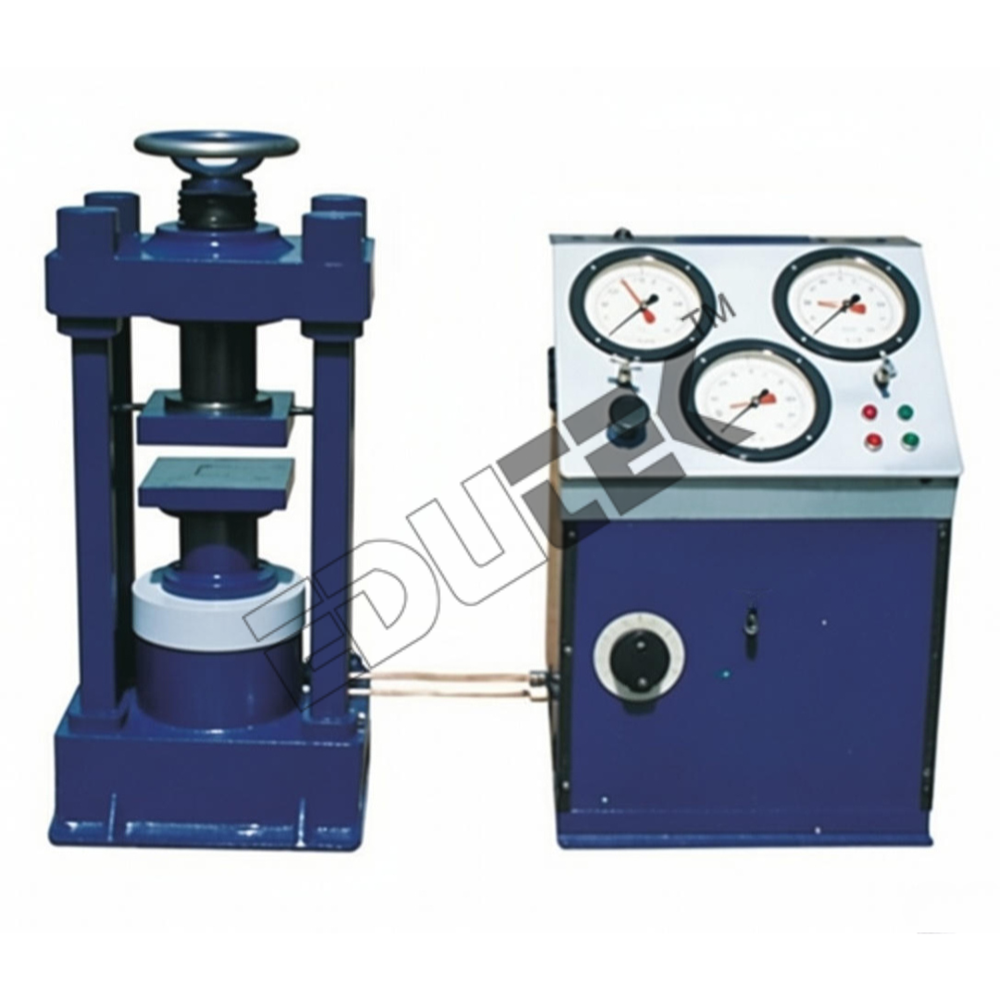

Compression Testing Machine (Four Pillar Nut Model)Hand cum Electrical Operated

The load frame is made up of high quality steel construction with a fixed. Upper lead carrying a ball seated platen. 4 pillars are fixed to the base and the top plate of the loading frame. The upper and lower plates are adjusted with the help of head screw on either side of the pillar. The ram dia of the machine varies from the requirements of the customer. The lower pattern are at the base of the frame above the ram and it is rectangular in shape. Sufficient clearance is provided between the platens to fit in the cylindrical/ cube moulds. Spacer provided to adjust cubes and cylinders. A 20 cm dia pressure gauge with maximum load induction pointer is fitted on the top panel and in turn is connected to the hydraulic pressure pipe. On the right hand a console is fitted within which the electrical motor is fitted alongwith its coupling which inturn is connected to the pumping unit. A slow / fast loading rate regulator fixed on the top of the console for adjusting the rate of loading. The machine is duly calibrated and passed after inspecting and analyzing it with a compression level indicator is provided as a dip stick. Optional :1. Extra gauges can be attached to the machine (max. 3nos.), for better accuracy and results.2. Electrical connection can either be Single Phase on 220 V A.C. or Three Phase 440 V A.C.3. Rectangular plates of various sizes on request.

Ultimate Accuracy and Robust Construction

Equipped with a digital display and a precision pressure gauge, the machine ensures highly accurate readings (1% of the indicated value). The rigid construction utilizing mild steel and a hard chrome-plated piston supports heavy-duty testing requirements, while the high-capacity 2000 kN ram allows for a broad range of test samples.

User-Centric Operation and Safety Features

This semi-automatic machine is designed for ease of use, featuring intuitive digital controls and clear readouts. Overload protection is incorporated to safeguard both operator and equipment, and a powder-coated finish offers enhanced corrosion resistance for long service life even in demanding environments.

FAQs of Compression Testing Machine:

Q: How does the CTM-2000D Compression Testing Machine operate?

A: The machine uses a hydraulically operated, motorized pump to apply compression to concrete cubes or cylinders placed between its platens. Load readings are digitally displayed, while the systems overload protection ensures safe and reliable operation.

Q: What materials and specimens can be tested with this machine?

A: The CTM-2000D is primarily designed to test the compressive strength of concrete cubes and cylinders, making it ideal for civil engineering labs, construction quality control, and research settings.

Q: When should I use this machine for compression testing?

A: This compression testing machine should be used during construction or material development phases when verifying the compressive strength of concrete samples is necessary to ensure compliance with relevant standards and safety measures.

Q: Where is this machine commonly utilized?

A: It is widely used in research laboratories, construction quality control departments, cement plants, and educational institutions for reliable compressive strength testing of concrete specimens.

Q: What are the key benefits of using this model?

A: The CTM-2000D provides high accuracy, robust construction, rapid test cycles, and a user-friendly interface. Its built-in safety features and digital readout contribute to both safety and operational efficiency.

Q: How should the samples be prepared and placed in the machine?

A: Prepare concrete specimens according to standard dimensions. Position the sample centrally between the machine platens. Adjust clearances as needed by utilizing up to 360 mm of vertical space, then commence the test using the hydraulic controls.
