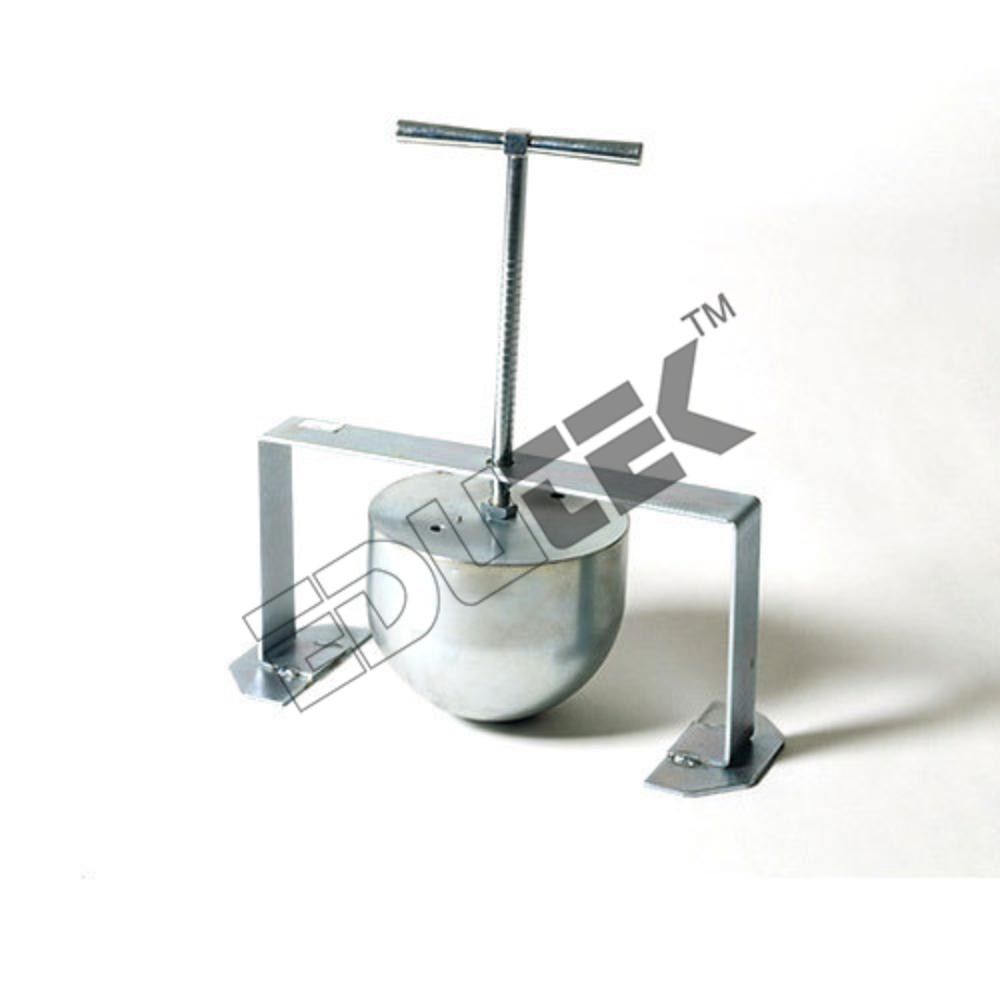

Kelley Ball Penetration Apparatus

Get a Price/Quote

MOQ : 1 Unit

Kelley Ball Penetration Apparatus Specification

Measurement Range
0-150 mm Penetration

Usage
Correlates penetration depth to slump values

Classification
Concrete QC / Field Testing

Feature
Portable, Easy to Use, Corrosion Resistant

Frequency
50 Hz Hertz (HZ)

Capacity
Up to 30 kg (Ball Weight) Kg

Application
Pavements, large slabs, and mass concrete

Color
Silver / Metallic

Material
Heavy Duty Corrosion Resistant Steel

Power Source
Manual (No Electrical Power Required)

Temperature Range
Suitable for normal laboratory temperatures Celsius (oC)

Product Type
Workability Tester

Automation Grade
Manual

Core Components
Cylindrical container, steel ball, graduated frame, tripod stand

Accuracy
1 mm mm

Operate Method
Static Penetration: The ball is lowered onto a leveled concrete surface; the graduated rod indicates the depth of penetration

Equipment Materials
Mild Steel (Body), Stainless Steel (Ball), Brass (Cylinder)

Type
Ball Penetration Apparatus

Display Type
Analog

Dimension (L*W*H)
400 x 250 x 600 mm Millimeter (mm)

Weight
12 kg (approx) Kilograms (kg)

Ball Material
Hardened Stainless Steel

Ball Diameter
150 mm

Application
Used to measure workability and consistency of concrete directly on job site or laboratory

Finish
Powder Coated/MS Painted

Maintenance
Low maintenance design

Cylinder Capacity
17 liters

Ambient Operating Temperature
5C to 45C

Penetration Scale Graduation
1 mm

Tripod Stand Height
600 mm

Kelley Ball Penetration Apparatus Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Against Delivery (CAD)

Delivery Time
2 Week

Sample Available
No

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, North India, East India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Kelley Ball Penetration Apparatus

Kelley Ball Penetration Apparatus
The apparatus is used to determine the workability of Portland cement & concrete. The Kelly ball test is considered to be simple and much faster than the slump test. Twice the Kelly ball reading approximately equals the slump. It consists of a cylinder with a ball shaped bottom and handle, together weighing 15 kg. A strip frame, guides the handle and serves as a reference for measuring the depth of penetration. The handle is graduated in mm. Penetration can be recorded to the nearest 0.5mm.

Reliable Workability Testing
Designed for precision, the Kelley Ball Penetration Apparatus offers reliable assessment of concrete workability and consistency. Its 150 mm hardened stainless steel ball and analog penetration scale ensure accurate measurements, vital for quality control in construction projects.

Robust and Portable Design
Built with mild steel and finished in powder coating, the apparatus resists corrosion and wear. Its lightweight, portable frame allows for easy transportation to job sites, while manual operation eliminates the need for a power source.

User-Friendly Operation
The Kelley Ball device is straightforward to assemble and operate, with a clear analog display. The process requires minimal maintenance, making it ideal for daily use in both laboratory and onsite environments.

FAQs of Kelley Ball Penetration Apparatus:

Q: How is the Kelley Ball Penetration Apparatus used to determine the consistency of fresh concrete?

A: To use the Kelley Ball Penetration Apparatus, fill the cylinder with fresh concrete, level the surface, and position the steel ball and graduated frame atop it. Release the ball and note the depth of penetration on the analog scale, which correlates with the workability of the concrete.

Q: What are the core benefits of using this apparatus on a job site or in a laboratory?

A: The apparatus is portable, easy to use, and requires no electrical power. Its corrosion-resistant materials and low-maintenance design make it ideal for consistent, accurate workability testing across a variety of environments.

Q: When should the Kelley Ball Penetration test be performed?

A: This test is best conducted immediately after mixing the concrete to provide a reliable measure of its workability and consistency before placement or further processing.

Q: Where is the Kelley Ball Penetration Apparatus typically utilized?

A: This device is suitable for use at construction sites for on-the-spot testing as well as in laboratory settings for controlled consistency measurements of fresh concrete.

Q: What is the process for maintaining the Kelley Ball Penetration Apparatus?

A: Thanks to its low-maintenance design, regular cleaning after use and periodic inspections for wear and residue are typically sufficient to keep the apparatus in optimal working condition.

Q: How accurate are the results provided by this apparatus?

A: The analog display offers a penetration scale with 1 mm graduations and an overall accuracy of 1 mm, ensuring dependable results for concrete consistency testing.
