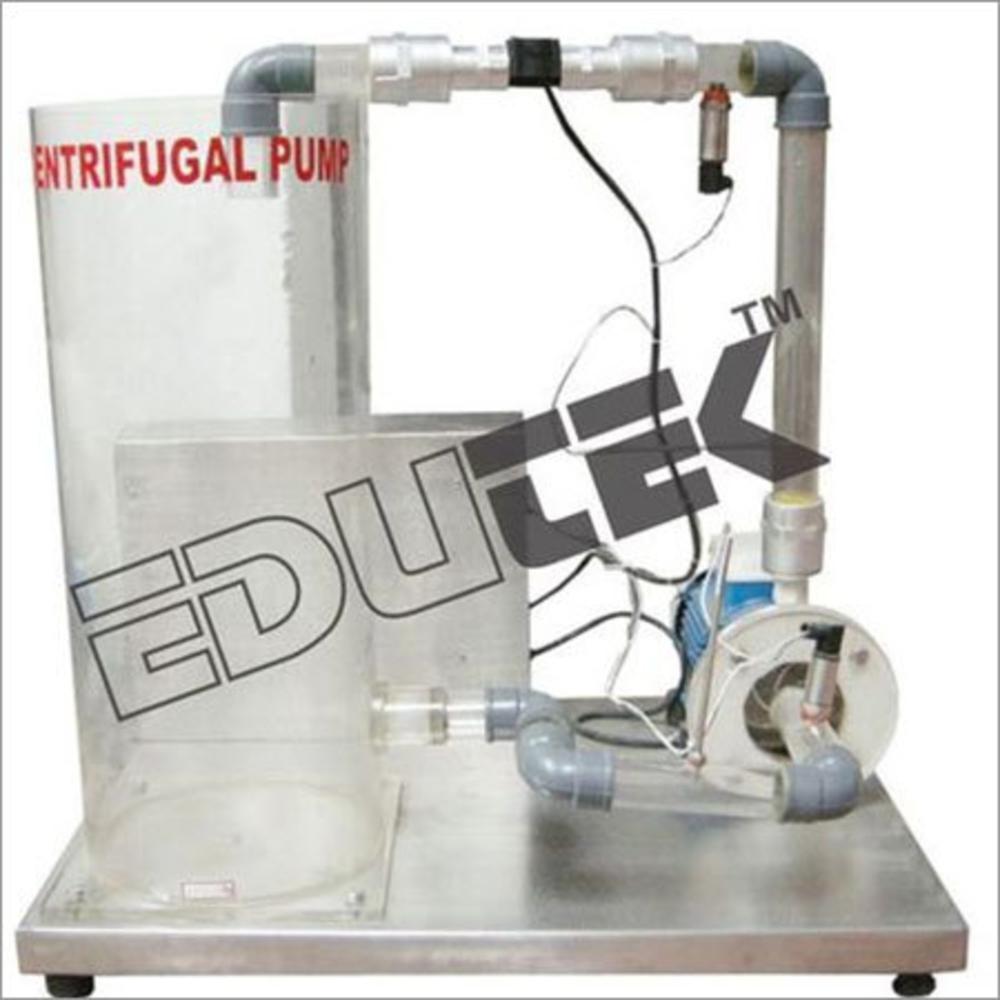

Centrifugal Pump Test Rig

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Centrifugal Pump Test Rig Specification

Feature
Highly Efficient

Dimension (L*W*H)
2000x750x1450 Millimeter (mm)

Weight
200 Kilograms (kg)

Warranty
1 year

Accuracy
100 %

Type
Centrifugal Pump Trainer

Usage
Laboratory

Centrifugal Pump Test Rig Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Middle East, Africa, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Centrifugal Pump Test Rig

Centrifugal Pump Trainer

The unit perform the following experiments and investigations:
Learning Objectives / Experiments
Recording of pump characteristics
Recording of system characteristics
Determination of the flow rate by means of an electromagnetic flow rate sensor or an orifice plate flow meter and a differential pressure measurement
Calculation of efficiencies

Specification

Examination of a standard centrifugal pump
Closed water circuit
Three-phase motor to power the pump with variable speed via a frequency converter
Drive motor with pendulum bearing
Non-contact speed measurement at thif engine shaft and force sensor for measuring the drive power
Determination of the flow rate by using an electromagnetic flow rate sensor, or an orifice plate flow meter and a differential pressure measurement
Manometer at the inlet and outlet of the centrifugal pump
Digital displays for torque, speed, electrical power consumption and flow
Three-phase motor to power the pump with speed via a frequency converter
Drive motor with pendulum-1 bearing
Non-contact speed measurement at the engine shaft and force sensor for measuring drive power
Determination of the flow rate by using electromagnetic flow rate sensor, or an orifice plate flow meter and a differential pressure measurement

Centrifugal pump

Max. flow rate: approx. 16m/h
Max. head: approx. 16m
Drive motor with variable speed
Power output1,1 kW
Speed range: 0...2900min- 1,
Tank 96L

Measuring ranges

Pressure: 1x --0,6...0bar., 1x0...2,5bar
Flow rate: 5.. 600L/min
Speed:0...5000min-1
Torque: 0...10Nm
Power consumption: 0....2,2kW

Dimensions and Weight

LxWxH: 2000x750x1450mm
Weight: approx. 200kg

Experiments:

To determine overall efficiency and pump efficiency of
To plot head vs. Discharge, pump efficiency vs.

Features:

Closed loop water circulation
Compact & stand-alone set up
Stainless steel tanks and wetted parts
Superb painted structure
Simple to operate & maintain

Utilities required:

Electric supply provide 230 +/- 10 vac, 50 hz, single
Earth voltage less than 5 vac. ) 5a, three pin socket with switch for pump.
Water supply
Tap water connection

Technical details:

Product centrifugal pump test rig
Pump
Drive
Supply tank
Measuring tank
Piping
Stop watch
Control panel
With required electrical instrumentation
Electronic
GI/ PVC

Comprehensive Laboratory Training

This centrifugal pump trainer is specifically developed for laboratory settings, allowing students and researchers to perform precise pump tests. Its design supports a wide array of experimental setups, making it ideal for demonstrations, analysis, and hands-on learning.

Robust and Accurate Construction

Built with durability in mind, the test rig weighs 200 kg and measures 2000x750x1450 mm, ensuring stability and straightforward placement within labs. With 100% measurement accuracy and a 1-year warranty, it stands out for both reliability and performance.

Versatile Applications for Exporters and Manufacturers

As a preferred choice among exporters, manufacturers, and suppliers, the centrifugal pump test rig caters to global markets. Its efficiency and reliability make it an excellent tool for quality assurance, vocational training, and academic curriculum inclusion.

FAQs of Centrifugal Pump Test Rig:

Q: How is the centrifugal pump test rig set up in a laboratory environment?

A: The rig is placed on a level surface measuring at least 2000x750x1450 mm. It is then connected to the required hydraulic and electrical lines according to the supplied manual. Proper installation ensures accurate and safe experimental operation.

Q: What is the process for conducting a performance test with this pump trainer?

A: To perform a test, connect the rig to the water supply and start the pump. Measurements such as flow rate, head, and efficiency can be taken using the in-built instrumentation. Data collected is used to analyze pump performance.

Q: When should calibration or maintenance be performed on the test rig?

A: Routine calibration is recommended before a new set of experiments or after every semester. Maintenance should be conducted annually, or as prescribed in the manual, to ensure consistent 100% accuracy and prolong the rigs lifespan.

Q: Where can benefits be realized by using this trainer in educational institutions?

A: Educational institutions benefit from this test rig by offering hands-on pump performance experiments. Students acquire practical knowledge on pump operation, troubleshooting, and efficiency measurement, enhancing theoretical learning.

Q: How does the rigs feature of high efficiency benefit laboratory usage?

A: The highly efficient design ensures minimal energy consumption while delivering maximum experimental output. This helps in accurate data recording and provides a realistic demonstration of industrial pump operation.

Q: What support and warranty services are provided?

A: Every centrifugal pump test rig is supplied with a 1-year warranty, covering manufacturing defects. Comprehensive support is available for installation, operation, and after-sales service to ensure smooth integration into your facility.
