Measurement Of Jet Forces

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Measurement Of Jet Forces Specification

Weight
25 Kilograms (kg)

Feature
Highly Efficient

Dimension (L*W*H)
425x425x915 Millimeter (mm)

Accuracy
100 %

Warranty
1 year

Type
MEASUREMENT OF JET FORCES

Usage
Laboratory

About Measurement Of Jet Forces

MEASUREMENT OF JET FORCES

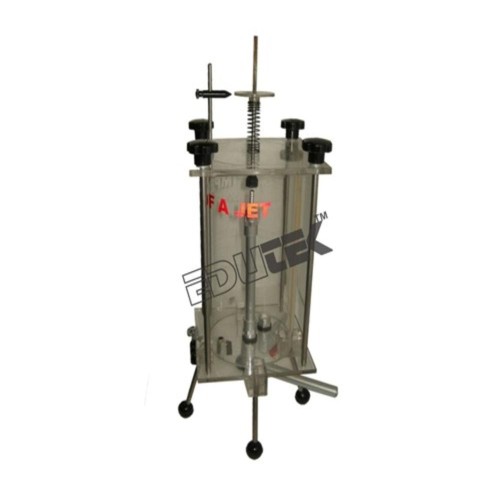

The Impact Of A Jet setup consists of a two sided clear fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover. A weight carrier is mounted on the upper end of the stem. The dead weight of the moving parts is counter balanced by a compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A total of two targets are provided, a flat plate and a hemispherical cup.

Learning Objectives / Experiments

Demonstration of the principle of linear momentum
Study of the jet forces
Influence of flow rate and flow velocity
Influence of different deflection angles

Specification:

Investigation of jet forces and demonstration of the principle of linear momentum
Tank made of transparent material for observing the experiments
Nozzle for generating the water jet
Jet force can be adjusted via flow rate
Four different shaped deflectors: flat surface, oblique surface, semi-circular surface, conical surface
Measurement of the jet forces via the weight-loaded scale
Flow rate determined by base module
Water supply using base module or via laboratory supply

Technical Data:

Tank
Inner diameter: 200mm
Height: 340mm

Nozzle:

Diameter: 10mm

Deflector:

Flat surface: 90°
Oblique surface: 45°/135°
Semi-circular surface: 180°
Conical surface: 135°

Weights:

4x 0,2N
3x 0,3N
2x 1N
2x 2N
2x 5N

Dimensions and Weight:

LxWxH: 425x425x915mm
Weight: approx. 25kg

Accurate Force Measurement

This device enables users to precisely measure the force exerted by a jet of fluid on various target vanes. The apparatus is designed for maximum efficiency and consistency, ensuring that results remain dependable in repeated experiments.

Durable and User-Friendly Design

Constructed with durable materials, the instrument requires minimal maintenance and can withstand rigorous laboratory conditions. Its compact size and manageable weight make it easy to transport and set up on lab benches, providing flexibility in various educational or industrial settings.

Comprehensive Usage in Laboratories

Widely used by educational institutions and research centers, this measurement apparatus helps illustrate fundamental concepts in fluid mechanics. Its high efficiency and guaranteed accuracy make it a valuable asset for practical classes and demonstration purposes.

FAQs of Measurement Of Jet Forces:

Q: How does the Measurement of Jet Forces apparatus operate in a laboratory setting?

A: The device functions by directing a controlled fluid jet onto different vanes, measuring the resulting force with precise sensors. Users can easily monitor and record readings to analyze the relationship between jet velocity, vane angle, and imparted force.

Q: What are the main benefits of using this jet force measurement device?

A: Key advantages include its high measurement accuracy (100%), efficient operation, and robust construction. It serves as an effective teaching and research tool, enhancing the understanding of fluid dynamics in practical scenarios.

Q: When should this apparatus be used in laboratories?

A: It is best employed during experiments and demonstrations involving fluid jet impact, especially in academic, research, or training sessions related to fluid mechanics and mechanical engineering topics.

Q: Where is this product manufactured and supplied from?

A: This apparatus is manufactured and exported by a reputable supplier based in India, ensuring high-quality standards and excellent support for global and domestic customers.

Q: What is the process for setting up and using the jet force measurement unit?

A: To set up, place the apparatus on a stable surface, connect the water supply, and position the required vane. Once operational, introduce the fluid jet and use the built-in sensors to take accurate force readings corresponding to different vane geometries.

Q: How accurate are the measurements provided by this device?

A: The instrument delivers 100% measurement accuracy, making it highly reliable for both instructional and research applications where precision is critical.

Q: What warranty and support are provided with this apparatus?

A: A one-year warranty covers manufacturing defects and technical issues. Customers can rely on the suppliers responsive service for maintenance, repair, and operational support throughout the warranty period.
