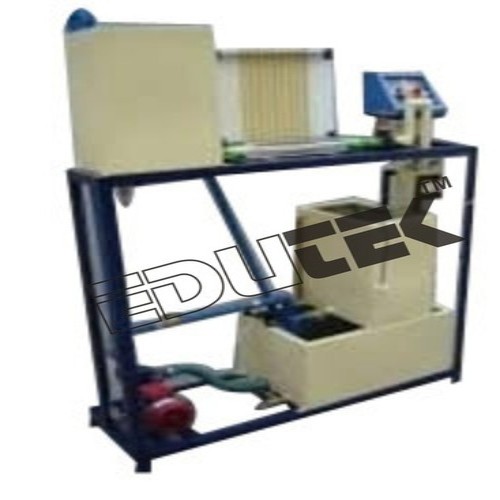

Bernoullis Apparatus

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Bernoullis Apparatus Specification

Core Components
Flow channel, piezometer tubes, water tank, pump

Model No
BA-2941

Power Source
Electric

Product Type
Hydraulic

Frequency
50 Hz

Temperature Range
Ambient

Voltage
220-230 V AC

Accuracy
1 mm on piezometric readings

Feature
These units consist of a rectangular transparent flow section through which water is to be flown.

Measurement Range
0-500 mm water column

Automation Grade
Manual

Warranty
1 year

Capacity
15 Liters

Equipment Materials
Transparent Acrylic Flow Section, Stainless Steel/Aluminum Fittings

Type
Bernoullis Apparatus

Usage
To verify Bernoulli's Theorem experimentally

Display Type
Analog scale for piezometer readings

Dimension (L*W*H)
1000 x 150 x 200 mm

Weight
Approx. 20 kg

Working Fluid
Water

Discharge Measurement
Volumetric with Measuring Tank

Manufacturing Standard
ISO and CE Certified

Number of Manometers
6 Piezometer Tubes

Pump Type
Centrifugal Pump, Self-priming

Inlet/Outlet Fittings
Quick Connect Type

Test Application
Educational, Laboratory Experiments

Finish
Powder Coated Frame

Flow Control
Integrated Valve for Regulation

Type of Flow Section
Converging-Diverging Duct

Bernoullis Apparatus Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Sample Available
Yes

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East, Africa, Western Europe

Main Domestic Market
All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Bernoullis Apparatus

Bernoullis Apparatus

Our organization is counted among the listed manufacturers, wholesalers and exporters of premium quality Bernoulli's apparatus. Offered apparatus is precisely manufactured under strict supervision in compliance with industry laid parameters. These units consist of a rectangular transparent flow section through which water is to be flown. The velocity of water changes across the sectional area of channel changes.

Experiments:

To verify Bernoulli's Theorem experimentally

Utilities Required:

Electric supply 0.5 kW, 220V AC, Single Phase
Water supply Tap water connection
BSP Distilled water @ 60 liters (optional)
Floor Area with Drain facility

Technical Specifications:

Electric supply: 0.5 kW, 220V AC, Single Phase
Inlet Tank Capacity: 20 Ltrs. MOC SS
Supply Tank Capacity: 85 Ltrs. MOC SS
Measuring Tank Capacity: 40 Ltrs. MOC SS fitted with Piezometer Tube & scale
Piezometer Tubes: Material P.U. Tubes (9 Nos.)

Comprehensive Fluid Flow Analysis

The apparatus features a converging-diverging duct with six piezometer tubes, enabling clear visualization and measurement of pressure changes along the flow channel. The transparent acrylic section and analog piezometric readings offer students and instructors immediate insight into fundamental fluid mechanics principles during experimentation.

Durable and Efficient Design

Built with a powder-coated frame and stainless steel/aluminum fittings, the BA-2941 is engineered for long-lasting performance. Its quick-connect inlet/outlet fittings streamline assembly and operation, while the integral centrifugal pump ensures reliable water flow throughout laboratory sessions.

Educational Value and Practical Application

Specially designed for educational laboratories, the apparatus helps learners practically comprehend Bernoullis theorem, fluid flow behavior, and principles of flow measurement. Its manual operation and clear analog display promote hands-on learning and accurate data recording, making it an essential teaching tool.

FAQs of Bernoullis Apparatus:

Q: How is discharge measured with the Bernoullis Apparatus?

A: Discharge is measured volumetrically using the integrated measuring tank. Water flowing through the system is collected in a tank, allowing users to determine flow rate accurately by measuring the volume over a set period.

Q: What is the primary benefit of using this apparatus in laboratory experiments?

A: The apparatus enables direct visualization and precise measurement of static and dynamic pressure changes along a flow channel, making it ideal for practically verifying Bernoullis theorem and deepening students understanding of fluid mechanics.

Q: When is this Bernoullis Apparatus most suitable for use?

A: It is most suitable for fluid mechanics laboratory sessions in educational institutions, particularly when demonstrating and verifying Bernoullis principle through hands-on experiments.

Q: Where can this apparatus be installed and operated?

A: The apparatus is designed for indoor laboratory environments, requiring a stable workbench and access to a 220-230 V AC power supply. Its compact dimensions (1000 x 150 x 200 mm) allow it to fit comfortably in standard lab spaces.

Q: What process is involved in performing a typical experiment with this apparatus?

A: Experiments typically involve filling the flow tank with water, starting the centrifugal pump, and regulating the flow with the integrated valve. Pressure readings are taken from the six piezometer tubes at different points along the duct, and discharge is recorded using the measuring tank.

Q: How does the apparatus ensure accurate pressure readings?

A: The BA-2941 is equipped with an analog scale for piezometer readings, providing accuracy to within 1 mm. The transparent flow section and well-marked scales enable precise observation and measurement of water levels.

Q: What are the main components included in this Bernoullis Apparatus setup?

A: Primary components include a transparent acrylic flow channel, six piezometer tubes for pressure measurement, a volumetric measuring tank, a centrifugal self-priming pump, quick-connect stainless steel/aluminum fittings, and a powder-coated support frame.
