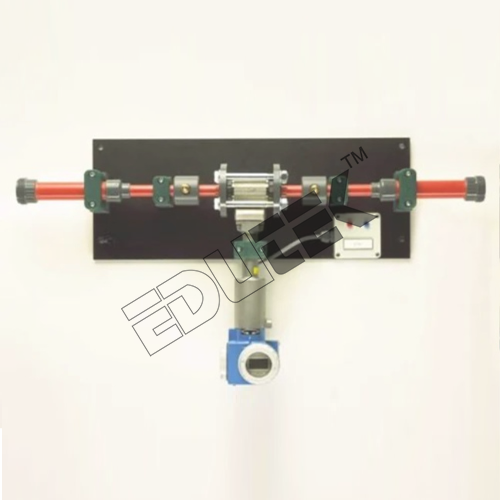

Orifice Plate Flow Meter With Transducer

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Orifice Plate Flow Meter With Transducer Specification

Automation Grade
Semi-Automatic

Temperature Range
-20C to 120C

Accuracy
100 %

Frequency
50 Hz

Core Components
Orifice Plate, Transducer, Mounting Flange

Measurement Range
0.2 m3/hr to 10 m3/hr

Feature
Highly Efficient

Model No
OPFM-TX220

Capacity
Up to 10000 LPH

Power Source
Electric

Voltage
220V AC

Equipment Materials
Stainless Steel / Alloy Steel

Type
Orifice Plate Flow Meter With Transducer

Usage
Laboratory

Display Type
Digital

Dimension (L*W*H)
400mm x 150mm x 120mm

Weight
5 kg (approx.)

About Orifice Plate Flow Meter With Transducer

ORIFICE PLATE FLOW METER WITH TRANSDUCER

The orifice plate flow meter is installed in the water circuit of the trainer. The flow rate measurement is based on the differential pressure method.

The orifice plate narrows the cross-section in the tube. The constriction of the cross-section causes an increase in velocity which results in a measurable differential pressure. A transducer based on variable capacitance (diaphragm method) is used to measure the differential pressure. It is indicated on a display. Taking the orifice geometry into account, the flow rate can be calculated from the decrease in pressure using Bernoullis principle and the Continuity law.

Learning Objectives / Experiments

Familiarisation with the operating principle
Continuity law and Bernoulli's principle
Transducer with capacitive sensing element
Flow rate measurement
Plotting a pressure loss curve
Comparison with other flow meters

Specification

Orifice Plate Flow Meter with electronic differential pressure transducer for flow rate measurement as accessory for flow meter trainer
Operation based on the differential pressure method
Display indicating differential pressure
Connections to facilitate pressure loss measurement with flow meter trainer
Connections to supply auxiliary power via flow meter trainer
Vertical and horizontal installation possible

Technical Data

Orifice plate
Material: brass
Diameter: 18,5mm, with 45 chamfer
Transducer measuring range: 0...500mbar
Auxiliary power: 24VDC
Pipe connections: DN 32

Dimensions and Weight

LxWxH: 840x270x340mm
Weight: approx. 14kg

Versatile Flow Measurement Solution

Designed for a broad range of fluids including water, oil, and chemicals, the Orifice Plate Flow Meter with Transducer excels in both laboratory and industrial environments. Its durable metallic enclosure and IP65 protection rating cater to demanding conditions, ensuring both longevity and reliability during use.

Cutting-Edge Performance and Accuracy

Experience high accuracy (100%) and rapid response times (<1 s) with every measurement. Built with core components such as an advanced orifice plate and precision transducer, the flow meter delivers repeatable readings (0.2%) and supports a measurement capacity of up to 10,000 liters per hour, making it ideal for rigorous applications.

User-Friendly Operation and Installation

This flow meter comes with a digital display and a 4-20mA output, simplifying monitoring and integration into process systems. Its flange mounting type and standardized dimensions facilitate seamless installation, while semi-automatic operation enables straightforward usage and maintenance.

FAQs of Orifice Plate Flow Meter With Transducer:

Q: How does the Orifice Plate Flow Meter with Transducer measure flow accurately across various fluids?

A: The device utilizes a precision-engineered orifice plate to create a differential pressure across the pipe, which the transducer then converts into a flow rate signal. This method, combined with stainless steel/alloy steel construction and digital signal output, ensures reliable and accurate measurement of water, oil, or chemical streams.

Q: What are the typical applications for this flow meter?

A: This flow meter is used extensively in industrial flow measurement, laboratory testing, process control, and wherever accurate flow monitoring of water, oil, or chemicals is required. Its semi-automatic operation and digital interface make it suitable for both onsite and experimental setups.

Q: When should the Orifice Plate Flow Meter with Transducer be chosen over other types?

A: Select this flow meter when high accuracy, a wide pressure (up to 40 bar) and temperature range (-20C to 120C), and compatibility with multiple fluids are essential. It is ideal for settings that demand robust construction, efficient operation, and analog output integration such as manufacturing plants and research labs.

Q: Where can this flow meter be installed optimally?

A: For best results, install the flow meter in a straight length of pipe to ensure uniform flow conditions, utilizing the flange mounting for secure attachment. Its IP65-rated enclosure allows installation in industrial areas with dust or splashing water, supporting both indoor and sheltered outdoor locations.

Q: What is the process for connecting and starting the Orifice Plate Flow Meter?

A: Simply bolt the meter onto a prepared DN25DN150 flanged pipeline, connect the 220V AC power supply, and wire the 4-20mA output to your monitoring system. Once powered, the digital display and transducer are ready for immediate flow measurement.

Q: How does this flow meter benefit industrial operations?

A: Its high measurement accuracy, rapid response (<1 s), and repeatable results (0.2%) ensure precise process control and data reliability. The sturdy materials and IP65 protection minimize maintenance, while the broad fluid compatibility maximizes versatility and return on investment.
