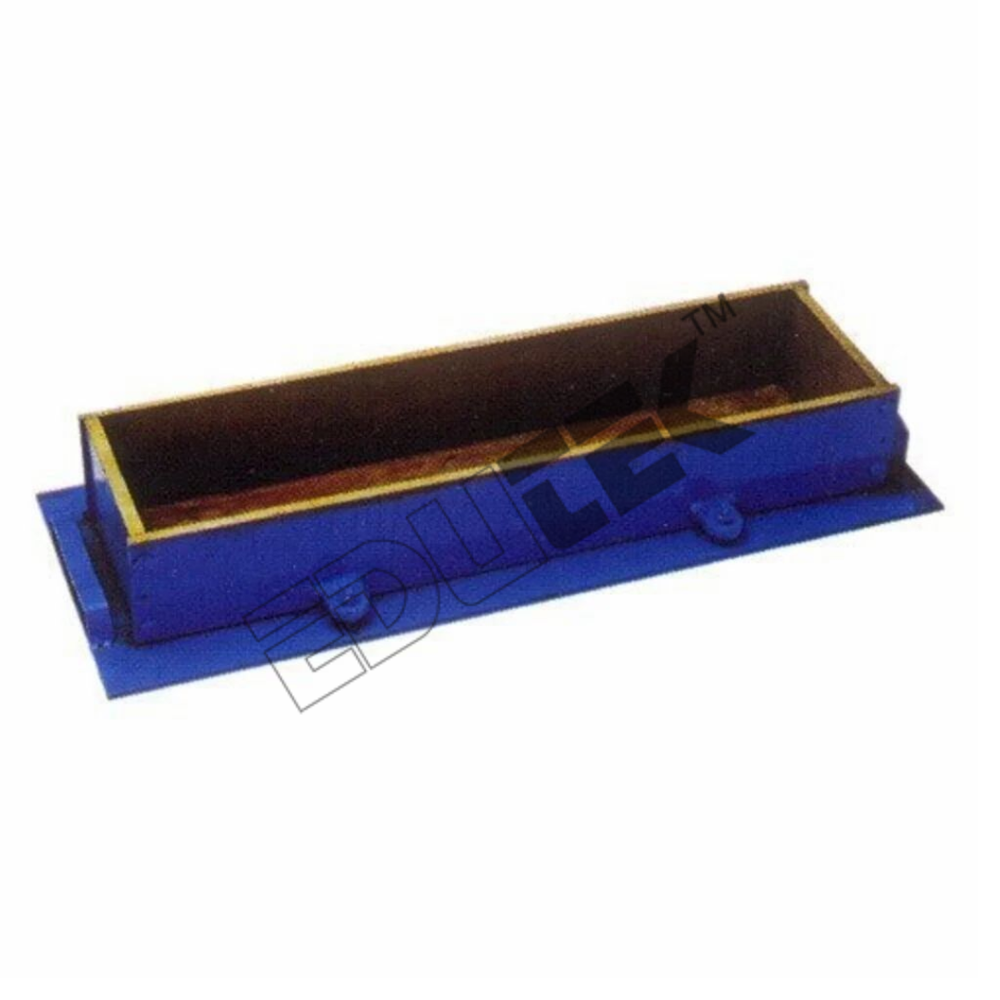

Beam Mould .

Price 400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Beam Mould . Specification

Model No

Temperature Range
Ambient Celsius (oC)

Capacity
3 beams at a time (Standard size: 150mm x 150mm x 700mm) Pcs/hr

Core Components
Base Plate, Side Walls, End Plates, Bolts/Nuts

Measurement Range
150mm x 150mm x 700mm

Accuracy
Conforms to IS 516, IS 10086, BS 1881 standards %

Feature
Rigid construction, Leak-proof, Easily demouldable

Power Source
Not required (manual/mould)

Automation Grade
Manual/Non-automated

Equipment Materials
Cast Iron or Mild Steel

Type
Concrete Beam Mould

Usage
For casting concrete beams for flexural strength testing

Display Type
None (Mechanical mould)

Dimension (L*W*H)
Approx. 700mm x 150mm x 150mm (for standard size) Millimeter (mm)

Weight
Approx. 28-35 kg (depending on model and material) Kilograms (kg)

Beam Mould . Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit at Sight (Sight L/C), Days after Acceptance (DA), Delivery Point (DP), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Central America, Middle East, Africa, Asia, North America, South America, Eastern Europe, Western Europe, Australia

Main Domestic Market
All India, South India, Central India, North India, East India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Beam Mould .

Beam Mould

For casting, concrete specimen for flexure tests

Specification :

Made of Cast Iron / Mild Steel. The mould are made of 4 plates assembled together. Each mould is supplied complete with base plate. Faces are machined flat to 0.2mm. And finished in size to 0.2mm.

Durable Construction and Smooth Finish

Manufactured using cast iron or mild steel, the Beam Mould features a machined and finished surface to deliver perfectly shaped concrete beams. Its robust build with thick end plates and carefully engineered joints minimizes leakage, ensuring your specimens maintain their intended dimensions throughout the casting and curing process.

Easy Handling and Maintenance

Bolted or welded assembly with removable sides allows fast demoulding and straightforward cleaning. The moulds design prioritizes user convenience and repeatable results, while optional clamps, handles, and spacer plates further streamline operation for laboratory and field applications.

Accuracy and Standard Compliance

Each Beam Mould is produced in strict accordance with IS 516, IS 10086, and BS 1881 specifications to guarantee test reliability. With a standard capacity to cast three beams simultaneously and a measurement range of 150mm x 150mm x 700mm, this equipment delivers consistent, reproducible outcomes for flexural strength testing of concrete.

FAQs of Beam Mould:

Q: How is the Beam Mould assembled and disassembled?

A: The Beam Mould comes with bolted or welded sides, enabling quick assembly and removal. The removable side walls facilitate easy demoulding of the concrete beams after curing, making the cleaning process efficient and straightforward.

Q: What are the primary benefits of using a machined and finished Beam Mould?

A: A machined and finished surface ensures that cast beams have precise dimensions and smooth surfaces, minimizing surface defects and maximizing test accuracy in flexural strength measurements.

Q: When should I use optional accessories with this Beam Mould?

A: Optional accessories like spacer plates, handles, and additional clamps are recommended when higher operational flexibility or enhanced safety is required, especially in busy laboratories or challenging field conditions.

Q: Where can the Beam Mould be used effectively?

A: This mould is suitable for both laboratory and field settings due to its robust construction and ease of transport. Its ambient temperature operating range ensures versatility across diverse environments.

Q: What is the cleaning procedure for the Beam Mould after use?

A: After demoulding the concrete beams, simply remove any residue from the machined surfaces and joints using water or an appropriate cleaning solvent. The removable sides make thorough cleaning easy, preserving the moulds life and ensuring accurate future casts.

Q: How does the mould ensure dimensional accuracy and prevent leaks?

A: Thick-gauge end plates and precision assembly with bolts or welding maintain the shape and tightness of the mould. These features, combined with a smooth surface finish, prevent concrete leakage and help maintain dimensional fidelity according to testing standards.

Q: What standards does the Beam Mould conform to for quality assurance?

A: This equipment is designed to meet international and national standards, including IS 516, IS 10086, and BS 1881, ensuring that your test results are both accurate and widely accepted.
