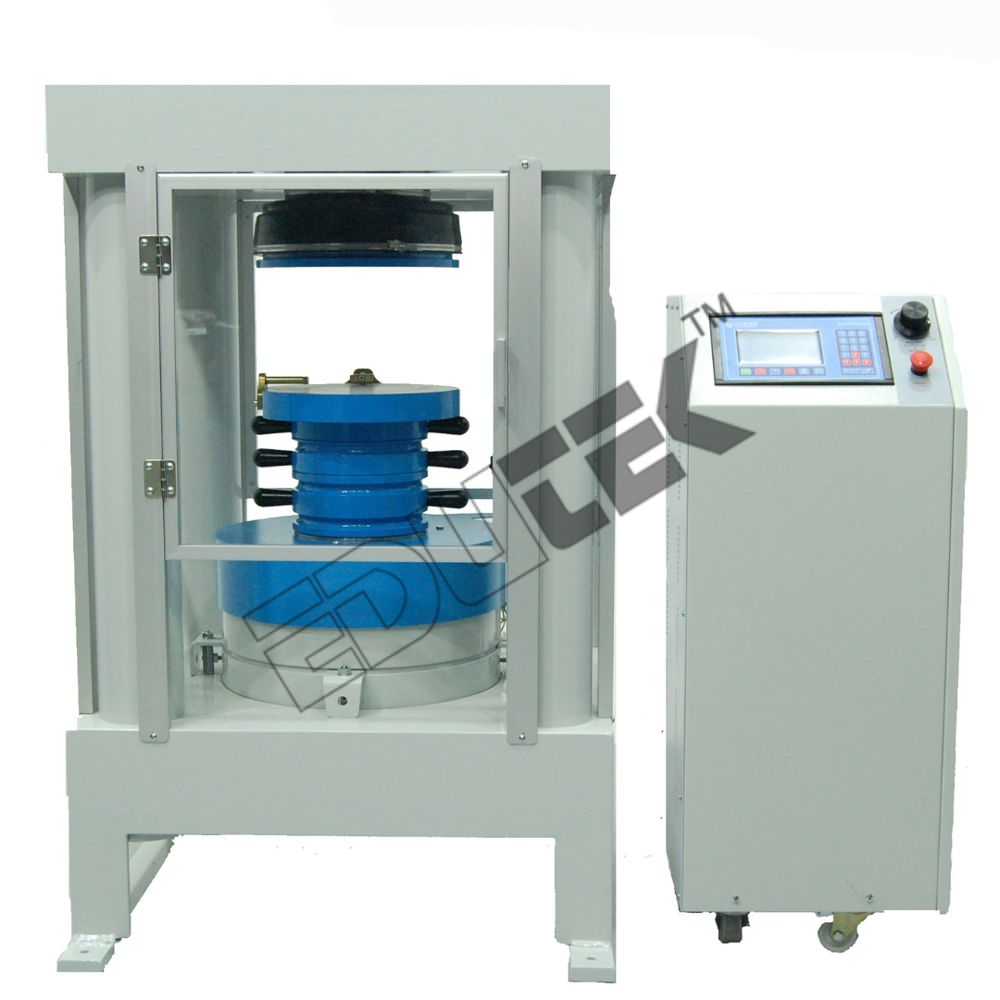

Automatic Compression Testing Machine

Name: Automatic Compression Testing Machine
Brand: EDUTEK INSTRUMENTATION
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Compression Testing Machine Specification

Operate Method
Servo-Hydraulic Control: The user selects the standard and pace rate; the machine automatically executes the test and stops at specimen failure

Voltage
220V AC Volt (v)

Product Type
Strength Analyzer

Feature
Fully Automatic Operation, Digital Display, Data Logging, Safety Interlocks

Accuracy
1% of Indicated Load %

Usage
Automated compressive strength determination

Capacity
2000 kN Kg

Model No

Power Source
Electric

Temperature Range
Ambient Celsius (oC)

Automation Grade
Automatic

Classification
Geotechnical / Structural Testing

Application
High-rise construction & Research labs

Measurement Range
0 - 2000 kN

Frequency
50 Hz Hertz (HZ)

Core Components
Hydraulic Pump, Digital Controller, Pressure Gauge, Load Frame

Equipment Materials
Heavy-duty Mild Steel Body

Type
Automatic Compression Testing Machine

Display Type
Digital

Dimension (L*W*H)
Approx. 950 mm x 450 mm x 1200 mm Millimeter (mm)

Weight
Approx. 400 kg Kilograms (kg)

Calibration Certification
Supplied with Calibration Certificate Traceable to NABL

Max. Piston Stroke
110 mm

Data Output
USB, RS232 port

Ram Diameter
180 mm

Testing Standards
IS 516, ASTM C39, BS 1881

Control Mode
Closed Loop with Microprocessor Controller

Safety Feature
Automatic Overload Protection, Emergency Stop

LCD Size
Large Backlit LCD Panel

Operating Temperature
10C to 40C

Oil Reservoir Capacity
15 liters

Automatic Compression Testing Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Telegraphic Transfer (T/T), Letter of Credit (L/C), Delivery Point (DP), Letter of Credit at Sight (Sight L/C)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Asia, South America, Eastern Europe, Western Europe, Middle East, Africa, North America, Australia, Central America

Main Domestic Market
All India, South India, Central India, North India, East India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Automatic Compression Testing Machine

Automatic Compression Testing Machine
Automatic range of 2000 kN and 3000 kN capacity compression testing machines has been designed to meet the need for reliable and consistent testing of concrete samples. All our machines feature the complete automatic test cycle with a closed loop digital readout. Once the specimen parameters have been introduced, it is sufficient to press the START button to complete the test.
Compression machines consist of their main parts: Frame, power pack and data acquisition & control system. Each part has been designed to manufacture machines with a high degree of mechanical stability and complies to EN 12390-4; BS 1881 and ASTM C39 (with suitable platen set) standards.

Main Characteristics :

Automatic test cycle with standard Rapid Approach.
Graphical - LCD Data Acquisition and Control System.
Menu Driven Software for easy operation.
Load vs time plot and instantaneous load rate displayed.
Accurate load rate control within 5 from 1 kN/sec to 20 kN/sec.
Class 1 starting from % 10 of the full range.
Ready Stress Calculation for the standards of EN 12390-3, EN 12390-5, EN 12390-6, EN 1338, EN 1340, EN 196 SI, Metric, Imperial Units.
Data storage up to 256 tests.
RS 232 output for printer or PC# PC software for test control and advanced report printout.

Superior Accuracy and Compliance
The automatic compression testing machine provides an impressive accuracy of 1% of the indicated load, meeting international testing standards such as IS 516, ASTM C39, and BS 1881. The supplied calibration certificate traceable to NABL ensures that each measurement is both reliable and recognized for regulatory compliance.

User-Friendly Operation and Data Management
Equipped with a large, backlit LCD panel and a closed-loop microprocessor controller, it offers intuitive digital controls. The system supports data export through USB and RS232 ports, making data logging and transfer straightforward for further analysis or record keeping.

Enhanced Safety and Durability
Safety is paramount with the inclusion of automatic overload protection, emergency stop, and robust mild steel construction. The machines safety interlocks, solid build, and hydraulic components are engineered for longevity even in rigorous testing environments, providing peace of mind for operators.

FAQs of Automatic Compression Testing Machine:

Q: How does the automatic compression testing machine operate?

A: It uses a closed-loop microprocessor-controlled system for fully automatic compression testing. Operators simply place the sample, set the parameters using the digital controller, and initiate the test. The machine handles the loading process, displays real-time data on the LCD, and automatically records results.

Q: What types of samples can be tested with this machine?

A: The machine is designed primarily for testing the compressive strength of concrete cubes and cylinders, making it essential for quality control in construction, civil engineering laboratories, and materials testing facilities.

Q: When should calibration of the testing machine be performed?

A: The ACTM-2000D is supplied with a calibration certificate traceable to NABL. It is advisable to recalibrate the machine annually or after any significant maintenance to ensure continued measurement accuracy and compliance with testing standards.

Q: Where can data output from the machine be accessed and transferred?

A: Data can be accessed directly on the large backlit LCD display or exported via the built-in USB and RS232 ports. This allows users to conveniently log and analyze test data on a computer for reporting or archival purposes.

Q: What safety features are included in the machine?

A: The machine is equipped with automatic overload protection and an emergency stop mechanism to prevent equipment damage and ensure operator safety. These features are enhanced with safety interlocks within the digital controller.

Q: What are the main benefits of using this automatic compression testing machine?

A: Key benefits include high testing accuracy, full automation for consistent results, digital data logging, robust safety features, and compliance with international standards. Its user-friendly interface simplifies operation while ensuring reliable, repeatable measurements.
