Slump Test Apparatus

Get a Price/Quote

Slump Test Apparatus Specification

Model No
STC2947914

Power Source
Manual

Temperature Range
Ambient

Core Components
Slump Cone, Base Plate, Tamping Rod

Measurement Range
0 to 230 mm

Accuracy
2 mm

Automation Grade
Manual

Feature
Corrosion Resistant, Durable Construction

Capacity
10 Litres

Equipment Materials
Mild Steel Cone with Chrome Plated Steel Base

Type
Concrete Slump Test Apparatus

Usage
Measurement of Slump in Fresh Concrete

Display Type
Manual (non-digital)

Dimension (L*W*H)
Cone Height: 300 mm, Diameter Top: 100 mm, Diameter Bottom: 200 mm

Weight
Approx. 3 Kg

Slump Test Apparatus Trade Information

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Delivery Point (DP), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia

Main Domestic Market
South India, North India, East India, Central India, All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Slump Test Apparatus

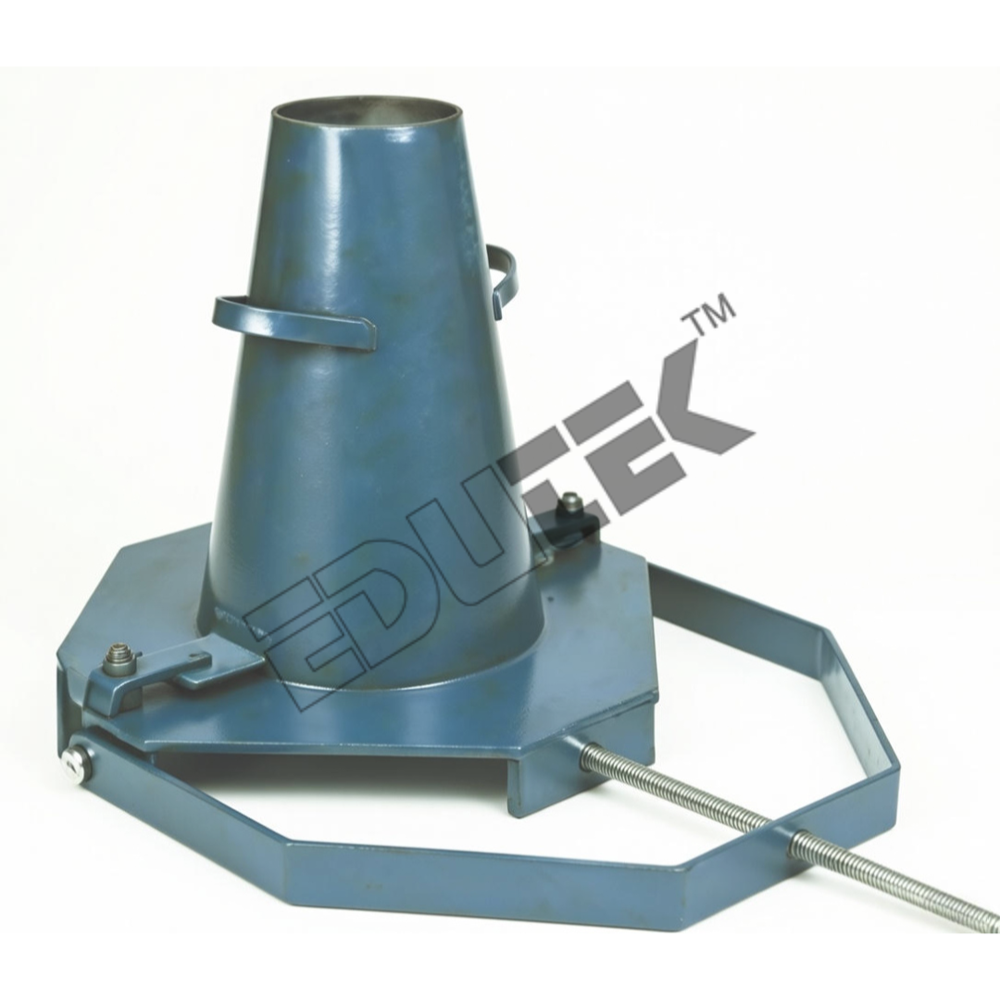

Slump Test Apparatus

It is used for the determination of the consistency of freshly mixed concrete, where the maximum size of the aggregate does not exceed 38mm.

Specification :

The apparatus consists of one slump cone with handles and foot pieces.
The slump cone has internal dimension 20 cm dia at base 10 cm top dia and 30 cm height foot pieces can be fixed to the clamps on the base plate.
The base plate has lifting handle for easy transportation .
One graduated steel rod 16mm dia x 600mm long Rounded at both ends and graduated in mm is also supplied.

Engineered for Precision and Durability

Crafted with a 1.6 mm thick mild steel cone and a chrome plated steel base, the Slump Test Apparatus ensures longevity and corrosion resistance. Each componentcone, base plate, and tamping rodis built to provide consistent results in challenging environments, maintaining accurate measurements with minimal wear.

User-Friendly and Portable Design

Weighing just 3 kg, this apparatus is easily transportable to various job sites. Its smart design requires no assembly, and the manual operation means no electricity is needed. The painted or powder-coated finish not only enhances its appearance but also protects against harsh field conditions.

Versatile Measurement for All Concrete Mixes

With a 10-litre capacity and compatibility for every type of concrete mix, this tool is adaptable for a wide range of testing scenarios. Whether in laboratories, construction sites, or remote areas, it delivers precision on every test, covering a measurement range of 0230 mm with 2 mm accuracy.

FAQs of Slump Test Apparatus:

Q: How do you conduct a slump test using this apparatus?

A: To perform a slump test, fill the cone with fresh concrete in layers, tamping each with the provided rod. Remove the cone vertically and measure the slumpdifference in heightmanually, using the base plate as reference. The process strictly follows standard testing practices.

Q: What types of concrete mixes is this slump test apparatus suitable for?

A: This apparatus is suitable for all types of concrete mixes, making it an ideal choice for various applications in both laboratory and field conditions.

Q: When is the best time to use the slump test apparatus?

A: The slump test should be conducted immediately after mixing concrete and before it starts to set, ensuring an accurate assessment of workability and consistency.

Q: Where can this apparatus be effectively used?

A: Its portable design allows for use at construction sites, laboratories, precast plants, or any location requiring on-the-spot measurement of concretes workability.

Q: What is the maximum measurement range and accuracy of this model?

A: This model measures slumps from 0 to 230 mm with an accuracy of 2 mm, providing reliable data for quality control.

Q: Does the apparatus require assembly or any external power source?

A: No assembly or external power is required. The design is ready to use upon delivery and operates manually for added convenience.

Q: What are the benefits of the apparatuss construction and finish?

A: The mild steel cones thickness, chrome-plated steel base, and powder-coated or painted finish ensure corrosion resistance, durability, and prolonged life even under abrasive site conditions.
