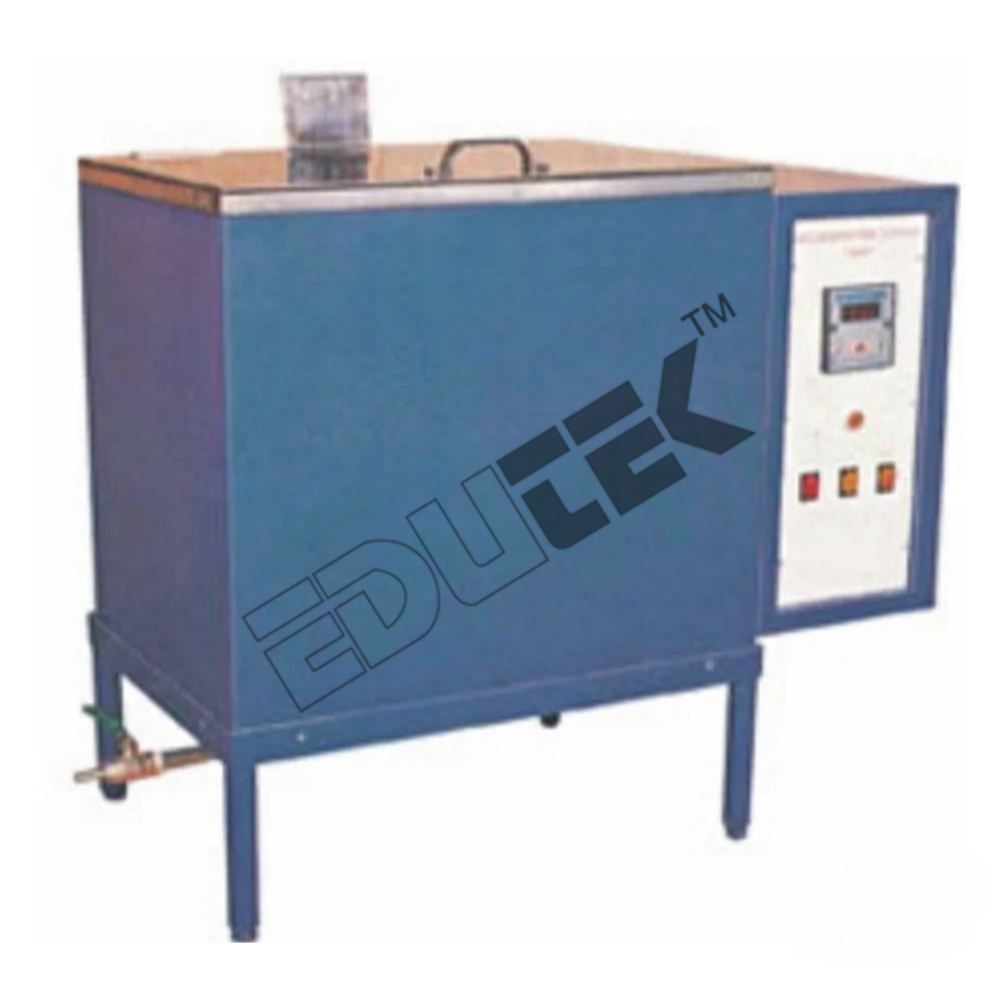

Curing Tank .

Name: Curing Tank .
Brand: EDUTEK INSTRUMENTATION
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Curing Tank . Specification

Feature
Automatic Temperature Control, Water Circulation, Low Maintenance

Warranty
1 year

Core Components
Heater, Digital Temperature Controller, Circulation Pump, Body

Frequency
50 Hz Hertz (HZ)

Measurement Range
Ambient to 60 C

Automation Grade
Semi-Automatic

Voltage
230 V AC Volt (v)

Temperature Range
5 C to 60 C Celsius (oC)

Capacity
100 Ltr Ltr

Power Source
Electric

Accuracy
1 C C

Equipment Materials
Stainless Steel Inner, Powder Coated Outer Body

Type
Laboratory Curing Tank

Usage
For Concrete Cube & Cylinder Curing

Display Type
Digital

Dimension (L*W*H)
900 x 600 x 600 mm Millimeter (mm)

Weight
Approx. 75 kg Kilograms (kg)

Cover Material
Stainless Steel Hinged Lid

Compliance
IS: 516/1959, ASTM C192/C192M-19 Standard Compliant

Service Support
Onsite Installation and Training Available

Mobility
Heavy Duty Castor Wheels

Operation Environment
Indoor Laboratory Use

Temperature Control
Digital PID Controller

Input Power
1200W (for 100L tank)

Safety Feature
Over Temperature Cut-Off, Low Water Level Alarm

Water Circulation
Inbuilt Recirculating Pump for Uniform Temperature

Tank Shape
Rectangular

Insulation Type
Polyurethane Foam Insulation

Finish
Corrosion-Resistant Powder Coating

Number of Baskets
2 to 8 Removable Sample Baskets (Based on Capacity)

Curing Tank . Trade Information

Minimum Order Quantity
1 Set

Payment Terms
Cash on Delivery (COD), Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Against Delivery (CAD), Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
2 Week

Sample Available
No

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, North India, East India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Curing Tank .

Curing Tank

a) 24 Hour cycle from time of mixing.
b) Controlled 35C or 100C 2C Curing Temperature for concrete.
c) Controlled 27C 2C Curing Temperature for grey cement.

The tank has been designed to accommodate 150mm/70.6mm cube mould up to 36/72 cube mould and fully insulated, complete with a hinged lid, heater, thermostat and re-circulated pump. Provision of two removable racks allowing free circulation of water around each mould. The pump, drain valves and electrical equipment are housed in a compartment located at one end of the tank. The Tank is heated by a immersion heater under normal conditions and refrigeration system for grey cement the temperature is controlled at 35 Degree celsius or 100 Degree celsius 2 Degree celsius / 27 Degree celsius +2 Degree celsius , expect for the 15 minutes after immersion of the freshly made specimens.

Superior Temperature Control for Precise Concrete Curing

The curing tank is equipped with a digital PID controller, enabling accurate temperature regulation from 5C to 60C with 1C precision. The inbuilt recirculating pump distributes water uniformly, eliminating hot or cold spots. Polyurethane foam insulation and a stainless steel hinged lid minimize heat loss, delivering consistent curing conditions essential for reliable test results in laboratory environments.

Robust Design and Easy Mobility

Constructed with a corrosion-resistant powder-coated exterior and a durable stainless steel inner chamber, the is built for longevity. Heavy-duty castor wheels facilitate effortless movement within laboratory spaces, while its compact, rectangular design fits seamlessly into standard setups. The removable sample baskets make sample handling and cleaning efficient and convenient.

FAQs of Curing Tank:

Q: How does the curing tank maintain uniform water temperature during operation?

A: The features an inbuilt recirculating pump that continuously circulates water throughout the tank, ensuring uniform temperature distribution. Additionally, a high-quality digital PID controller precisely maintains the set temperature, providing reliable curing conditions for concrete samples.

Q: What safety features are included in the curing tank for laboratory use?

A: Safety is prioritized with an over temperature cut-off mechanism and a low water level alarm. These features automatically prevent overheating and alert users when water levels are insufficient, reducing risks during extended unattended operation.

Q: When is it recommended to use this curing tank in the concrete testing process?

A: The curing tank should be used immediately after concrete cube or cylinder casting, during the mandated curing period as specified by relevant standards (IS: 516/1959, ASTM C192/C192M-19). It provides a controlled environment essential for accurate strength assessment of concrete samples.

Q: Where can the curing tank be installed and used?

A: Designed for indoor laboratory environments, the heavy-duty castor wheels make it easy to move and position within research, quality control, or educational lab spaces. Professional onsite installation and training are available to ensure correct setup and operation.

Q: What are the main benefits of using the compared to traditional curing methods?

A: The offers precise digital temperature control, automatic water circulation, and robust safety features, which together lead to uniform curing, improved test accuracy, reduced manual intervention, and easier maintenance. Its design enhances laboratory efficiency and sample consistency.

Q: How can users manage and retrieve samples from the tank?

A: Samples are placed in two to eight removable baskets, depending on the models capacity. These baskets simplify sample loading, retrieval, and facilitate cleaning, making routine lab operations faster and more efficient.
