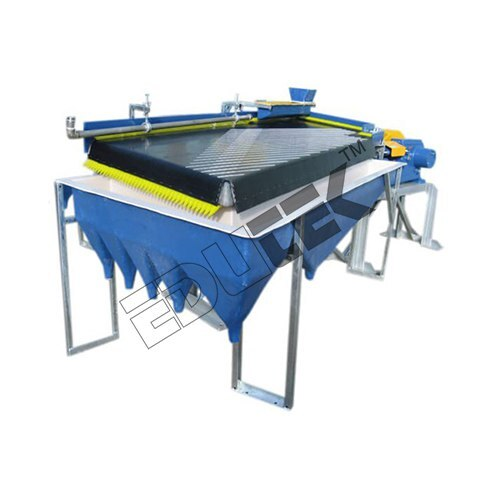

WILFLEY TABLE APPARATUS

About WILFLEY TABLE APPARATUS

Specification:

WIFELY TABLE APPARATUS

• This Wilfley Table unit is driven by head motion with a stroke adjustment of between 8 mm and 16mm (nominal).
• Head motion is self-lubricating.
•  Simple, robust design requires minimal maintenance.
• The deck is supported on sixteen carriers and is vibrated diagonally along the entire length.
• The deck is manufactured from high-quality timber, marine-grade plywood and covered with 5mm smooth rubber for maximum durability. (Black-white option).
• Specific riffle patterns can befitted to maximize metallurgical performance (by particle size-application data).
• Table tilt can be easily adjusted using a hand wheel, even while the machine is in operation.
• Supplied on its own galvanized steel base.
• The unit fitted with a 1.5kW (2HP) motor.
• Wear-resistant polyurethane fingers along the concentrate edge provide accurate cutting of concentrates.
• A wash-down hose and spray gun option.
