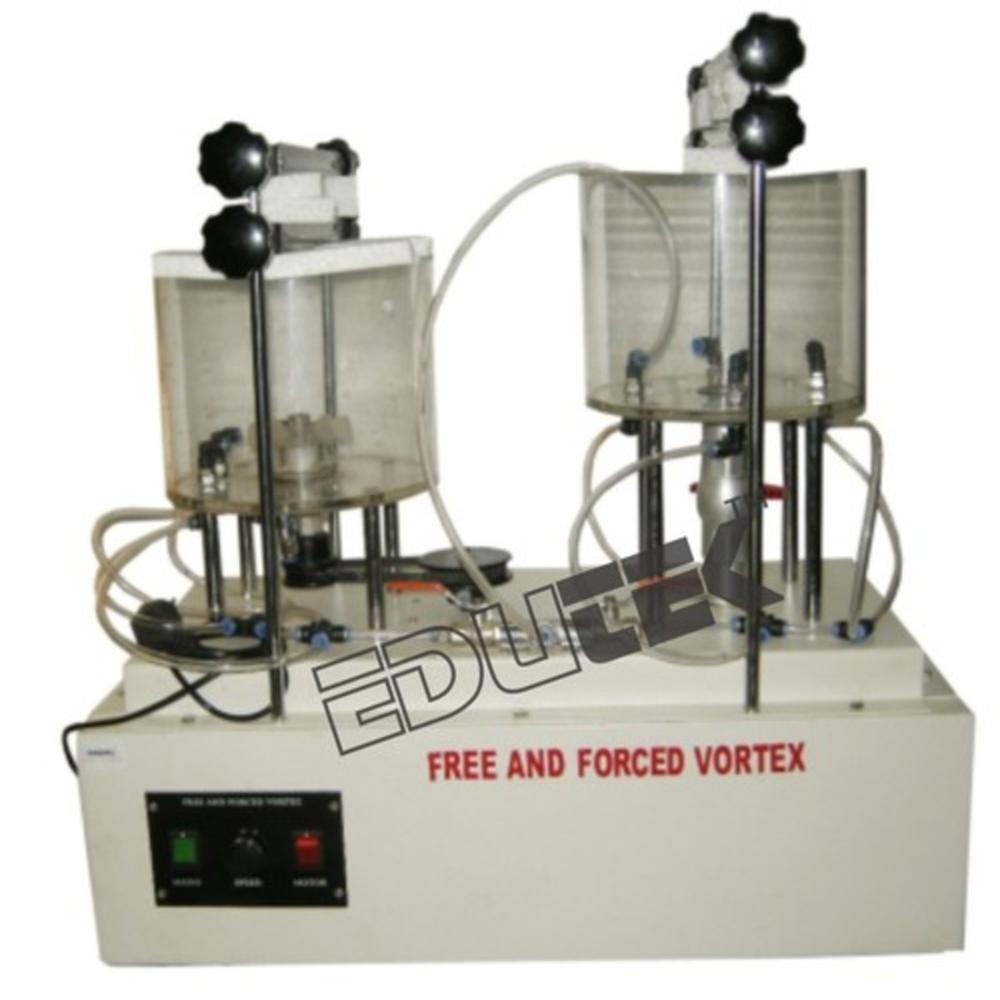

VORTEX FORMATION
Vortex Flow apparatus offered by us has been painstakingly designed by our team of expert professionals. This apparatus enables the researchers to determine the shape of the vortex profile. With the accuracy of the results it provides, this apparatus is very popular in the market. Created using optimum quality materials and cutting edg technology, this delivers flawless performance.
Learning Objectives / Experiments
- Visualisation of various vortices
- Investigation of free and forced vortices
- Representation of surface profiles
- Determination of velocity
Specification:
- Generation and investigation of vortices
- Transparent tank allows visualisation of vortex formation
- Two nozzles for radial water supply (free vortex)
- Two nozzles for tangential water supply (forced vortex)
- Different inserts for the water drain to generate free vortex
- Impeller for generating a forced vortex
- Point gauges detect the surface profile
- Flow rate determined by base module
- Water supply using base module or via laboratory supply
Technical Data:
- Tank
- Diameter: 250mm
- Height: 190mm
- 4 inserts for the water drain
- Diameter: 8, 12, 16 and 24mm
- Impeller with 3 blades
Vertical point gauge:
- 6 movable rods
Horizontal point gauge:
- 2 movable rods
Measuring tube, movable:
- Horizontal 0...90mm, vertical 70...190mm
- Diameter: 4mm
Dimensions and Weight:
- LxWxH: 690x420x715mm
- Weight: approx. 22kg
