VERIFICATION CLARKE'S MAXWELL RECIPROCAL THEOREM APPARATUS

Send Inquiry

Request To Call Back

VERIFICATION CLARKE'S MAXWELL RECIPROCAL THEOREM APPARATUS

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VERIFICATION CLARKE'S MAXWELL RECIPROCAL THEOREM APPARATUS Specification

Capacity
Standard laboratory scale

Accuracy
0.01 mm

Power Source
Manual (no electricity required)

Product Type
VERIFICATION CLARKES MAXWELL RECIPROCAL THEOREM APPARATUS

Feature
Manual operation, easy setup, accurate measurement of deflection

Voltage
N/A (Manual)

Measurement Range
0-25 mm (deflection)

Temperature Range
Ambient

Model No
TMC - 5642

Core Components
Test beam, pointers, weight hanger, dial gauge

Application
Mechanical Engineering Lab Equipment

Usage
Mechanical Engineering Lab Equipment

Automation Grade
Manual

Equipment Materials
Mild steel frame, stainless steel pointer, alloy steel test beam

Type
Reciprocal Theorem Apparatus

Display Type
No electronic display; uses analog dial gauges

Dimension (L*W*H)
Approx. 55 x 18 x 14 cm

Weight
Approx. 8-12 kg

VERIFICATION CLARKE'S MAXWELL RECIPROCAL THEOREM APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About VERIFICATION CLARKE'S MAXWELL RECIPROCAL THEOREM APPARATUS

Specification:

VERIFICATION CLARKES MAXWELL RECIPROCAL THEOREM APPARATUS

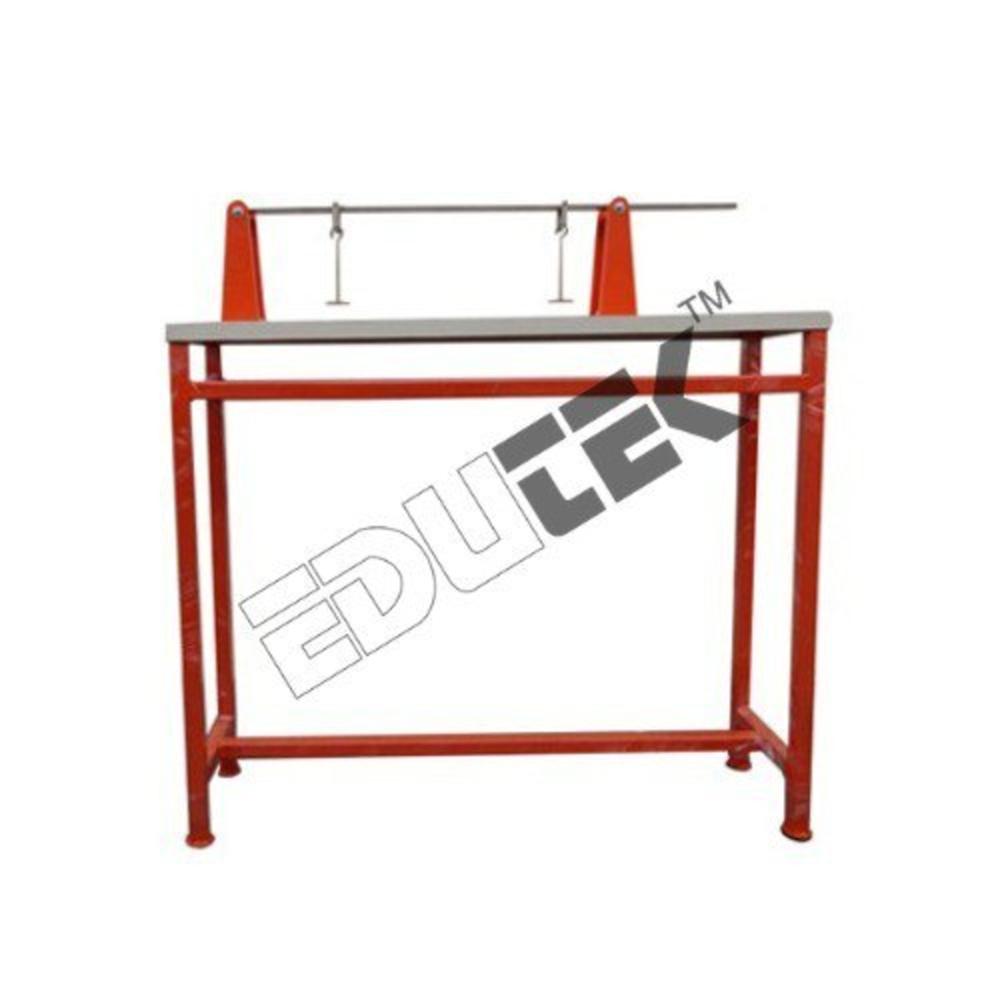

Clarkes Maxwell Reciprocal TheoremApparatus.

It should consist of a mild steel beam100cm long and 1.25cm x 4mm in cross section with graduations at every 10cmalong the length.

It should be supported on two knifeedge supports 70cm apart with a 30cm overhang on one side.

Demonstrate Maxwells Reciprocal Theorem with Precision

This apparatus is purpose-built to help students grasp the principles of Maxwells Reciprocal Theorem through hands-on experimentation. Featuring a powder-coated bench-top frame, premium alloy test beam, high-accuracy dial gauges, and stainless steel pointers, the setup ensures that each measurement is both accurate and reliable. The analog dial gauge allows for readings down to 0.01 mm, providing immediate feedback without electronic displays or power requirements. Ideal for courses in mechanical engineering, this equipment supports curriculum requirements while promoting safe laboratory practices.

Effortless Setup and User-Friendly Operation

Engineered for straightforward assembly and minimal maintenance, the Reciprocal Theorem Apparatus is fully manual and requires no external power. All core componentstest beam, pointer, weight hanger, and dial gaugeare securely bench-mounted, allowing easy load application using supplied weights. The apparatus comes pre-calibrated with a comprehensive user manual, enabling instructors and students to begin the experiment swiftly. Export-quality packaging ensures safe and professional delivery to institutions nationwide or abroad.

FAQs of VERIFICATION CLARKES MAXWELL RECIPROCAL THEOREM APPARATUS:

Q: How is the load applied on the Clarkes Maxwell Reciprocal Theorem Apparatus?

A: The apparatus uses direct load application by hanging calibrated weights onto the appropriate points of the test beam. This manual method provides precise control over applied forces, enhancing the accuracy of deflection measurements.

Q: What is the measurement range and accuracy of the included dial gauge?

A: The mechanical dial gauge allows for accurate measurement of beam deflections from 0 to 25 mm, with a high resolution of 0.01 mm. This ensures that even the smallest deflections can be precisely recorded during experiments.

Q: When should I re-calibrate the apparatus after delivery?

A: The equipment is supplied pre-calibrated to ensure accuracy out-of-the-box. Re-calibration is typically only necessary if you observe unusual readings, after considerable use, or if the dial gauge or beam has been replaced.

Q: Where can this apparatus be set up and used most effectively?

A: It is designed for bench-top use in educational settings such as mechanical engineering laboratories, technical institutes, and engineering colleges. Its manual operation and ambient temperature suitability make it adaptable to most lab environments.

Q: What does the instruction manual include, and how does it facilitate usage?

A: The comprehensive instruction manual guides users through assembly, calibration, operation, and safety precautions, making it easy for both students and educators to follow experimental procedures and obtain reliable results.

Q: How does using this apparatus benefit engineering students?

A: Hands-on experimentation with the Reciprocal Theorem Apparatus allows students to develop practical understanding of structural analysis concepts, specifically Maxwells Reciprocal Theorem, while honing measurement and data interpretation skills.
