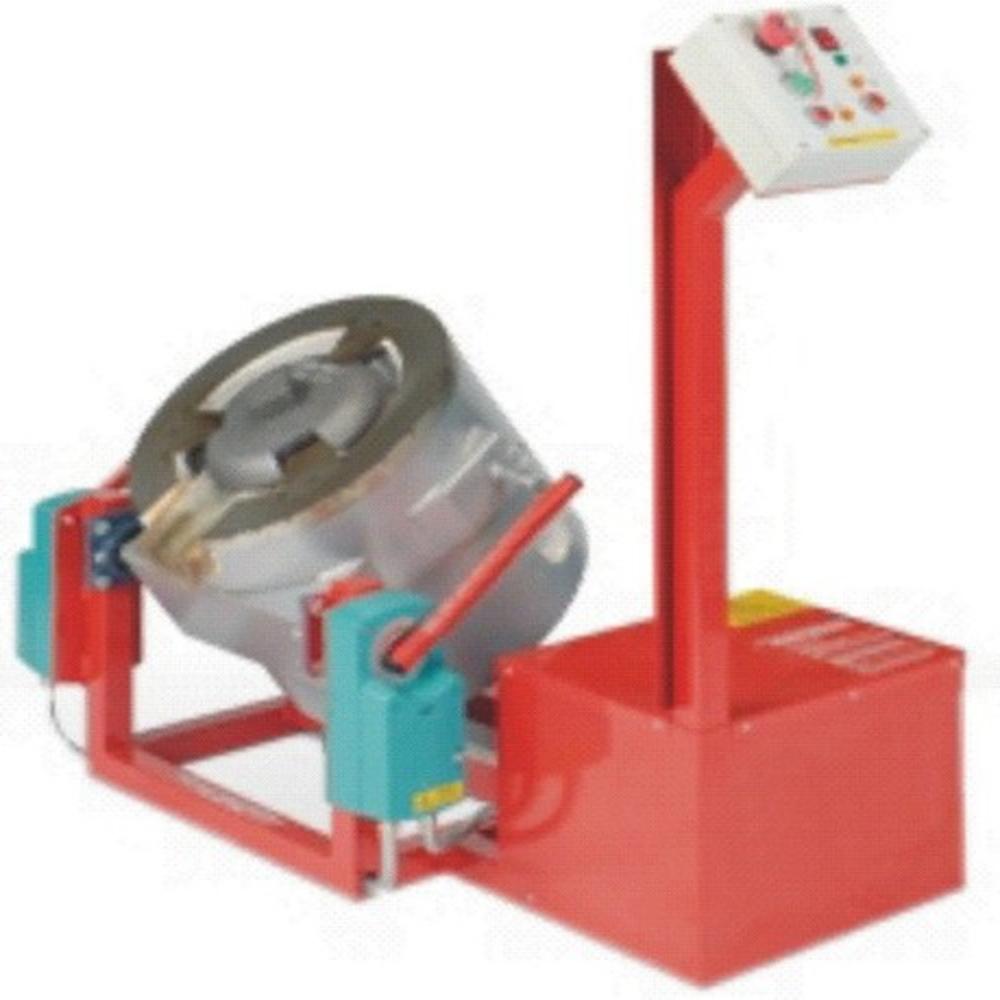

MELTING CRUCIBLE FURNACE

Price 400.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MELTING CRUCIBLE FURNACE Specification

Product Type
MELTING CRUCIBLE FURNACE

Warranty
1 YEAR

Classification
MELTING CRUCIBLE FURNACE

Usage
USE TO MELT METALS

Voltage
220-240 Volt (v)

Material
METAL

Power
220-240 Volt (v)

Feature
Highly Efficient

Capacity
4.2 Ltr

Color
RED

Power Source
MANUAL

Accuracy
100 % %

Equipment Materials
METAL

Type
MELTING CRUCIBLE FURNACE

Display Type
NONE

About MELTING CRUCIBLE FURNACE

MELTING CRUCIBLE FURNACE

Specifically designed for use in industry and education. Capable of melting a range of metals including aluminium,

brass, bronze, gold and silver. All valves and pipe work, including the whisper quiet blower fan, are included within the

self-contained cabinet. Safe operation is by panel mounted controls. Ignition is automatic and there is automatic flame

control with no user interaction required. On ignition, the crucible furnace is automatically put on low heat for about 5

minutes to preheat the chamber and crucible pot before ramping up to full heat input. This helps to reduce the risk of

thermal shock. With a motorised safety tilt system that is push-button operated from rest position to pouring position

and back. The unit can be held in one position by continuously pressing and releasing the tilt button. It can re-establish

firing conditions, maintain correct gas/air ratios and shut off safely if the mains electrical power or gas is cut off.

Efficient insulation and refractory materials give fast heating

KEY FEATURES

Whisper quiet blower fan
Super efficient insulation
Push button, no volt release starter
Requires manual restart after
Power failure
Electronic flame failure protection
With automatic ignition
Capacity of 4.2 litres
Designed to work with natural gas,
Propane or butane.
Melts 11 kg of Copper or Zinc in 35 minutes and 4 kg of Aluminium in 25 minutes
Maximum temperature 1200ÂC
Push-button operated motorised safety tilt system
Capacity: 4.2 litres to brim
Typical Melting Times from Cold : Aluminium 4kgs 25 minutes Copper/Zinc 11kgs 35 minutes
DIMENSION : 1050 mmÃ—500 mmÃ— 883 mm
Max. Temp. 1200Â C Electrics 120 Watts - 220 - 240 volt single phase

Exceptional Efficiency for Laboratory Melting

Specifically designed for laboratory settings, this Melting Crucible Furnace offers highly efficient operation and outstanding temperature control. Its manual mechanism ensures hands-on accuracy, ideal for research, small batch processing, or educational purposes. Built from high-quality metal, it promises resilience and reliable results, making it a dependable asset for metalwork laboratories.

Durable Design and Sizable Capacity

With an 11 kg capacity and 4.2-liter melting chamber, this furnace is capable of handling a wide range of metal samples. Its sturdy, all-metal constructionprotected by a bold red exteriormaximizes safety and longevity, even under regular use. This combination of size and build quality makes it perfect for repeated use in rigorous laboratory conditions.

FAQs of MELTING CRUCIBLE FURNACE:

Q: How does the Melting Crucible Furnace operate manually in a laboratory setting?

A: The Melting Crucible Furnace operates using a manual power source, meaning heating and melting are controlled directly by the user. This setup allows laboratory personnel to monitor and adjust the melting process precisely, ensuring metals reach the desired temperature and consistency.

Q: What types of metals can be melted with this furnace, and what is its maximum capacity?

A: Designed for laboratory applications, the furnace can melt a variety of metals up to a total of 11 kg (4.2 liters) per batch. Its robust metal construction allows you to work with common laboratory metals such as gold, silver, copper, and alloys, offering flexibility for different experiments or processing tasks.

Q: When should I use a Melting Crucible Furnace in a laboratory environment?

A: This furnace is suitable for any laboratory procedure that requires melting metals with high precision and consistency, such as sample preparation, material analysis, metallurgy research, and educational demonstrations. Its reliable performance guarantees accurate results during these processes.

Q: Where can this Melting Crucible Furnace be installed, and are there specific requirements?

A: The furnace is designed for laboratory installation and can be placed on stable, heat-resistant surfaces with access to a 220240 volt power connection. Ensure the installation area is well-ventilated and meets laboratory safety standards to facilitate safe operation and handling of melted metals.

Q: What is the process for melting metals in this crucible furnace?

A: To melt metals, place the chosen sample into the crucible chamber, set up the manual controls according to the metals melting point, and gradually increase the temperature. Continual monitoring ensures that the process remains under control, producing homogenous melts suitable for analysis or further processing.

Q: What benefits does the Melting Crucible Furnace offer compared to other laboratory melting solutions?

A: With its 100% accuracy, high efficiency, and sturdy metal build, this furnace provides reliable results and long-term durability. Its manual operation allows for greater control over the melting process, while the sizable capacity accommodates substantial laboratory workloads. Additionally, the 1-year warranty offers extra peace of mind for users.
