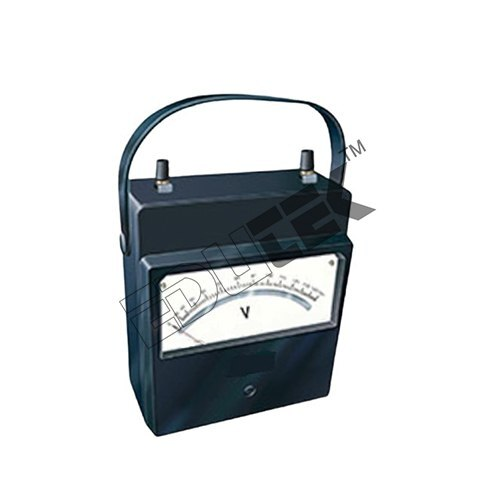

TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER

Send Inquiry

Request To Call Back

TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER

Get a Price/Quote

MOQ : 1 Piece

TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER Specification

Power Supply
Not required (analog moving coil type)

Display Type
Analog scale with pointer

Power Source
Self-powered by measured circuit

Features
Portable, robust construction, clear display, multi-range, accurate

Components
Moving coil meter, 3-position range switch, voltage input terminals

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Response Time
Instantaneous analog response

Output
Needle position on analog dial

Resolution
Depends on scale; typically 0.1V, 1V, 5V per division

Input
DC voltage

Operating Temperature
0°C to 45°C

Product Type
TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
3 ranges (typically 0-1V, 0-10V, 0-30V)

Supply Voltage
DC; up to 30V (depending on range)

Size
Medium handheld

Dimension (L*W*H)
110 x 90 x 55 mm (approx.)

Function
Measures DC voltage across three selectable ranges

Color
Black front with transparent window and white scale background

Weight
Approx. 300g

Current Rating
low current, typically less than 1mA full scale

Thickness
Approx. 55 mm

Capacity
Capable of measuring up to 30V DC

Mounting Type
Portable, bench-top usable

Terminal Type
Screw or plug-in terminals for test leads

Scale Length
85 mm approx.

Case Material
Durable Bakelite or hard plastic

Dial Markings
Clear black print with three color-coded voltage scales

Accuracy
Typically 2% of full scale

Internal Resistance
High for voltage measurement (value depends on range selected)

Protection
Fuse protected or overload protected input

Pointer Type
Knife-edge pointer to reduce parallax error

Calibration
Factory calibrated

TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER

Unlock the benefits of precise voltage measurement with the illustrious TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER. Designed for engineering excellence, this distinguished voltmeter offers superb accuracy at 2% of full scale, covering three ranges up to 30V with its high internal resistance and robust Bakelite or hard plastic casing. Featuring clear black dial markings, a knife-edge pointer, and overload protection, it is self-powered, factory-calibrated, and instantly responsive. Grab Yours today with this exclusive promotionideal for laboratories, workshops, and expert fieldwork, exporting from India.

Superior Engineering Use, Robust Material, and Precise Functionality

The TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER is expertly tailored for professional engineering and electronics applications. Crafted from durable Bakelite or hard plastic, it ensures resilient portability and clear, easy-to-read measurements. Superb for both bench-top and on-site use, its multi-range capability and knife-edge pointer set it apart. With high internal resistance for accurate DC voltage readings, this voltmeter is an illustrious tool for laboratories, manufacturing plants, and the discerning engineer.

Sample Availability, Premium Packaging, and Trusted Certifications

Delivered with protective packaging to ensure optimum condition, this voltmeter can be supplied as a sample for proposal amount assessment or bulk expenditure planning. Each piece is tested and certified for performance and safety, upholding distinguished standards of quality. Packaging is tailored for export as well as domestic supply, embodying reliability from manufacturer to client. Experience prompt delivery on request, dedicated support, and genuine certification for your engineering needs.

FAQs of TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER:

Q: How does the TRIPPLE RANGE MOVING COIL DC PORTABLE VOLTMETER operate without an external power source?

A: The voltmeter is self-powered, drawing the minimal current required for operation directly from the measured circuit, eliminating the need for an external power supply.

Q: What are the main advantages of using this particular moving coil DC voltmeter?

A: The primary benefits include its multi-range accuracy, robust and portable construction, knife-edge pointer for reduced parallax error, durable materials, and clear analog display with three selectable voltage ranges up to 30V.

Q: Where can this voltmeter be effectively used?

A: It is ideally suited for engineering laboratories, electronics workshops, educational settings, and on-site field applications requiring precise DC voltage measurement.

Q: What is the process for calibration and is recalibration needed?

A: Each unit is factory calibrated before shipping to ensure precise measurements. Periodic recalibration is recommended based on usage frequency and application-specific standards.

Q: How is the voltmeter protected from overloads during use?

A: The input is fuse protected or equipped with overload protection to safeguard both the instrument and the user during high-voltage measurements.
