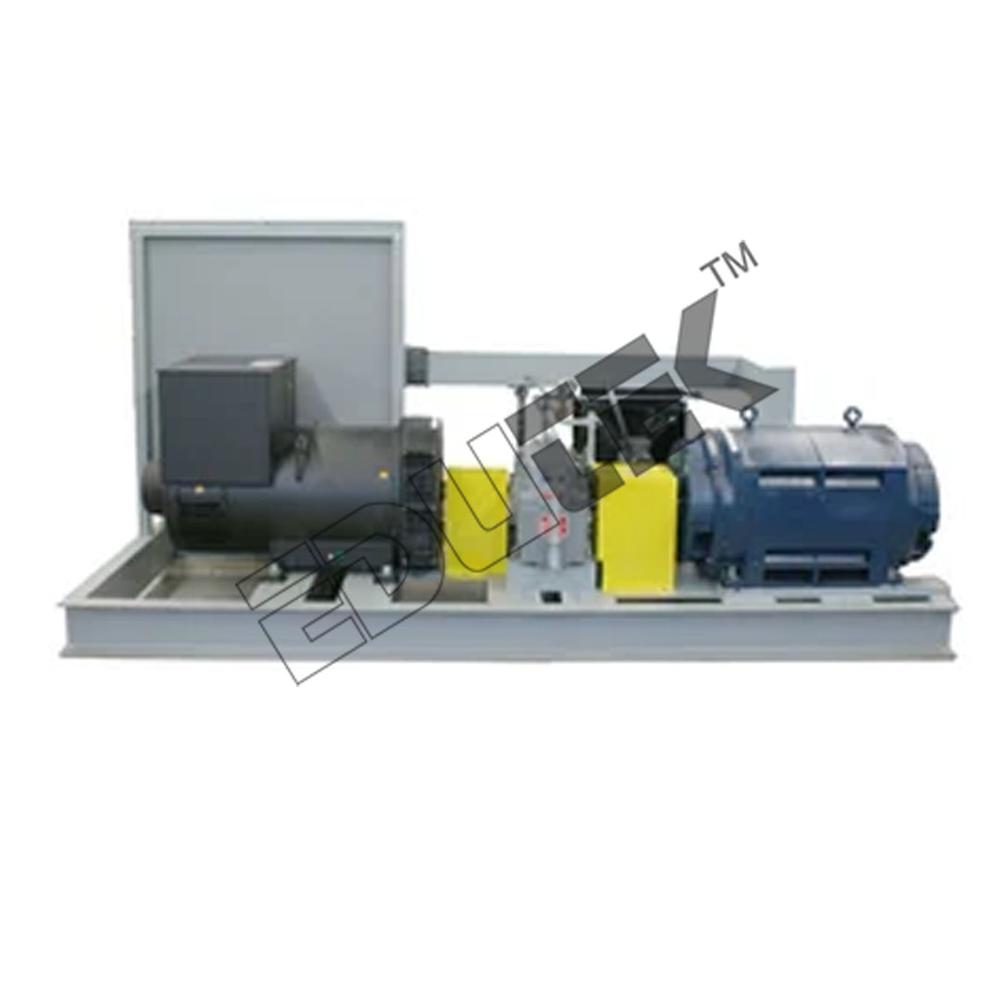

Send InquiryMotor Generator Sets
Price 100.0 INR/ Unit
MOQ : 1 Unit
Motor Generator Sets Specification
- Operating Temperature
- -10C to 45C
- Interface
- Terminal block connections
- Usage
- Industrial, Laboratory, Power Backup
- Power Supply
- Three Phase Electric
- Power Source
- Electric
- Input
- 415 V, 3 phase AC
- IP Rating
- IP55
- Sensors Specification
- Voltage, current and temperature sensors
- Display Type
- Analog & Digital meters
- Response Time
- Instantaneous
- Features
- Robust construction, overload protection, noise reduction
- Thermal Conductivity
- Standard steel enclosure
- Components
- Electric Motor, Generator, Coupling, Control Panel
- Output
- Varies as per design (commonly 110 V, 220 V, 415 V)
- Product Type
- Motor Generator Set
- Application
- Voltage Conversion, Isolation, Frequency Conversion
- Rated Voltage
- 415 V
- Supply Voltage
- 415 V
- Size
- Standard sizes, customizable
- Dimension (L*W*H)
- 2100 mm x 950 mm x 1100 mm
- Function
- Converts electrical energy from one voltage and current form to another
- Color
- Blue
- Weight
- Approx 1500 Kg
- Thickness
- Depends on enclosure, typically 5-8 mm
- Capacity
- 10 KVA to 500 KVA
- Current Rating
- Varies by model, typically 15 A to 2500 A
- Frequency
- 50 Hz or 60 Hz
Motor Generator Sets Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID), Cash Advance (CA), Letter of Credit (L/C), Telegraphic Transfer (T/T), Cheque
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- carton box, export quality also available
- Main Export Market(s)
- Middle East, Western Europe, Africa, Asia, Eastern Europe
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001 ,CE
About Motor Generator Sets
Motor Generator Sets
Specifications of Motor Generator Sets
Motor
- Induction, 1500 RPM, 4-pole.
- Continuous duty, Class F insulation, open drip-proof.
- Selection of 50 Hz, 3-phase input voltages to include: 380 V or 416 V.
- Generator.
- Brushless synchronous, 1800 RPM, 4-pole.
- Continuous duty, Class F insulation, open drip-proof.
- Selection of 60 Hz output voltages to include: 120/208 V or 277/480 V, 3-phase Rated at 0.8 power factor to insure proper handling of inductive loads.
Mechanical Construction
- Motor and generator mounted on rigid steel base.
- Reduction gear drive system.
- Complete OSHA coupling guard.
- Forklift or pallet jack provisions.
Standard Control Systems
Each motor-generator set is equipped with a separate free-standing control panel. The standard package includes the following components
Motor Controls
- Motor starter with adjustable overloads.
- Start-Stop push buttons with terminal strip for remote start/stop.
- Control power transformer with fusing.
- Pilot light to indicate Motor Run.
- Pilot light to indicate Reduction Gear Low Oil Flow.
Generator Controls
- Analog meter package to include voltmeter, ammeter and frequency meter.
- Voltmeter and ammeter phase selector switches (3-phase systems).
- Voltage regulator, ±1% regulation accuracy, with automatic buildup and rheostat for control of regulated voltage.
- Output circuit breaker, molded case, to protect generator against short circuit or prolonged overload.
- Pilot light to indicate 60 Hz Load On.
Engineered for Flexibility and Reliability
Motor generator sets are designed for flexibility, offering options for either flexible or rigid coupling based on application requirements. With base frame mounting and included vibration dampers, these units minimize operational noise and ensure stable performancevital for continuous industrial use. The robust, powder-coated sheet metal enclosure (58 mm thick) not only enhances durability but also protects internal components from environmental factors.
Advanced Control and Safety Features
Each unit incorporates a comprehensive control panel equipped with MCCB protection, voltmeter, ammeter, frequency meter, and indicator lights. Both analog and digital meters offer precise monitoring, while terminal block connections and included sensors for voltage, current, and temperature enable seamless integration and safety in operationeven in challenging environments.
Multiple Applications and Customization
Ideal for voltage conversion, electrical isolation, and frequency changes, these sets accommodate a wide range of industrial and laboratory needs. Output voltages are configurable as per design to suit specific requirements. Available in standard or customized sizes, they handle varied current ratings and support operation in temperatures from -10C to 45C, making them suitable across diverse locations in India and beyond.
FAQs of Motor Generator Sets:
Q: How does a motor generator set convert electrical energy to a different voltage or current form?
A: The motor generator set uses an electric motor coupled to a generator. The motor receives input power (typically 415 V, three-phase) and drives the generator, which outputs electrical energy in the desired voltage and current form (commonly 110 V, 220 V, or 415 V), allowing for voltage and frequency conversion as needed.Q: What benefits do vibration dampers and a sheet metal enclosure provide?
A: Vibration dampers isolating the set reduce operational noise and equipment wear, while the powder-coated sheet metal enclosure protects the device from dust, moisture, and impact. Together, they ensure quiet, reliable operation and extend the units service life.Q: When should I consider using a motor generator set for my facility?
A: A motor generator set is ideal when you need reliable voltage conversion, electrical isolation, or frequency transformation for sensitive or critical equipment. They are commonly used in industrial settings, laboratories, or as power backup where equipment must operate efficiently under varied electrical conditions.Q: Where can this motor generator set be installed, and what are the mounting options?
A: These sets are designed for installation in indoor industrial or laboratory environments and are base frame mounted. Vibration dampers come pre-installed to ensure stability. They can be placed wherever a robust, stationary voltage conversion solution is needed.Q: What process is involved in monitoring and controlling the motor generator set?
A: Operators use the integrated control panel, which features MCCB protection, analog and digital meters, and indicator lights. Terminal block connections and inbuilt voltage, current, and temperature sensors allow for continuous monitoring and safe operation, reducing the risk of overload or malfunction.Q: How does the air-cooled, self-lubricated bearing system impact maintenance?
A: The air-cooled design and self-lubricated bearings mean the unit requires less maintenance compared to water-cooled or externally lubricated systems. These features ensure the motor generator set operates efficiently with minimal attention, maximizing uptime.Q: What is the primary usage and benefit of a motor generator set in industrial applications?
A: Primarily, these sets facilitate voltage and frequency conversion or electrical isolation, protecting equipment and ensuring compatibility with different power systems. Their robust construction, high efficiency, and built-in safety features provide reliable, long-term benefits for various industrial, laboratory, and power backup applications.
