TRIAC CHARACTERISTICS

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TRIAC CHARACTERISTICS Specification

Thermal Conductivity
Standard PCB thermal dissipation

Input
AC signal input

Components
Includes TRIAC, resistors, switches, connectors, binding posts, indicator LEDs.

Interface
Screw and binding post terminals for easy connectivity.

Power Source
AC mains supply

Power Supply
AC mains

Output
Output across TRIAC terminals for characteristic measurements.

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Resolution
Depends on external measuring instruments (not onboard)

Operating Temperature
0C to 50C

Features
The Circuit layout is designed on FR-4 type Glass Epoxy PCB with masked copper track lines.

Response Time
Instantaneous switching with correct triggering

Product Type
TRIAC CHARACTERISTICS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
230V AC

Supply Voltage
230V AC

Size
Standard educational trainer module

Dimension (L*W*H)
260mm x 165mm x 35mm

Function
Controls and tests TRIAC behavior in electronic circuits.

Color
Standard PCB green with masked copper tracks.

Weight
Approx. 450 grams

Warranty
1 Year

Thickness
1.6mm (PCB)

Current Rating
Up to 10A (typical for TRIAC used)

Capacity
Designed for single-user or small group laboratory experiments

Frequency
50Hz AC (mains)

TRIAC CHARACTERISTICS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cheque, Letter of Credit (L/C), Cash Advance (CA), Telegraphic Transfer (T/T)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About TRIAC CHARACTERISTICS

Specification:

TRIAC CHARACTERISTICS

Objectives: To observe the forward and reverse bias V-I Characteristics of TRIAC and plot the graph, and to observe the break over voltages of TRIAC.

This unit consists of a variable power supply of 0-35V,0-12V,300mA,fixed AC power supply,18V,250mA.

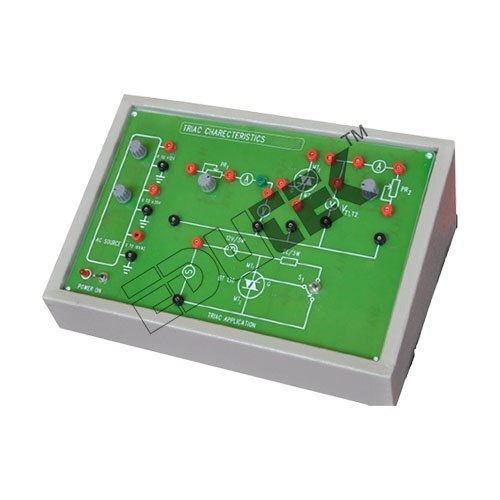

The trainer constructed with TRIAC with variable Load, also one DC lamp application board in built.

The Circuit layout is designed on FR-4 type Glass Epoxy PCB with masked copper track lines.

All testing points are Provision with 2mm socket for proper connectivity.

Set of 2mm patch cards and user manual is accompanied with this kit.

Robust Design for Educational Labs

Crafted from FR-4 grade glass epoxy, the trainer is built to withstand the rigors of frequent laboratory use. The PCB features masked copper tracks to enhance durability and ensure clear circuit visualization, making it particularly suited for repeated handling by students in engineering and electronics training programs.

User-Friendly and Safe Operation

With plug-and-play wiring, factory-soldered assembly, and LED switching indicators, this instrument guarantees straightforward setup and operation. Multiple accessible test points allow users to monitor TRIAC parameters directly, while built-in fuse protection safeguards against overloads, making it both secure and intuitive for new learners.

Comprehensive Training Support

Each module includes a meticulously developed instructor manual, offering detailed guidance for operation, experimental procedures, and troubleshooting. Users benefit from both technical service support and clear, step-by-step instructions, facilitating smooth integration into electronic engineering curricula.
