Transformer Trainer

Get a Price/Quote

MOQ : 1 Piece

Transformer Trainer Specification

Feature
Portable, Easy Operation, Safety Protected

Capacity
2 KVA Pcs/hr

Accuracy
1% of full scale %

Frequency
50 Hz Hertz (HZ)

Temperature Range
0 C to 50 C Celsius (oC)

Measurement Range
0 250V / 0 5A

Power Source
AC Electric

Automation Grade
Manual

Core Components
Transformer, Control Panel, Load Bank

Model No
TRANS-TRN-2KVA

Voltage
230 V AC Volt (v)

Equipment Materials
Mild Steel (MS), Powder Coated

Type
Electrical Laboratory Trainer

Usage
Laboratory, Educational Institutes

Display Type
Digital

Dimension (L*W*H)
600 mm x 400 mm x 350 mm Millimeter (mm)

Weight
Approx. 30 Kg Kilograms (kg)

Test Points
Multiple Test Points for Measurement

Phase
Single Phase

Protection
Overload and Short Circuit Protection

Color
Blue & Grey

Cooling
Air Cooled

Included Accessories
Connecting Wires, User Manual

Input Supply
230V AC 10%, 50Hz

Output Load Type
Resistive Load Bank (Included)

Suitable For
Engineering Colleges, Polytechnics, Technical Training Centers

Mounting Type
Bench Top

Transformer Trainer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Transformer Trainer

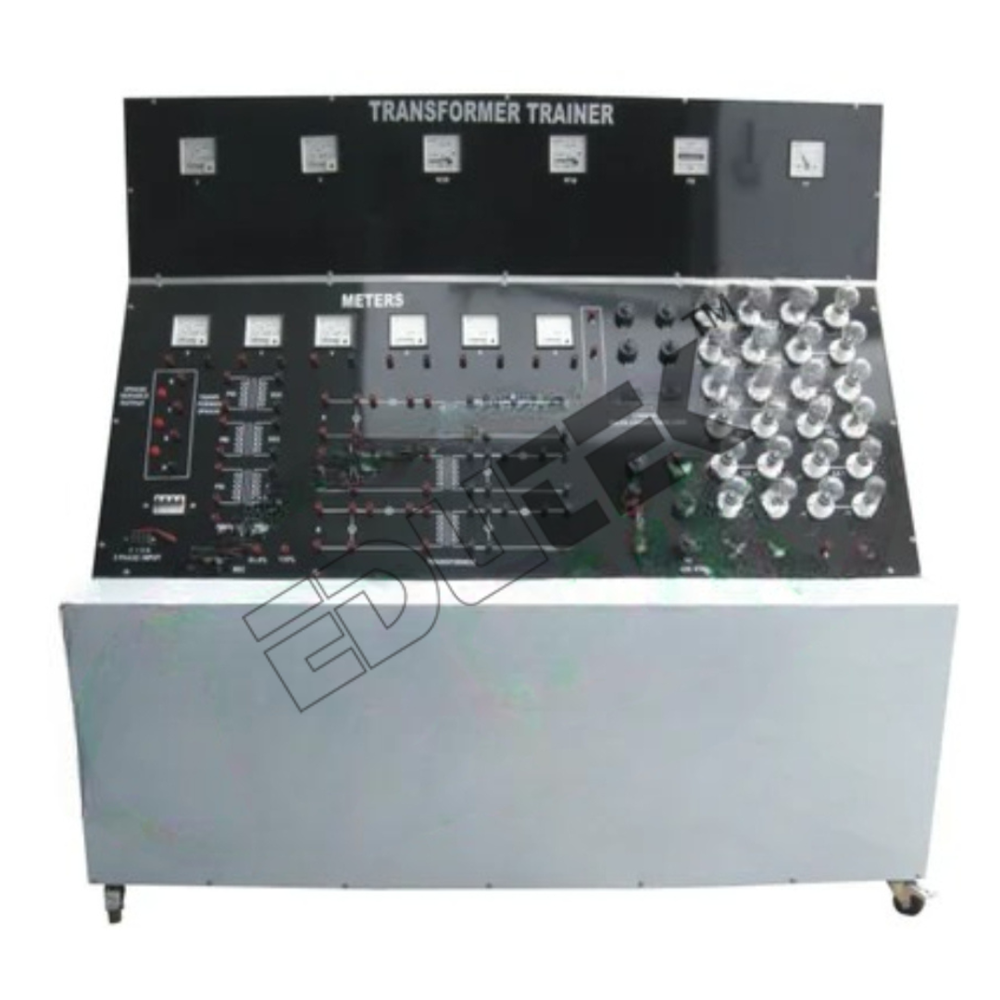

TRANSFORMER TRAINER

A Single and Three Phase Transformer Experimental Trainer specially designed to help students understand about the various aspects in transformer design and operation such as magnetic fields and circuits, equivalent circuits, phasor diagrams, loss components, load testing and regulation, transformer components etc.

Specification:

Base Station: This unit serves as the platform for carrying out student experiments. The unit contains two ammeters and two voltmeters which are used to do the voltage and current measurement during the experiments. A clear diagram of a transformer is shown on the base station and is completed with 4mm terminal connections to build transformer circuits. Circuit protection is provided to prevent short circuit and over current conditions.

Power requirement : 220V/380, 50/60Hz

Comprehensive Training Solution

Designed specifically for educational institutions, the TRANS-TRN-2KVA Transformer Trainer offers both functionality and safety for hands-on transformer studies. Its robust construction and integrated safety features make it ideal for laboratory-based training and technical skill development.

User-Friendly Operation

With a digital display, multiple test points, and easy-to-connect accessories, this trainer is straightforward to operate. Its clear measurement range and manual controls ensure that students can safely and accurately perform practical transformer experiments.

Safety and Reliability Built-In

Equipped with overload and short circuit protection, this trainer emphasizes user safety during laboratory exercises. The air-cooled design ensures consistent performance, while the powder-coated mild steel structure provides long-lasting durability in educational environments.

FAQs of Transformer Trainer:

Q: How is the Transformer Trainer installed and where can it be used?

A: The Transformer Trainer is designed for bench-top mounting and requires a standard 230V AC supply. It is ideal for use in engineering colleges, polytechnics, technical training centers, and other educational laboratories across India.

Q: What core components are included with the Transformer Trainer?

A: This trainer comes with a transformer, control panel, resistive load bank, connecting wires, and a user manual, enabling students to perform various transformer experiments right out of the box.

Q: When should the overload and short circuit protection features be checked?

A: Before each usage, it is recommended to check that safety featuresoverload and short circuit protectionare functional to ensure the protection of both equipment and users during experiments.

Q: How are measurements taken and displayed by the Transformer Trainer?

A: Measurements are accessible at multiple test points and are displayed digitally. The equipment provides accurate voltage (0250V) and current (05A) readings with an error margin of 1% of full scale.

Q: What is the operational process for conducting experiments with this trainer?

A: To begin, connect the included wires as per the user manual, set up the load bank, and use the control panel to manage operations. Follow safety protocols, and utilize the digital display and test points for monitoring results during experimentation.

Q: What benefits do educational institutes gain from using this Transformer Trainer?

A: Institutes benefit from a practical, protected learning platform that enhances students understanding of transformer operations, testing procedures, and safety measures in a controlled laboratory environment.
