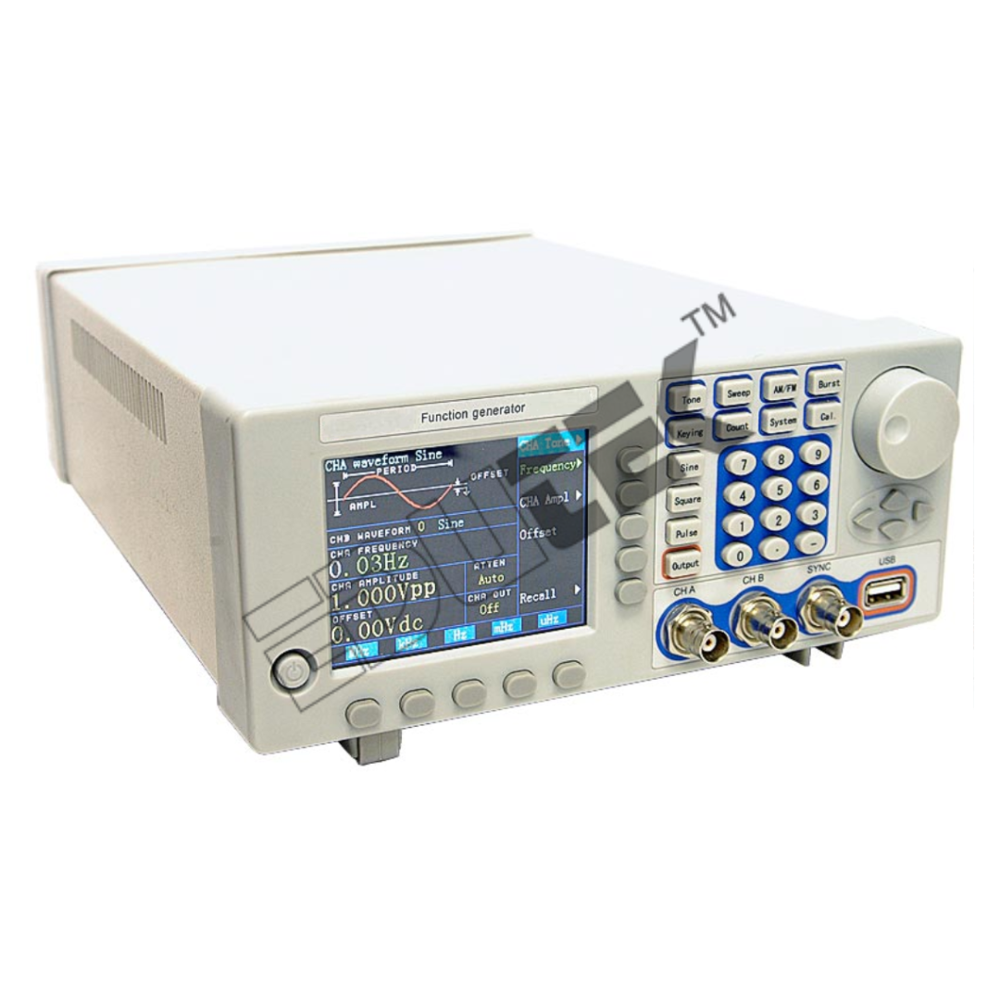

Send InquiryFUNCTION GENERATOR
MOQ : 1 Piece
FUNCTION GENERATOR Specification
- Temperature Range
- 0 C to 40 C Celsius (oC)
- Automation Grade
- Manual
- Accuracy
- 0.1% %
- Warranty
- 1 year
- Frequency
- 0.1 Hz to 20 MHz Hertz (HZ)
- Feature
- Multiple waveform generation
- Power Source
- AC 110-240V
- Voltage
- 5V DC output AC input Volt (v)
- Measurement Range
- 0 to 20 MHz
- Core Components
- Processor Display Connectors
- Equipment Materials
- Metal Plastic
- Type
- Digital Function Generator
- Usage
- Signal generation for testing and analysis
- Display Type
- LCD
- Dimension (L*W*H)
- 220 x 250 x 90 mm Millimeter (mm)
- Weight
- 2.5 kg Kilograms (kg)
About FUNCTION GENERATOR
FUNCTION GENERATOR
Edutek Instrumentation are the Best Manufacturer and Exporter Company in India
Features:
- Built-in 6 digits counter up to 15MHz equal accuracy
- Full output protection
- Economical type, low cost
Specifications
- Amplitude: 20Vp-p (1M load); 10Vp-p (50 load).
- Attenuation : 0/20/40/60dB.
- Distortion factor: 20 Hz 20 KHz 1%.
- Square wave, Rise or fall time: 30ns.
- Power source: 220-240VAC 10%. 60Hz/50Hz.
FAQs of FUNCTION GENERATOR:
Q: What is the model number of the Function Generator?
A: The model number of the Function Generator is FG-3020B.Q: What is the warranty period for the Function Generator?
A: The Function Generator comes with a warranty of 1 year.Q: What is the frequency range supported by the Function Generator?
A: The Function Generator supports a frequency range from 0.1 Hz to 20 MHz.Q: What is the core component of the Function Generator?
A: The core components of the Function Generator include Processor, Display, and Connectors.Q: What is the feature that sets the Function Generator apart?
A: The Function Generator features multiple waveform generation capabilities.Q: What is the temperature range within which the Function Generator operates?
A: The Function Generator operates within a temperature range of 0C to 40C.Q: What is the weight of the Function Generator?
A: The Function Generator weighs 2.5 kg.
