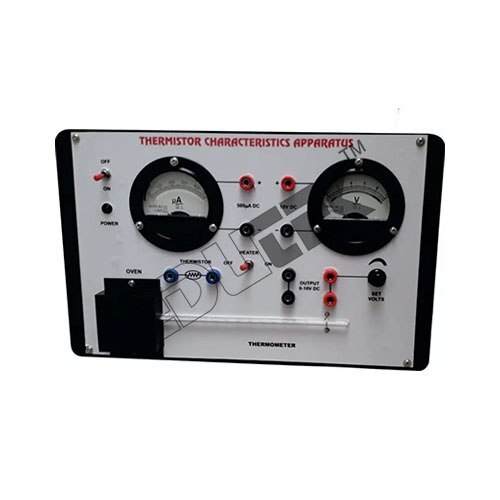

THERMISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS

Price 1400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

THERMISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS Specification

Power Supply
electrical

Power Source
electrical

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Product Type
THERMISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Supply Voltage
220 Volt (v)

Warranty
1 year

Frequency
50 Hertz (HZ)

THERMISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash on Delivery (COD)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About THERMISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS

Specification:

THERMISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS

Instruments Comprises DC regulated power supply 0-10 V dc / 150mA, two round meters for voltage & current measurement one glass thermistor is kept in oven.

Connections of supplies, meters & thermistor brought out at 4mm sockets.

Also provided with oven with temperature control knob.

Precise Study of Thermistor Behavior

This apparatus allows engineering students and professionals to investigate the characteristics of thermistors, including how their resistance changes with temperature. The inclusion of round meters facilitates precise and easy-to-read measurements, making it invaluable for electronics experimentation and demonstrations.

Safe and Durable Construction

Built on a robust Bakelite panel, this instrument provides excellent electrical insulation and mechanical strength. The reliable design supports long-lasting performance, which is particularly beneficial in busy laboratory environments where safety and durability are crucial.

FAQ's of THERMISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS:

Q: How is the Thermistor Characteristics Apparatus used in engineering electronics experiments?

A: This apparatus is used to determine the relationship between resistance and temperature in thermistors. Students connect the circuit as per instructions, set up the required power supply, and observe resistance changes using the round meters as the temperature varies. It is a practical tool for understanding thermistor behavior in real-time.

Q: What are the main benefits of using a Bakelite panel and round meters in this apparatus?

A: The Bakelite panel offers excellent electrical insulation and physical durability, enhancing user safety. Round meters provide clear and accurate readings, enabling precise data collection during experiments.

Q: When should this apparatus be used in the electronics curriculum?

A: This instrument is typically introduced in foundational electronics lab courses, when students are learning about temperature-dependent electronic components like thermistors. It's also useful for advanced electronics modules examining sensor behavior.

Q: Where can the Thermistor Characteristics Apparatus be effectively installed?

A: The apparatus is suitable for installation in educational institution laboratories, research facilities, and technical training centers focused on electronics engineering.

Q: What is the process for setting up and operating the Thermistor Characteristics Apparatus?

A: To use the apparatus, connect it to a 220V power supply at 50 Hz frequency, place the thermistor in the desired thermal environment, and monitor resistance values via the round meters. Ensure proper connection and calibration according to the user manual for accurate results.

Q: What warranty and after-sales support are available for this apparatus?

A: The product comes with a 1-year warranty that covers manufacturing defects, offering users assurance of quality and access to support from the manufacturer or supplier in India.
