HEAT TRANSFER IN AGITATED VESSEL APPARATUS

Send Inquiry

Request To Call Back

HEAT TRANSFER IN AGITATED VESSEL APPARATUS

Price 8900.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HEAT TRANSFER IN AGITATED VESSEL APPARATUS Specification

Application
Heat Transfer Laboratory Equipment

Product Type
HEAT TRANSFER IN AGITATED VESSEL APPARATUS

Usage
Heat Transfer Laboratory Equipment

Warranty
1 Year

Material
Helical coil - 200 dia, 8 turns, madeof 3/8" dia. copper tube.

Type
HEAT TRANSFER IN AGITATED VESSEL APPARATUS

HEAT TRANSFER IN AGITATED VESSEL APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About HEAT TRANSFER IN AGITATED VESSEL APPARATUS

Specification:

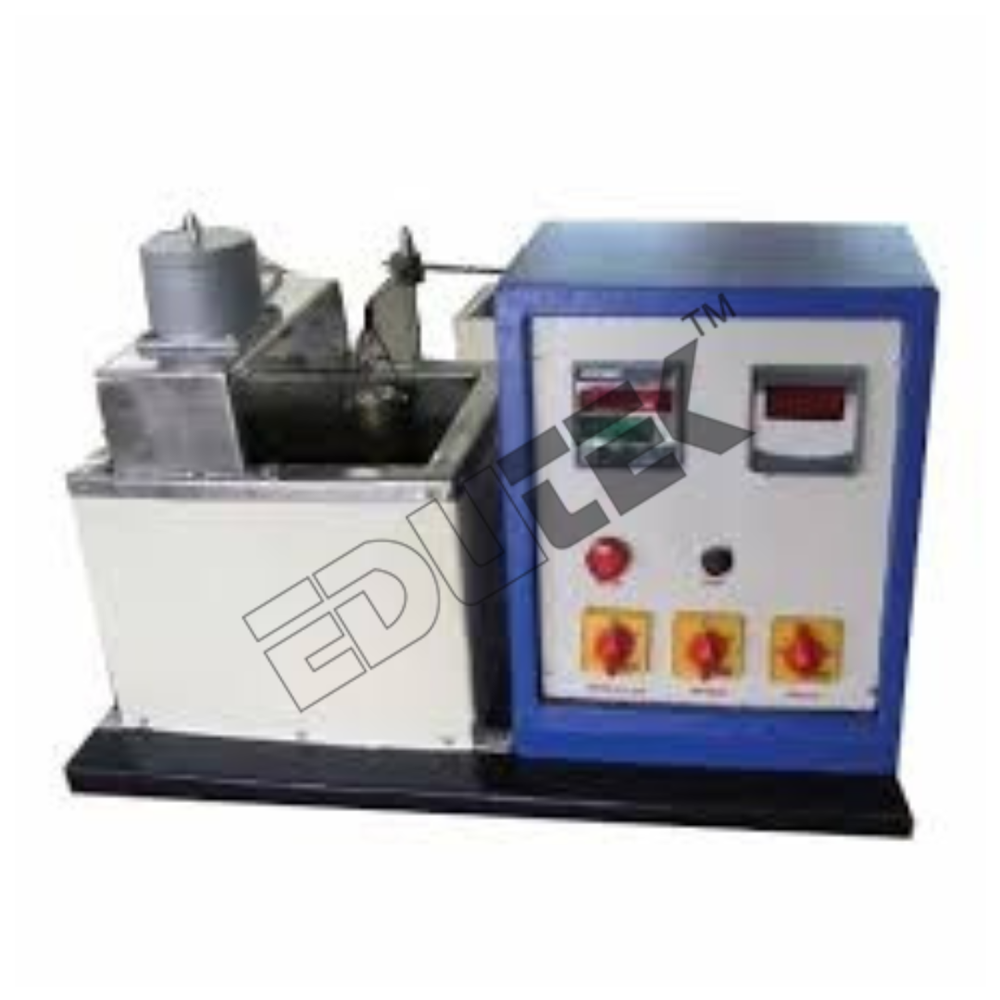

HEAT TRANSFER IN AGITATED VESSEL APPARATUS

The unit consists of a vessel withclass wool insulation ail around. A helical coil made of copper is fixed insidethe vessel.

A motorized agitator is fixed at thecenter of the coil.

The vessel is provided with anelectric heater and a controller is also provided for vessel.

Heater heats water in the jacketwhile cold water is circulated through coll.

Temperature of circulated water andwater in vessel is measured and thus heat transfer coefficient at variousagitator speeds can be determined.

Specifications:

Vessel approx. 20 lit. Capacity,provided with glass wool insulation all around and electric heater at thebottom.

Agitator 150 mm dia, with 1/8 HPmotor to drive the agitator.

Helical coil - 200 dia, 8 turns, madeof 3/8" dia. copper tube.

Controllers for heater and agitatormotor.

Temp. Indicator for vessel watertemperature and circulated water inlet and outlet.

Services Required:

Single phase 230V, 15 A stabilizedsupply.

Water flow at the rate of 4 to 5 lit.Per min.

Suitable drain arrangement for water.

Floor area -1.5 mtr. X 1 mtr. X 1 mirheight.

Precision in Heat Transfer Experiments

This apparatus brings high-precision demonstrations to laboratories, allowing users to observe and analyze the heat transfer processes within an agitated vessel. The robust copper helical coil ensures efficient heat exchange, while the sturdy construction guarantees reliability throughout repeated, hands-on experimentation.

Comprehensive Support and Reliability

Manufactured in India, this heat transfer apparatus comes with a full 1-year warranty, ensuring peace of mind and lasting performance. Our technical support assists users with installation, operation, and maintenance, making it a dependable choice for educators, researchers, and laboratory professionals alike.

FAQ's of HEAT TRANSFER IN AGITATED VESSEL APPARATUS:

Q: How does the Heat Transfer in Agitated Vessel Apparatus work?

A: The apparatus employs a helical copper coil placed inside a stirred vessel. A fluid is circulated through the coil, while another fluid is agitated in the vessel. This setup demonstrates heat transfer between the two fluids due to agitation, enhancing mixing and thermal efficiency.

Q: What is the process for setting up and using this equipment?

A: To set up, connect the inlet and outlet of the copper coil to your water source. Fill the vessel with the test liquid and start the agitator. Adjust flow rates as required, then monitor temperature and heat transfer data using the provided ports and sensors.

Q: When should this apparatus be used in the laboratory?

A: This equipment is best utilized during practical heat transfer experiments in educational settings or research labs. It is suitable whenever students or researchers need to study the effects of agitation on heat transfer in fluid systems.

Q: Where can this apparatus be installed?

A: The apparatus is intended for laboratory usage and can be conveniently placed on laboratory benches near water and electrical outlets for easy operation and maintenance.

Q: What are the benefits of using a copper helical coil in heat transfer experiments?

A: Copper's high thermal conductivity and the helical coil's design maximize the surface area, promoting more efficient and accurate heat exchange within the agitated vessel system.

Q: How does agitation improve the heat transfer process within the vessel?

A: Agitation enhances turbulence and homogeneous mixing, minimizing temperature gradients and increasing the overall effectiveness of heat exchange between the fluids.

Q: What warranty and support are provided with this equipment?

A: We offer a 1-year warranty covering manufacturing defects, along with aftersales support for troubleshooting, ensuring uninterrupted operation and optimal results from your laboratory experiments.
