Student Microscope

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Student Microscope Specification

View Head
Monocular

Focus System
Coarse and fine focusing knobs

Spare Parts
Spare bulb, mirror, eyepieces, objectives available

Features
Robust metallic construction, anti-rust finish, designed for student use

Theory
Monocular, designed for educational purposes

Drawtube
Monocular drawtube

Sensor
Not applicable (optical microscope)

Resolution
400x to 1000x (depends on eyepiece and objective used)

Interface
Manual operation

Focal Distance
Adjustable via coarse and fine focus knobs

Magnification
100x, 400x, 1000x with supplied objectives and eyepieces

Dimensions
Overall height approx. 380 mm

Focus Range
Coarse and fine adjustment

Eyepieces
Wide field 10x, Huygens 5x (interchangeable)

Eyepiece Tube
Straight monocular, single tube

Illumination
Sub-stage plano concave mirror with day light filter

Coarse Adjustment Range
15 mm or more

Fine Adjustment Range
0.001 mm per graduation

Working Stage
Square stage 120 x 120 mm with stage clips

Image Format
Visual/optical only

Interpupillary Distance
Fixed, not adjustable

Objective Achromatic
3 position revolving nosepiece, objectives 10x, 45x, 100x (oil)

Condenser
Fixed Abbe condenser, non-removable, long working distance

Light Source
Mirror (no in-built electric illumination)

Weight
Approx. 4.5 kg

Color
White and black

Body Material
Sturdy metal body, powder coated finish

Packaging
Supplied with dust cover and instruction manual

Stage Movement
Manual movement, X-Y directions with stage clips

Nosepiece
Triple revolving, click stop

Base
Heavy stable base for extra stability

Mirror Type
Plano-concave, adjustable

Usage
Ideal for schools, colleges, and laboratories

Student Microscope Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Letter of Credit (L/C), Cheque, Cash in Advance (CID), Telegraphic Transfer (T/T), Cash Advance (CA)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Middle East, Africa, Western Europe, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Student Microscope

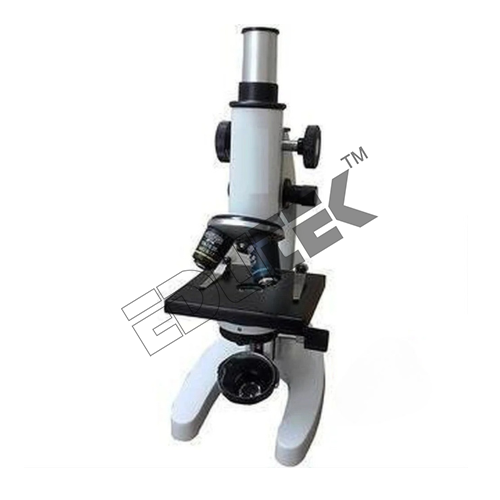

Student Microscope ETMS-131

A straight tube monocular research microscope. Body inclinable upto 90° with separate coarse and fine adjustments. Triple revolving nose-piece. Fixed stage with stage clips, sub-stage plano-concave reflecting mirror with fixed condenser / iris-diaphragm.

with 10x, 15x or 5x huygenian eyepieces (2 nos. ) and 10x,

45x objectives.

Reliable Construction for Educational Use

Constructed from sturdy metal, this student microscope features an anti-rust powder-coated finish, making it exceptionally durable for frequent use in classrooms and labs. The heavy base provides stability, and the robust build protects against everyday wear, making it a long-lasting choice for students and educators.

Versatile Magnification and Precision Focus

Equipped with interchangeable objectives (10x, 45x, 100x oil) and eyepieces (10x wide field, 5x Huygens), users gain flexibility to observe details at 100x, 400x, and 1000x total magnifications. The microscopes fine and coarse focus knobs offer smooth, precise adjustments, allowing users to achieve clear visuals for various types of educational samples.

Simple Manual Operation and Maintenance

Designed for manual operation, this microscope features easy-to-use stage clips, X-Y movement, and a user-friendly monocular drawtube. With a sub-stage plano-concave mirror for natural light illumination and supplied dust cover, the device is simple to maintain, making it perfect for regular classroom or laboratory use.

FAQs of Student Microscope:

Q: How is the microscope illuminated in the absence of built-in electric lighting?

A: The microscope uses a plano-concave mirror located beneath the stage to direct natural or available external light onto the specimen. An included daylight filter assists in producing optimal lighting conditions without the need for electrical power.

Q: What objectives and eyepieces are included with the microscope, and what magnification levels can be achieved?

A: The microscope comes with three achromatic objectives (10x, 45x, 100x oil) and two interchangeable eyepieces (wide field 10x, Huygens 5x), enabling magnification levels of 100x, 400x, and up to 1000x, depending on the combination used.

Q: When should the oil immersion (100x) objective be used, and what is its benefit?

A: The oil immersion (100x) objective is used when observing specimens that require very high magnification, such as bacteria. Placing a drop of immersion oil between the slide and objective increases resolution and image clarity at high magnifications.

Q: Where is the microscope best suited for use?

A: This microscope is ideal for schools, colleges, and laboratory environments where hands-on learning and routine observation are required. Its durable build and manual controls make it suitable for educational purposes.

Q: What is the process for focusing specimens on this microscope?

A: Users start by placing the slide on the stage and securing it with stage clips. First, coarse adjustment knobs should bring the object into closer focus, followed by fine adjustments for sharpness. The monocular drawtube provides a single optical viewing path.

Q: How does the sturdy base contribute to the microscopes performance?

A: The heavy, stable base ensures the microscope remains stationary during use, which minimizes vibrations and allows for more precise focusing and observation, especially at high magnifications.
