Spinnertscope .

Get a Price/Quote

MOQ : 1 Piece

Spinnertscope . Specification

Voltage
220 V Volt (v)

Temperature Range
Ambient to 120 C Celsius (oC)

Power Source
AC Electric

Feature
360 Rotatable Viewing, Anti-Fungal Coating, Easy Focusing

Model No

Frequency
50 Hz Hertz (HZ)

Accuracy
1% %

Capacity
Up to 500 samples/hour Pcs/hr

Automation Grade
Manual

Core Components
Optical Lens, Rotatable Turret, Stage, Illumination System

Measurement Range
10x to 100x Magnification

Equipment Materials
Stainless Steel, Glass, Plastic

Type
Laboratory Instrument

Usage
Microscopic Observation and Analysis

Display Type
Analog

Dimension (L*W*H)
320 x 260 x 180 mm Millimeter (mm)

Weight
7 kg Kilograms (kg)

Stage Type
Mechanical Movable Stage

Objective Lenses
Achromatic 10x, 40x, 100x Oil

Packaging Type
Export Quality Corrugated Box

Color
Off White/Blue

Focusing Mechanism
Coarse and Fine Adjustment

Eyepiece
WF10x with Pointer

Application
Suitable for Schools, Colleges, Pathology Labs

Condenser
Abbe Condenser NA 1.25 with Iris Diaphragm

Illumination
LED Bright Field with Adjustable Intensity

Spinnertscope . Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cheque, Letter of Credit (L/C)

Main Export Market(s)
Central America, North America, Asia, Australia, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Spinnertscope .

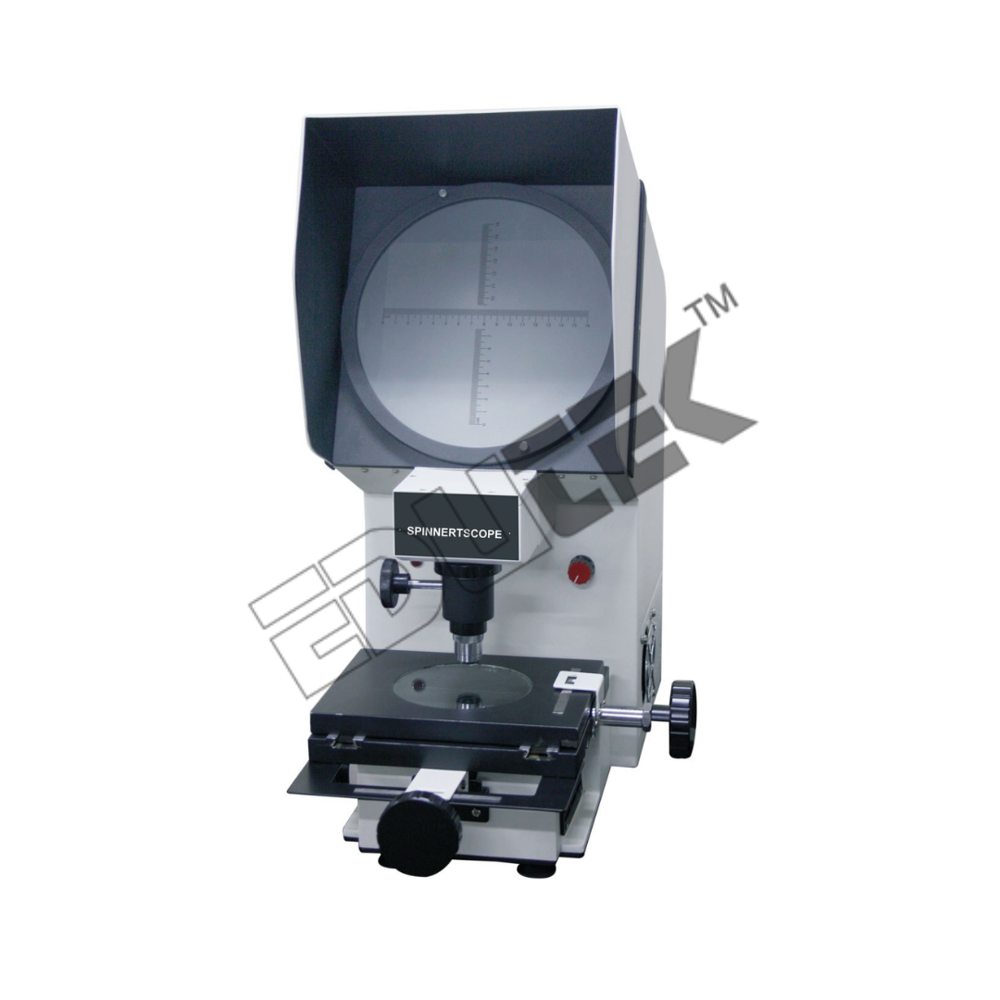

Spinnertscope

Specification of Spinnertscope:

Spinneretscope is specially designed to check the blockage in spinets, equipped with halogen projection lamp 12v and 100w workable 220 volts.
cooling fan provided inside the base for continuous working.
Arrangement for easy and convenient transverse of the spinnerts is provided both in X & Y direction.
Screen Diameter of Spinneretscope is 200mm with graduation on X and Y axis.

High-Performance Optical System

The Spinnertscope delivers sharp and reliable images through its achromatic objective lenses and wide field 10x eyepiece with pointer. The precision optics and rotatable turret system ensure versatile magnification for detailed analysis, making it ideal for both routine and specialized laboratory tasks.

Advanced Illumination Technology

Enjoy consistent and controlled brightness with the LED bright field illumination system, adjustable for optimal clarity during sample observation. The Abbe condenser and iris diaphragm further refine light delivery, allowing users to observe even delicate cellular structures at varying intensities.

User-Friendly Design and Durability

Featuring an ergonomic mechanical movable stage and easy-focusing coarse and fine adjustment controls, the promotes comfortable and accurate operation. Its durable build with anti-fungal coating and export-grade packaging guarantees longevity and safe transport for demanding educational and professional environments.

FAQs of Spinnertscope:

Q: How do I adjust the illumination intensity on the Spinnertscope ?

A: To adjust the illumination, use the LED control dial located on the microscopes base. This feature allows users to set the brightness to the preferred level for different sample types, enhancing visibility and contrast during both bright field and oil immersion microscopy.

Q: What types of samples can be analyzed, and what is the maximum throughput?

A: The Spinnertscope is suitable for a variety of biological and pathological samples, including slides from tissue, blood smears, or educational specimens. Capable of processing up to 500 samples per hour, it supports high-volume workflows in schools, colleges, and pathology labs.

Q: When is oil immersion required, and how do I use the 100x objective lens?

A: Oil immersion is recommended for high-resolution microscopy using the 100x objective lens. Apply a drop of immersion oil between the slide and lens, then carefully focus with the fine adjustment knob to achieve maximum clarity and resolution for detailed cellular observation.

Q: Where should the Spinnertscope be placed for optimal operation?

A: Position the Spinnertscope on a stable, level surface in environments where temperature ranges from ambient to 120C. Ensure access to a 220 V AC power supply and adequate space to maneuver the mechanical stage for efficient sample handling.

Q: What is the process for focusing specimens using this microscope?

A: Begin with coarse adjustment to bring the specimen into general focus, then refine the image using the fine adjustment knob. The easy-focusing mechanism supports smooth transitions between magnifications and prevents sample loss of focus during observation.

Q: What benefits does the 360 rotatable viewing provide?

A: The 360 rotatable viewing head offers flexibility for multiple users and facilitates collaborative analysis. This feature also enables comfortable access to different angles, reducing fatigue during prolonged laboratory work.
