Autocollimator .

Get a Price/Quote

MOQ : 1 Unit

Autocollimator . Specification

Measurement Range
±30 arc minutes

Model No
AutoColl-200

Automation Grade
Manual

Power Source
Ambient Light / Optional LED Illuminator

Temperature Range
Ambient

Accuracy
Up to 1 arc second

Core Components
Optical Lens, Eyepiece, Illumination

Feature
High Precision, Compact Design

Equipment Materials
Metal Body with Glass Optical System

Type
Autocollimator

Usage
Accurate Measurement of Angular Displacement

Display Type
Optical (Eyepiece Graticule)

Dimension (L*W*H)
Approx. 200 mm x 70 mm x 70 mm

Weight
Approx. 2 kg

Mounting
Tripod or Bench Stand Compatible

Finish
Powder Coated Exterior

Application
Optical Testing, Alignment, Metrology

Operating Environment
Laboratory or Industrial

Resolution
1 arc second

Lighting
Integrated or External Illumination

Eyepiece Magnification
10x

Field of View
25 mm at 1 m distance

Calibration
Factory Calibrated

Autocollimator . Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque, Letter of Credit (L/C), Cash Advance (CA)

Main Export Market(s)
Australia, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia, North America

Main Domestic Market
All India

About Autocollimator .

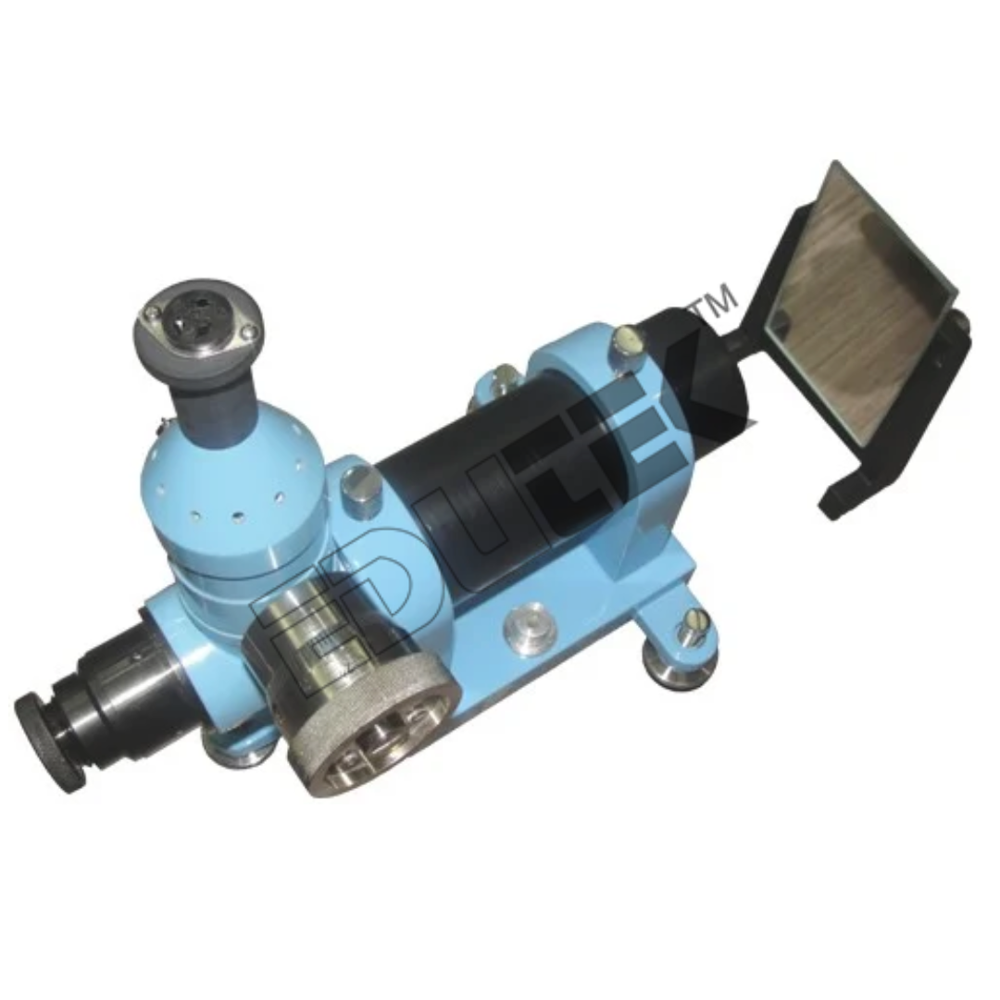

Autocollimator

Description of Autocollimator:

Electronic Autocollimator for Measurement of straightness, flatness, squareness of machine tables, cast iron and granite surface plates / tables.
High accuracy and stability over a range of applications.
Digital autocollimator controlled using a tablet PC with clear touch-screen software.
Laser sighting aid.
Measurement range of around 1800 seconds.
Simultaneous dual axis operation and display.
Resolution: 0.2 arc sec.

Superior Precision for Optical Alignment

With a measurement accuracy up to 1 arc second, the AutoColl-200 ensures critical tasks in metrology and optical alignment are accomplished with exceptional exactness. Its factory calibration and stable metal-glass construction make it suitable for rigorous laboratory and industrial use, guaranteeing reliable measurement performance over time.

Versatile Lighting and Mounting Options

The autocollimator accommodates ambient light as well as optional LED illumination and can be conveniently mounted on a tripod or bench stand to suit varying workspace requirements. This flexibility makes it an optimal choice for diverse optical testing situations, while its powder-coated finish ensures lasting durability even in demanding environments.

FAQs of Autocollimator:

Q: How is the AutoColl-200 autocollimator typically used in optical testing and alignment?

A: The AutoColl-200 is used for precise measurement of small angular displacements, making it ideal for aligning optical components, verifying surface flatness, and conducting metrology applications. Its high resolution and wide field of view enable accurate assessment and calibration tasks in both laboratory and industrial settings.

Q: What are the lighting options available with this autocollimator?

A: The AutoColl-200 comes with integrated illumination and supports external light sources, including ambient light or an optional LED illuminator. This allows users to adapt lighting conditions as needed for different tasks or environments, ensuring clear visibility of the eyepiece graticule.

Q: Where can the AutoColl-200 be installed for operation?

A: The device is compatible with both tripod and bench stand mounting, making it versatile for laboratory benches or industrial workstations. Its compact dimensions and robust build facilitate easy installation and stable use in various professional settings.

Q: What is the process for calibrating the AutoColl-200 autocollimator?

A: Calibration is performed at the factory prior to shipment, providing users with a ready-to-use instrument. This ensures measurement reliability and eliminates the need for initial setup, though periodic verification may be recommended for sustained precision.

Q: What benefits does the compact design of this autocollimator provide?

A: The compact and lightweight form factor allows for easy portability, straightforward setup, and minimal space usage. Its solid metal body and powder-coated exterior enhance durability while ensuring precise results, even under continuous use in demanding environments.

Q: When is it recommended to use an external illumination source with this equipment?

A: External illumination, such as the optional LED, is recommended when ambient light is insufficient or task-specific visibility is required. This feature enhances optical contrast and ensures accurate readings, particularly in controlled laboratory scenarios.

Q: What are the main components of the AutoColl-200, and how do they contribute to its performance?

A: The core components include a high-quality optical lens, a 10x magnification eyepiece, and integrated illumination. Together, these elements deliver sharp, highly detailed images with precise angular measurement, making the instrument dependable for demanding metrology and alignment tasks.
