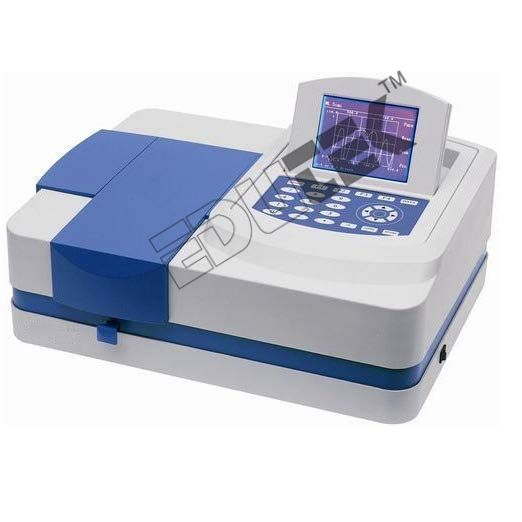

Spectrophotometer (Double Beam)

About Spectrophotometer (Double Beam)

SPECTROPHOTOMETER (DOUBLE BEAM )

• Wavelength range 190 to 1,100 nm
• Spectral bandwidth 1 nm (190 to 1,100 nm)
• Wavelength display 0.1nm increments
• Wavelength setting 0.1nm increments (1nm increments when setting scanning range)
• Wavelength accuracy ± 0.1 nm at D2 peak 656.1 nm,± 0.3 nm for entire range
• Wavelength repeatability ± 0.1 nm
• Wavelength slew rate About 6,000 nm/min
• Wavelength scanning speed 3,000 to 2 nm/min
• Lamp interchange wavelength Automatic interchange linked to wavelength.
• The interchange wavelength can be set freely in the range of 295 to 364 nm (0.1nm increments).
• Stray light Less than 0.02% at 220 nm (NaI) Less than 0.02% at 340 nm (NaNO2) Less than 1.0% at 198 nm (KCl)
• Photometric system Double beam optics
• Photometric range Absorbance: -4 to 4 Abs
• Transmittance: 0% to 400%
• Photometric accuracy ± 0.002 Abs at 0.5 Abs ± 0.004 Abs at 1.0 Abs ± 0.006 Abs at 2.0 Abs
• Photometric repeatability Less than ± 0.001 Abs at 0.5 Abs Less than ± 0.001 Abs at 1 Abs Less than ± 0.003 Abs at 2 Abs
• Baseline stability Less than 0.0003 Abs/Hr (700nm, one hour after light source turned on)
• Baseline flatness Less than ± 0.0006 Abs (1,100 to 190 nm, one hour after light source turned
• Noise level Less than 0.00005 Abs (700 nm)
• Light source 20-W halogen lamp and deuterium lamp
• Built-in light source auto position adjustment
• Monochromator Blazed holographic grating in
• Czerny-Turner mounting
• Detector Photodiode
• Complete with all accessories, Operating manual, spare fuses & 10 rectagulat silica glass cells.
• Power requirements : Ac 220-230 V , 50 Hz.

Exceptional Accuracy and Efficiency

This spectrophotometer delivers 100% accuracy and is engineered for high efficiency, making it ideal for demanding laboratory analyses. Its double beam design reduces measurement errors and ensures precise quantification of samples. The standard size accommodates various laboratory setups, providing both versatility and consistency.


Reliable Power and Warranty Coverage

Operating on AC 220-230 V, 50 Hz, the device is compatible with typical laboratory power supplies. The included one-year warranty secures your investment, offering technical support and maintenance for uninterrupted operation. As a product from a leading exporter, manufacturer, and supplier in India, quality and reliability are guaranteed.
