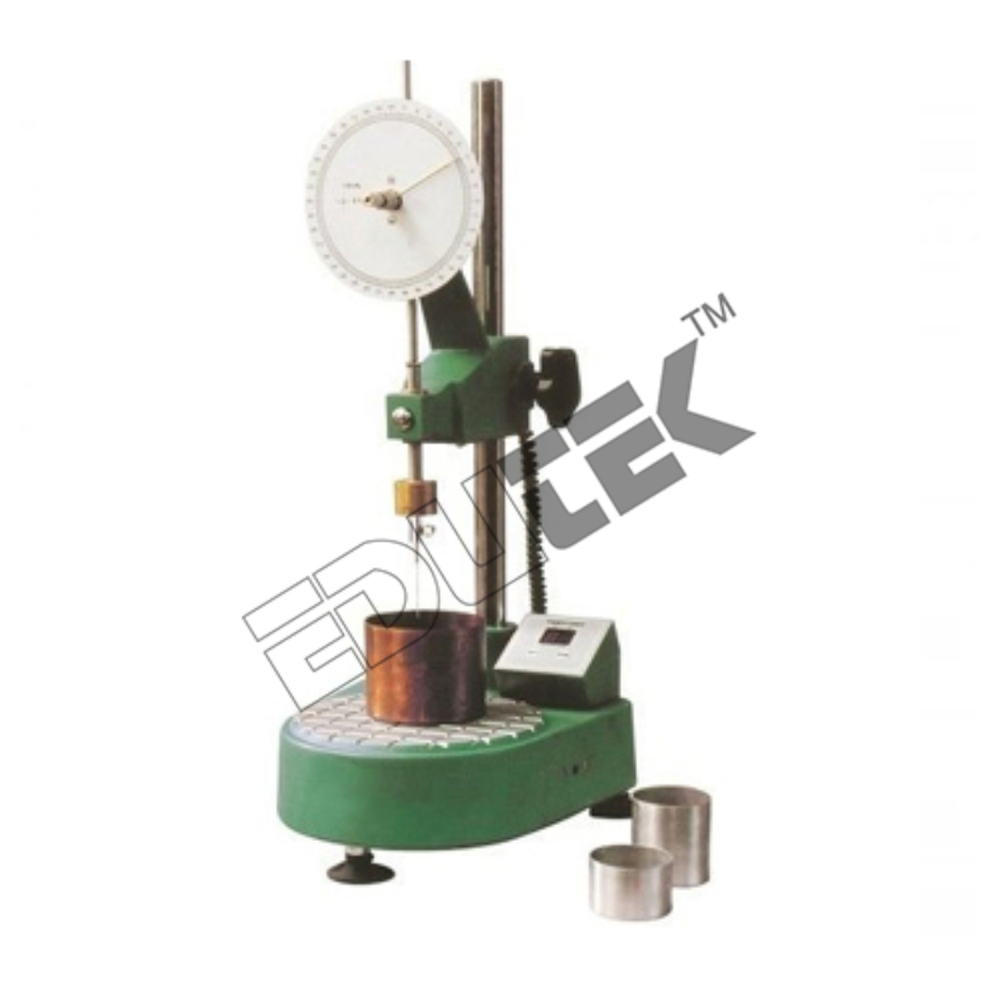

Semi Automatic Penetrometer

Name: Semi Automatic Penetrometer
Brand: EDUTEK INSTRUMENTATION
Price: 2300.0 INR
Availability: InStock

Price 2300.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Semi Automatic Penetrometer Specification

Weight
Approx. 12 kg

Capacity
As per IS Standards

Dimension (L*W*H)
350 x 300 x 500 mm

Product Type
Semi Automatic Penetrometer

Sensor
Precision Dial Gauge

Power Consumption
15 W

Machine Speed
Adjustable

Phase
Single Phase

Power
220V AC

Load Capacity
100 g to 200 g

Speed Range
Standard

Features
Preset Release Mechanism, Fine-Adjust Mechanism, Digital/Analog Dial

Screw Size
Standard

Frequency
50 Hz

Voltage
220 V AC

Control System
Push Button Control

Application
Bitumen Penetration Testing, Grease, Food, Wax, etc.

Color
Grey & Blue

Power Source
Electric

Operating Temperature
Ambient to 60°C

Resolution
0.01 mm

Accuracy
0.01 mm

Stroke Length
50 mm

Automatic Grade
Semi Automatic

Material
Mild Steel & Aluminum

Sample Cup Material
Aluminum Cup

Safety Features
Overload protection, insulated electricals

Plunger Size
3.2 mm diameter

Sample Holder Diameter
55 mm Standard

Ambient Humidity
30% to 90% RH

Compatible Test Standards
IS: 310, ASTM D5, EN 1426

Scale Graduation
Clear, easy read

Timer
Automatic Digital Timer upto 60 seconds

Display Type
Analog/Digital (Optional)

Release Mechanism
Magnetic, precise release

Semi Automatic Penetrometer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Semi Automatic Penetrometer

Semi Automatic Penetrometer

Used to determine grade of bitumen. The penetration tests determine consistency of bitumen for the purpose of grading. Depth in units 1/10 of millimeter to which a standard needle having a standard weight will penetrate vertically in a duration of five seconds at a temperature of 25C determines penetration for gradation. but the unit is compact with timer to control duration of penetration. The instrument is provided with lead screw gear arrangement, Leveling screws, Spirit level. but the unit is compact with timer to control duration of penetration. The instrument is provided with lead screw gear arrangement, Leveling screws, Spirit level.

Precision Measurement Technology

Featuring a high-accuracy sensor and a precision dial gauge, this penetrometer provides clear readings down to 0.01 mm resolution. The clear scale graduation and fine-adjust mechanism allow for reliable measurements in every test, ensuring data integrity for both research and quality assurance purposes.

Versatile Application Range

Designed for use in bitumen penetration testing as well as grease, food, and wax analysis, this instrument suits laboratories, industrial facilities, and research centers. Compliant with major national and international standards, it serves varied testing requirements for exporters, manufacturers, and suppliers.

Automated Controls and Safety

With a digital timer, push-button controls, and magnetic release mechanism, the penetrometer streamlines testing procedures while maintaining safety. Built-in overload protection and insulated electrical components enhance operator safety during continuous use while reducing operational risk.

FAQs of Semi Automatic Penetrometer:

Q: How does the semi automatic penetrometer ensure precise release during testing?

A: The device incorporates a magnetic release mechanism and fine-adjust controls, allowing for a consistent and precise start to each test. This feature minimizes operator variability and guarantees repeatable penetration measurements.

Q: What types of materials can be analyzed using this penetrometer?

A: The penetrometer is suitable for bitumen, grease, food, wax, and other analogous materials. Its adaptable design makes it ideal for various laboratory and industrial applications requiring penetration analysis.

Q: When should the automatic digital timer be used during the penetration test?

A: The automatic digital timer is activated prior to test initiation to accurately control the duration of plunger release, up to 60 seconds. This ensures consistent timing and reliable measurement outcomes.

Q: Where can this instrument be utilized for testing?

A: It is commonly used in laboratories, research facilities, industrial plants, and by manufacturers and exporters in India and abroad. Its compliance with IS: 310, ASTM D5, and EN 1426 standards facilitates broad application in quality control and material assessment.

Q: What process is followed for sample preparation and testing with this penetrometer?

A: Samples are placed in a 55 mm standard diameter aluminum cup, positioned beneath the plunger. After setting the desired test parameters, the magnetic release and automated timer sequence control penetration and measurement for consistent results.

Q: How does the instrument promote operator safety during use?

A: Safety is maintained through overload protection, insulated electricals, and push-button controls. These features minimize electrical risks, prevent equipment overloading, and facilitate safe, straightforward operation.

Q: What benefits does the adjustable speed and digital/analog display provide?

A: Adjustable speed settings accommodate different material types, while the choice of analog or digital display ensures easy, clear readings. This versatility improves accuracy, efficiency, and user convenience in varied testing scenarios.
