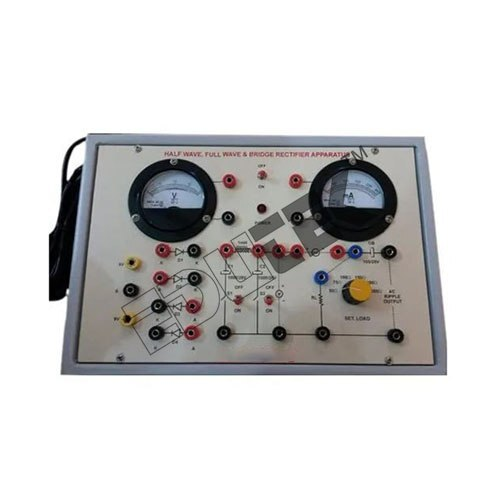

Send InquiryRIPPLE FACTOR APPARATUS WITH BAKELITE PANEL & ROUND METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)
Price 1200.0 INR/ Piece
MOQ : 1 Piece
RIPPLE FACTOR APPARATUS WITH BAKELITE PANEL & ROUND METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER) Specification
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Product Type
- RIPPLE FACTOR APPARATUS WITH BAKELITE PANEL & ROUND METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Function
- RIPPLE FACTOR APPARATUS WITH BAKELITE PANEL & ROUND METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)
- Warranty
- 1 Year
- Features
- Instrument comprises of AC Power Supply, 2 meters to measure Output Voltage & Output current, 4 PN Junction Diodes, Filter Circuit Kit, load Resistances selectable using band switch. One dual range Electronic voltmeter to measure ripple directly.
RIPPLE FACTOR APPARATUS WITH BAKELITE PANEL & ROUND METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER) Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About RIPPLE FACTOR APPARATUS WITH BAKELITE PANEL & ROUND METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)
Specification:
RIPPLE FACTOR APPARATUS WITH BAKELITE PANEL & ROUND METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)
Instrument comprises of AC Power Supply, 2 meters to measure Output Voltage & Output current, 4 PN Junction Diodes, Filter Circuit Kit, load Resistances selectable using band switch. One dual range Electronic voltmeter to measure ripple directly.
Essential Tool for Electronics Engineering
This ripple factor apparatus is indispensable for studying and evaluating rectification circuits. Its comprehensive setup enables users to investigate ripple and efficiency aspects of half wave, full wave, and bridge rectifiers in practical scenarios. Reliable and simple to operate, it supports engineering coursework and experimental research.
Robust Construction with Reliable Components
Crafted with a durable bakelite panel and featuring round analog meters for output measurements, the apparatus ensures accurate readings and enduring performance. The kit includes a user-friendly filter circuit, switchable load resistances, and high-quality PN junction diodes, making it an excellent teaching aid for electronics labs.
FAQ's of RIPPLE FACTOR APPARATUS WITH BAKELITE PANEL & ROUND METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER):
Q: How do I use the Ripple Factor Apparatus to measure the ripple factor in different rectifier circuits?
A: To use the apparatus, select your desired rectifier configuration (half wave, full wave, or bridge) by connecting the appropriate circuit. Use the provided meters to measure output voltage and current, and observe the ripple using the dual-range electronic voltmeter. The filter circuit can be introduced to study its impact on the ripple factor.Q: What are the primary applications of this Ripple Factor Apparatus in engineering?
A: The apparatus is primarily used for hands-on study and analysis of rectification in electronics engineering, especially within educational institutions, research centers, and training laboratories. It helps students and professionals understand the behavior of different rectifier circuits and the importance of filtering in reducing ripple.Q: When should I use the selectable load resistances and band switch?
A: You should use the selectable load resistances when you want to observe how varying the load affects the output characteristics and ripple factor of the circuit. The band switch allows you to conveniently toggle between different resistance values for comprehensive testing.Q: Where can this apparatus be integrated for optimal educational benefit?
A: This Ripple Factor Apparatus is most beneficial in electronics engineering labs, technical institutes, universities, and vocational training centers where circuit rectification and ripple measurement experiments are part of the curriculum.Q: What process should be followed for measuring output using the round meters?
A: To measure output, connect your rectifier circuit as directed. The round meters on the panel display the output voltage and current. Ensure the circuit is powered by the built-in AC supply and adjust the configuration to monitor changes in real time. Refer to the user manual for detailed instructions.Q: What are the benefits of using this instrument with a bakelite panel and round meters?
A: The bakelite panel provides strong insulation and durability, ensuring user safety and longevity. Round meters offer clear, analog readings which are intuitive for students and professionals, enhancing hands-on experience during lab experiments.
