Plate Rolling Machine

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Plate Rolling Machine Specification

Measurement Range
Plate Width: up to 3000 mm, Plate Thickness: up to 50 mm

Automation Grade
Semi-Automatic/Automatic

Core Components
Rollers, Motor, Gearbox, Frame, Electrical Panel

Power Source
Electric

Temperature Range
Ambient (Not Applicable)

Frequency
50 Hz

Capacity
Variable (Depending on Model, Typical Range: 1 mm to 50 mm Plate Thickness)

Voltage
380-440 V

Model No
Custom/Standard Models Available (Specify on Order)

Accuracy
100 %

Feature
Highly Efficient

Equipment Materials
Heavy Duty Mild Steel Body, Hardened Rollers

Type
Mechanical/Hydraulic Plate Rolling Machine

Usage
Laboratory

Display Type
Analog/Digital (Optional)

Dimension (L*W*H)
Approx. 3600 x 1200 x 1200 mm (Varies with Model)

Weight
Approx. 1500 kg to 4500 kg (Depends on Model)

About Plate Rolling Machine

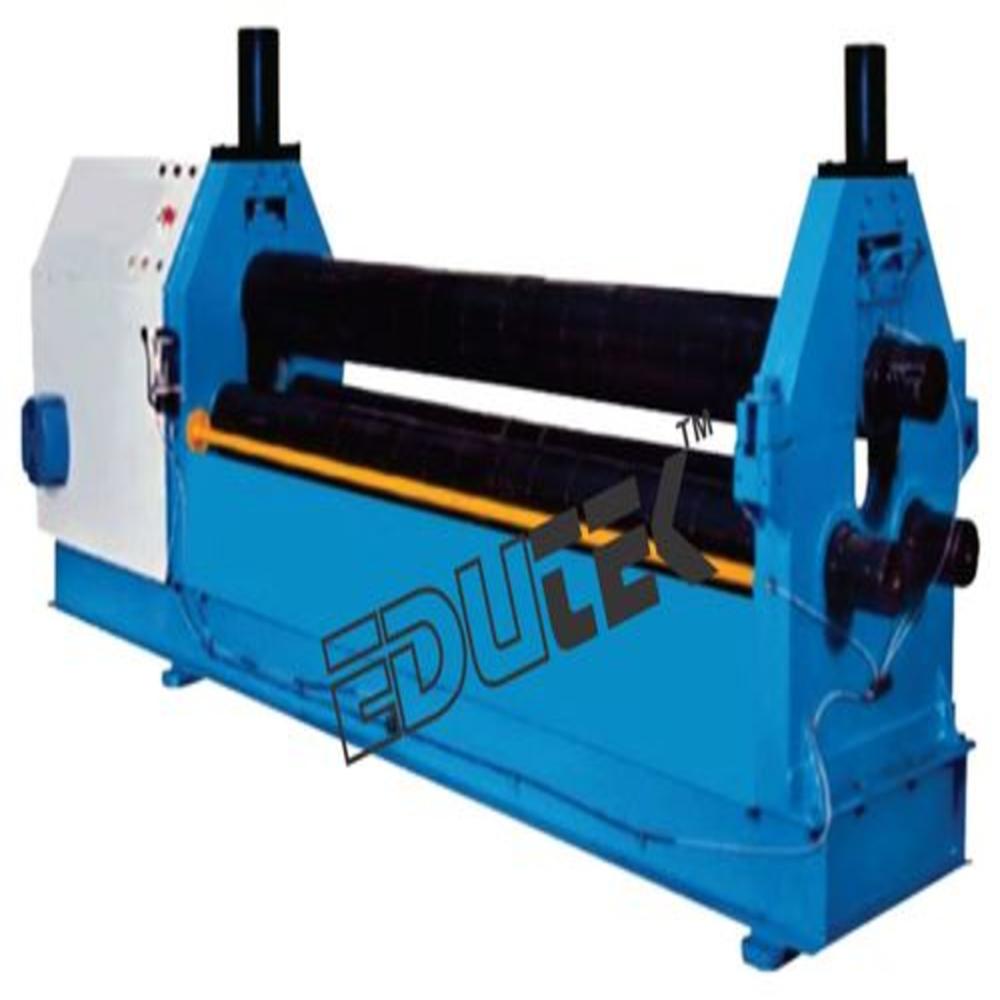

ROLLER SYMMETRICAL PLATE ROLLING MACHINE

Specification

Maximum sheet thickness = 6 mm;
Maximum coil width = 3200 mm;
Yield Limit = 245 mpa;
Coil speed = 6 m/min;
Full roll minimum diameter = 400 mm;
Top roll diameter = 220 mm;
Roller diameter = 180 mm;
Lower roller center distance = 280 mm;
Main motor power = 7.5 kw;
Overall Dimension (LxWxH) = 3400x1700x2800 mm;
Major Features and Characteristics = Precision bending process,
high-precise pre-bending, number control bending process;
With man-machine dialogue interface, effective operation;
Physical bending process software, man-machine dialogue window, automatic
compensation bending process; Single opera-tion, effective, safety and convenient;
Rich curved shapes, rolled with type O, U, R and dif-ferent shapes;
Three-roller plate type selection, according to the purpose or user require-ments, with affordable digital display type, TNC, number control machine; Installing environment = power: 380 Volt, and 50 Hz;
Operation temperature: 0 to 40oC;
Operation environment: Clean without dust;
Main structure and performance = Up and down roller part of the machine with high quality forgings, quenched and tempered treatment and roller surface quenching;
Frame: Two frames on left and right sides, Need to Welding stress removed after welded steel plate, Frames equipped with roller bearings, Inside of frames is square buckle screw, the top part of screw joint with up rollers bearing, Incorporate worm gear and screw at the bottom with the worm wheel nuts rotation makes rollers up and down.
Main transmission device: Main motor, gear reducer, coupling and brake, Drive two under work roller, it can forward and inversion to provide power for rolling sheet, Reducer adopts cylindrical gear reducer, installed on work base with padding.
Balance device: equipped on the side of reducer to balance up roller when unload material
Overturned agencies: equipped in a straight side for a flip and recovery;
Base: Base for whole structure, Easy to install and operate, Welded by section steel and steel plate, Handling by dispel stress treatment,
Frame, reducer, motor installed on the top;
Electric system and drive = Three-phase 380 V / 50 Hz AC power, Main motor drive down roller rotation, a vice motor drive up rollers fall rise and fall,
The machine control electric appliances need are installed in control box, which has short circuit overheating protection, Electric cabinet according to need to be put, operation is convenient;
Documents with machine = Operation manual (with Mechanical principle picture, electrical principle picture, and the foundation picture of machine tool)

Optimized for Multiple Materials

This plate rolling machine is engineered to handle a diverse range of metals, including mild steel, stainless steel, and aluminum. The hardened, polished rollers ensure precise shaping and smooth surfaces, making it suitable for research and industrial environments where material versatility is vital.

Variable Capacity and Specification

With variable roller diameter, power, and rolling speeds, each machine can be tailored according to specific requirements. The equipment supports different plate thicknesses (1 mm to 50 mm) and widths (up to 3000 mm), providing flexible solutions for a variety of applications.

Efficient, Accurate, and Safe

Achieving 100% accuracy, the machines robust mild steel frame and advanced gearbox ensure stable operation. Frequency regulation and electric power drive maximize safety and workflow efficiency, while polished rollers enhance long-term reliability and high-quality results.

FAQs of Plate Rolling Machine:

Q: How does the plate rolling machine operate and what models are available?

A: The plate rolling machine operates using either mechanical or hydraulic systems, driven by an electric motor (up to 15 HP), and is available in custom or standard models with either 3 or 4 rollers. Rolling specifications, such as plate thickness and length, can be customized based on model selection.

Q: What materials can be processed using this plate rolling machine?

A: This machine is designed to process mild steel, stainless steel, aluminum, and other compatible materials, accommodating plates with thicknesses from 1 mm to 50 mm. Its robust construction and polished, hardened rollers ensure high accuracy for various metalworking needs.

Q: Where can the plate rolling machine be used most effectively?

A: The machine is suitable for laboratories, manufacturing plants, and research institutions requiring precise and efficient metal forming. Its adaptability to different materials and thicknesses makes it ideal for both small-scale prototypes and large-scale production tasks.

Q: What are the key benefits of using this plate rolling machine?

A: Benefits include highly efficient operation, 100% accuracy in metal forming, customizable specifications, and versatility for different metals. Advanced motor and gearbox components, alongside high-quality rollers, contribute to long-term durability and reliable performance.

Q: How is the rolling speed and accuracy maintained during operation?

A: Rolling speed is adjustable up to 5 meters per minute depending on the machine model, and accuracy is guaranteed by the hardened, polished rollers and the precision-engineered gearbox. The control system (analog or digital) allows for precise adjustments and monitoring.

Q: What maintenance or safety procedures are recommended?

A: Regular checks of the electrical panel, gearbox, and rollers ensure prolonged machine life and safety. Users should follow manufacturer guidelines on periodic lubrication and inspection. The machine is built with safety in mind, featuring a heavy-duty frame and electrical protection systems.
