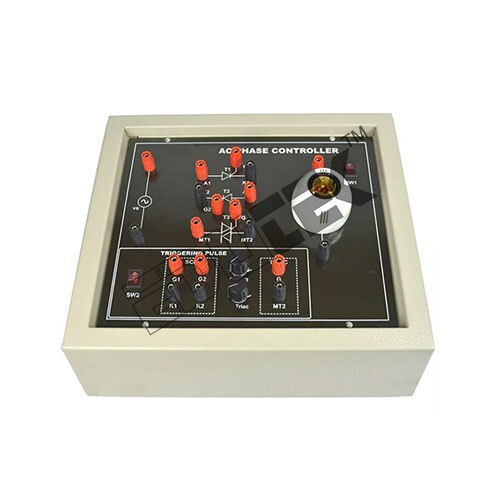

PHASE ANGLE CONTROL WITH TRIAC

Name: PHASE ANGLE CONTROL WITH TRIAC
Brand: EDUTEK INSTRUMENTATION
Price: 1400.0 INR
Availability: InStock

Price 1400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PHASE ANGLE CONTROL WITH TRIAC Specification

Input
Analog control signal or potentiometer

IP Rating
IP20 (open PCB module)

Sensors Specification
No built-in sensors

Output
Phase-controlled AC output

Power Supply
AC mains

Operating Temperature
0C to 60C

Components
TRIAC, diac, opto-isolator, resistors, capacitors, potentiometer

Interface
Screw terminal connections

Power Source
AC mains

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Features
Phase angle adjustment, universal AC load control, compact PCB module

Thermal Conductivity
Depends on heatsink used

Response Time
Instantaneous phase triggering

Resolution
Analog (variable by potentiometer)

Display Type
No display

Product Type
PHASE ANGLE CONTROL WITH TRIAC

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
220-240V AC

Supply Voltage
220V AC

Size
Standard PCB module, Approx. 100mm x 55mm

Dimension (L*W*H)
100mm x 55mm x 25mm

Function
Phase angle control for power regulation

Color
Green PCB with black and silver components

Weight
Approx. 150 grams

Capacity
Up to 2000 Watts (depends on TRIAC rating)

Current Rating
Up to 10A (according to TRIAC)

Thickness
~1.6 mm (PCB thickness)

Frequency
50/60 Hz

Isolation
Optical isolation between input and load

Environmental Protection
For indoor use only

Safety Compliance
Basic electrical safety, overcurrent fuse recommended

Enclosure
No enclosure included (open PCB)

Standby Power Consumption
Low, <2W

Compatibility
Works with standard lamps, fans, heaters, and universal AC motors

Heatsink Requirement
Heatsink required for load > 500W

Load Type Supported
Resistive and inductive AC loads

PCB Material
FR4 grade

Control Range
0 to 100% phase angle (full load adjustment)

Gate Trigger Method
DIAC/optocoupler triggered

Mounting Type
PCB mount, panel mount with standoffs

PHASE ANGLE CONTROL WITH TRIAC Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About PHASE ANGLE CONTROL WITH TRIAC

Experience commanding power regulation with our latest PHASE ANGLE CONTROL WITH TRIAC module, crafted for both splendiferous savings and monumental performance in engineering electronics instruments. With robust optical isolation, universal compatibility for resistive and inductive AC loads, and seamless analog control, this Markdown-worthy solution offers instant precision from 0% to 100% phase adjustment. Supporting up to 2000W and equipped with a premium FR4 PCB, it's perfect for standard 220-240V AC mains. Deliver exquisite control to fans, lamps, heaters, and motors effortlessly, with minimal standby power (<2W) and a sturdy, compact design for optimal integration.

Commanding Features & Versatile Applications

This ingenious phase angle controller features monumental adjustability, optical isolation for safety, and compatibility with lamps, fans, AC motors, and heaters. Extensively used by industrial engineers, laboratories, and automation specialists, it is ideal for engineering instruments, educational projects, and prototyping. The compact open PCB design supports both resistive and inductive loads, making it a splendiferous solution in controlling power across various sectors.

Supply Ability, Certifications & Goods Transport Logistics

With commanding supply capabilities, we efficiently deliver bulk quantities of PHASE ANGLE CONTROL WITH TRIAC modules across India and overseas. Packaging includes robust anti-static wrappers for PCB protection. Goods are dispatched via reliable transport networks to ensure market value is retained. We recommend standard electrical safety practices, including the use of protective fuses. Detailed logistics documentation and basic safety compliance certificates are provided with every shipment.

FAQ's of PHASE ANGLE CONTROL WITH TRIAC:

Q: How does the PHASE ANGLE CONTROL WITH TRIAC work with different load types?

A: The module supports both resistive (like heaters, lamps) and inductive AC loads (such as fans, universal motors), enabling smooth phase angle regulation for a wide range of applications.

Q: What is the process of installing this phase angle controller?

A: Installation requires mounting the open PCB via panel mount with standoffs or PCB mount, connecting input/output through screw terminals, and ensuring proper heatsink is used for loads above 500W.

Q: When is a heatsink necessary for operation?

A: A heatsink should be installed if the load exceeds 500W, ensuring efficient thermal performance and prolonging the device's lifespan under higher power conditions.

Q: Where can this module be used?

A: It is best used indoors within engineering electronics labs, automation panels, prototypes, or in compatible electrical equipment, always ensuring basic electrical safety measures are observed.

Q: What benefits does optical isolation provide in this controller?

A: Optical isolation ensures user and equipment safety by electrically separating the input control signal from the high-voltage AC load, minimizing the risk of electrical faults or surges.

Q: How can the phase angle be adjusted?

A: Phase angle control is analog, allowing gradual adjustment from 0% to 100% using an external potentiometer or analog control signal, delivering precise power output as needed.
