ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS (FORWARD & REVERSE)

Name: ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS (FORWARD & REVERSE)
Brand: EDUTEK INSTRUMENTATION
Price: 1400.0 INR
Availability: InStock

Price 1400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS (FORWARD & REVERSE) Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Product Type
ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS (FORWARD & REVERSE)

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Function
ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS (FORWARD & REVERSE)

Warranty
1 Year

Features
To study forward reverse V - I characteristics of zener diode.

ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS (FORWARD & REVERSE) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS (FORWARD & REVERSE)

Specification:

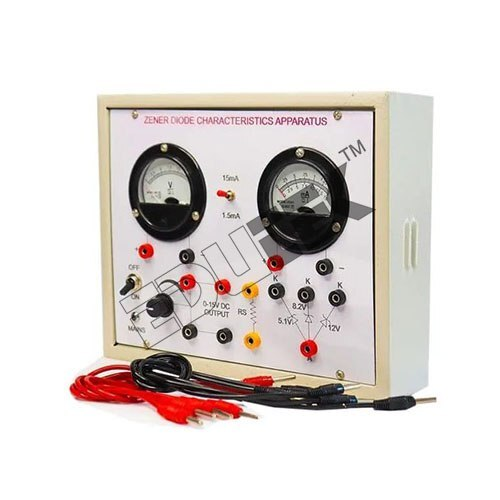

ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS (FORWARD & REVERSE)

To study forward reverse V - I characteristics of zener diode.

Complete Instrument with power supply, meters, zener diodes, connections of supplies.

Precise Measurement and Analysis

This apparatus offers an effective platform to observe and analyze the V-I characteristics of Zener diodes. Equipped with durable round meters and a Bakelite panel, it ensures stability and precision during electrical experiments. Its design supports repeated laboratory use while maintaining measurement accuracy.

Designed for Engineering Education

Tailored for engineering electronics laboratories, the setup helps students and instructors gain practical insights into Zener diode behavior under both forward and reverse bias conditions. The apparatus enhances theoretical understanding by providing hands-on experience with real-time electrical measurements.

FAQ's of ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS (FORWARD & REVERSE):

Q: How is the Zener Diode V-I Characteristics Apparatus used in electronics labs?

A: The apparatus is used to measure and analyze the voltage-current relationship of Zener diodes under forward and reverse bias. It provides accurate readings using round meters, allowing students to understand diode behavior practically.

Q: What are the benefits of using a Bakelite panel in this apparatus?

A: Bakelite is an excellent insulating material, offering durability and safety during experiments. The Bakelite panel not only protects the internal circuitry but also ensures reliable long-term use in educational environments.

Q: Where can this apparatus be best utilized?

A: This apparatus is best suited for engineering colleges, technical institutes, and research labs where fundamental semiconductor experiments form part of the electronics curriculum.

Q: What process does the apparatus follow to demonstrate V-I characteristics?

A: Users connect the Zener diode into the circuit, then vary voltage to observe current responses in both forward and reverse bias. The round meters display real-time measurements, enabling easy plotting of the V-I curve.

Q: When should the apparatus be calibrated or maintained?

A: Regular checks are recommended at the start of each semester or before extensive experimentation. Calibration can ensure the accuracy of the round meters and the integrity of electrical connections.
