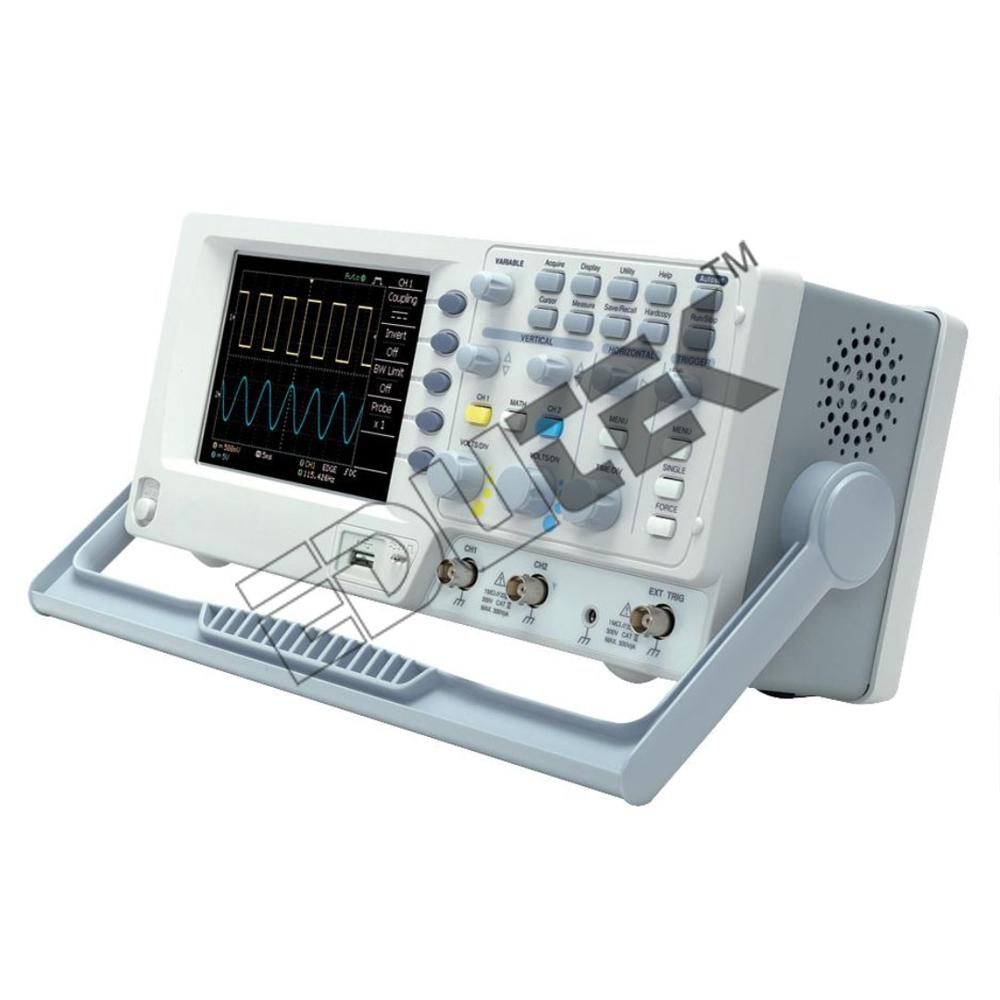

Oscilloscope .

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Oscilloscope . Specification

Features
This Digital Storage Oscilloscope is fabricated using superior quality raw material that is procured from our trusted sources.

Function
Digital Oscilloscope

Warranty
1 Year

Relative Humidity
85% (non-condensing)

Compliance
Conforms to IS/IEC standards

Rise Time
17.5 ns

Calibrator Output
2 V, 1 kHz

Maximum Input Voltage
400V (DC + peak AC)

Power Consumption
<40 W

Sweep Speed
0.2 s/div to 0.2 s/div

Bandwidth
20 MHz (-3dB)

Input Impedance
1 M 2%, 20 pF 3 pF

Trigger Modes
Auto, Normal, Single

Time Base Range
0.2 s/div - 0.2 s/div

Vertical Sensitivity
1 mV/div to 20 V/div

Storage Temperature
-10C to 55C

Accessories Included
Probes, Power cord, User manual

Oscilloscope . Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Oscilloscope .

Oscilloscope

Specifications of Oscilloscope

Avail from us a premium quality of Digital Oscilloscope that is made in accordance with the defined industry standards. This Digital Storage Oscilloscope is fabricated using superior quality raw material that is procured from our trusted sources. Offered at market leading prices, these products are properly tested before the final delivery.

Precision and Versatility

Boasting a bandwidth of 20 MHz and vertical sensitivity from 1 mV/div to 20 V/div, this Digital Storage Oscilloscope is tailored for a range of laboratory and industrial applications. Its fast rise time and sensitive triggering allow users to capture even fleeting electrical events with clarity, making it indispensable for electronics design and troubleshooting.

User-Oriented Design

Equipped with Auto, Normal, and Single trigger modes, and capable of handling input voltages as high as 400V, this oscilloscope combines safety with flexibility. Easy-to-use controls and a comprehensive set of accessories provide users an intuitive experience, ideal for both seasoned engineers and learners.

FAQ's of Oscilloscope .:

Q: How do I set the vertical sensitivity on this oscilloscope?

A: The oscilloscope allows you to adjust vertical sensitivity between 1 mV/div to 20 V/div using the vertical control knobs. Set the sensitivity according to the amplitude of the signal you are analyzing to achieve optimal waveform visualization.

Q: What is the process for using the different trigger modes?

A: Trigger modes (Auto, Normal, Single) can be selected via the function menu or control panel. Auto mode is suitable for observing continuous signals, Normal is used for stable repetitive signals, and Single mode is ideal for capturing one-time or rare events.

Q: Where can this oscilloscope be used effectively?

A: This instrument is ideal for electronics laboratories, educational institutions, and industrial settings. It's particularly useful for circuit development, debugging, and production testing due to its comprehensive measurement capabilities and robust build.

Q: What benefits does the wide sweep speed range provide?

A: The sweep speed range from 0.2 s/div to 0.2 s/div ensures that both slow-varying and high-frequency signals can be observed and analyzed accurately, offering flexibility for examining various electronic phenomena.

Q: When should the calibrator output be used?

A: Use the 2 V, 1 kHz calibrator output to verify and adjust the accuracy of your oscilloscope probes before critical measurements. This ensures that waveform readings are precise during actual operation.

Q: How does compliance with IS/IEC standards benefit users?

A: Conformance to IS/IEC standards assures users of the oscilloscope's safety, reliability, and performance in line with internationally accepted requirements, providing peace of mind and trust in instrumentation quality.
