Mobile Phone Trainer

Get a Price/Quote

MOQ : 1 Unit

Mobile Phone Trainer Specification

Power Source
AC Adapter

Input
AC 230V, 50Hz

Display Type
LCD Display

Components
Motherboard, keypad, display, speaker, microphone and all internal components exposed for study

Operating Temperature
0C to 50C

Response Time
Instant

Output
DC through power adapter

Features
Onboard circuit explanation, Bread-board area, Component Layout Diagram, Block Diagram, Fault Simulation

Usage
Mobile phone operation and training

Resolution
128 x 64 Pixels

Interface
Physical Interfaces (buttons, keys, ports)

Sensors Specification
Onboard microphone and speaker

IP Rating
Not Rated

Charging Voltage
5V DC

Power Supply
AC Mains

Processor Speed
Standard Mobile Processor

Product Type
Trainer

Application
Educational Institutions, Technical Institutes

Rated Voltage
230 V AC

Supply Voltage
230 V

Size
Standard

Dimension (L*W*H)
400mm x 300mm x 150mm

Function
Mobile Phone Trainer (Demonstrator) is useful to understand the basic concept, Theory and functional working fundamentals of a mobile phone.

Color
White & Blue

Weight
2-3 kg (approx)

Usage & Applications
Real Time Mobile Operation

Warranty
1 Year

Thickness
Standard Cabinet

Capacity
Single Unit

Current Rating
< 1A

Frequency
50Hz

Accessory Kit
Connecting leads, charger, instructional guide

Mounting Type
Table Top

Practical Exercises
Predefined faults for troubleshooting

Panel Material
CRCA Powder Coated

Training Manual
Comprehensive Experiment Manual Included

Mobile Compatibility
Demonstrator only, not for real mobile use

Safety Features
Fuse protected, shock proof panel

Demonstration Features
Live signal tracing and analysis ports

Mobile Phone Trainer Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Mobile Phone Trainer

Product Description of Mobile Phone Trainer ETK-9006

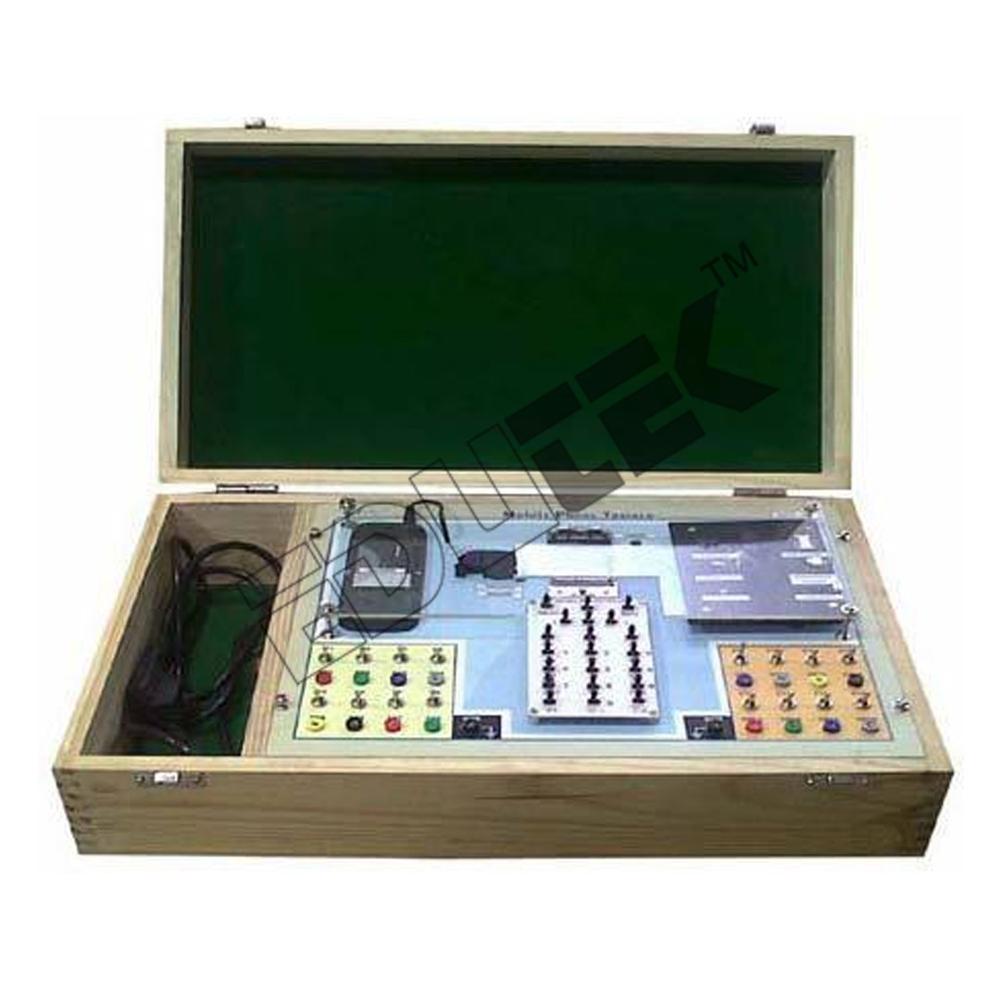

Mobile Phone Trainer (Demonstrator) is useful to understand the basic concept, Theory and functional working fundamentals of a mobile phone. The Mobile Phone Trainer (Demonstrator) is a high technology, rugged, user-friendly replica of a professional electronic push button type Mobile phone receiver. The Complete Mobile phone in exploded open version with its actual circuits / modules duly interconnected are provided for detailed blockwise study. The multicoloured mimic on the front panel consists of various sections of the mobile phone, Battery, Charger, Test Points, LEDs and Switchable, non-destructive, faults to observe various signals and understand the working of a Mobile Phone Receiver.
A detailed Instruction Manual is also provided:

Cellular System: EGSM / GSM 900
Rx frequency band: EGSM 925 ...960 MHz GSM 900 935...960 MHz
Tx frequency band: EGSM 880 ...890 MHz GSM 900 890 ...915 MHz
Output power: +5 +33 dBm / 3.2 MW ...2 W
Channel spacing: 200 kHz
Antenna: Loop type
Provided Display: Provided
On board sections: Antenna, Keypad, SIM socket, charging Circuit, Clock and User interface such as Buzzer, Vibrator and LEDs
Test points: Provided
Switched Faults: Provided, Non Destructive

Features of Mobile Phone Trainer

Real Time Mobile Operation
Expanded, Exploded and Open Modular Trainer for Better Understanding
Explanation of mobile phone working
Test Points to observe various Signals
Study of all sections in mobile phone
TX / RX - 2G technology and GMSK signals
Study of User Interface Control signals
Study of SIM operation
Study of Battery identification and charging
Switched Faults
Detailed Instruction Manual and CD

Interactive Learning Platform

The Mobile Phone Trainer enables students and instructors to engage in practical exercises, simulating real-time mobile phone faults and troubleshooting procedures. Its transparent design reveals every internal element, allowing detailed visual and functional analysis during demonstrations.

Safety First

Fitted with fuse protection and a shock-proof panel, this trainer prioritizes user safety during operation. Only standard voltages are used, and the panels robust CRCA powder coating adds durability suitable for classroom and laboratory settings.

Comprehensive Training Materials

A complete experiment manual is included, guiding users from fundamental mobile theory to advanced fault diagnosis. This makes the trainer ideal for educational institutions and technical institutes seeking a structured approach to mobile phone education.

FAQs of Mobile Phone Trainer:

Q: How does the Mobile Phone Trainer help in understanding mobile phone circuits?

A: The trainer provides access to live signal tracing and onboard component layouts, allowing users to observe and analyze real-time operations of mobile circuits. It supports practical demonstration of key concepts using exposed internal components and block diagrams.

Q: What practical exercises are included with the Mobile Phone Trainer?

A: Predefined faults are integrated into the trainer, enabling users to practice troubleshooting common mobile phone issues. These exercises are complemented by guided experiments detailed in the included comprehensive manual.

Q: When is the best context to use this Mobile Phone Trainer?

A: This device is ideally employed in educational settings, such as technical institutes and training workshops, where practical understanding of mobile phone fundamentals and hands-on repair skills are needed.

Q: Where can the Mobile Phone Trainer be installed or used?

A: Designed for table-top mounting, this trainer fits easily into classrooms, laboratories, and mobile phone repair training centers. Its compact dimensions (400mm x 300mm x 150mm) allow flexible placement on standard workspaces.

Q: What is the process of using the trainer for educational purposes?

A: Users begin by studying the block and component diagrams, then proceed with guided experiments from the manual, utilizing the LCD for signal analysis and troubleshooting simulated faults via the accessible ports and bread-board area.

Q: What are the benefits of using a demonstrator-only trainer, not meant for real mobile use?

A: The trainers focus on demonstration ensures safety and longevity, allowing repeated use without risk of damaging a real mobile device. Users learn fundamental mobile phone concepts risk-free, with all internal workings displayed for educational clarity.
