Send InquirySCHMIT TRIGGER AND COMAPARATOR
Price 1000.0 INR/ Piece
MOQ : 1 Piece
SCHMIT TRIGGER AND COMAPARATOR Specification
- IP Rating
- IP20
- Input
- Analog
- Response Time
- Fast, typically < 1us
- Operating Temperature
- 0C to 60C
- Interface
- Wire Terminal / Pin Header
- Power Supply
- External DC Source
- Features
- Noise Immunity, High Switching Speed, Stable Output
- Output
- Digital
- Thermal Conductivity
- Standard for PCB modules
- Components
- IC, PCB, Resistors, Capacitors, Connectors
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Power Source
- DC Power Supply
- Product Type
- SCHMIT TRIGGER AND COMAPARATOR
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- 5V-30V DC
- Supply Voltage
- 5V to 30V
- Size
- Medium
- Dimension (L*W*H)
- Approx. 65mm x 45mm x 18mm
- Function
- Signal Conditioning, Waveform Shaping
- Color
- Black
- Weight
- Approx 55g
- Capacity
- Standard
- Current Rating
- 10mA to 50mA
- Thickness
- Standard
- Frequency
- DC to Few kHz operation
- Test Point
- Available for Troubleshooting
- Hysteresis Level
- Adjustable (Potentiometer available)
- Mounting Type
- Panel Mount / PCB Mount
- RoHS Compliant
- Yes
- Terminal Type
- Screw Terminal / Pin Header
- PCB Material
- FR4
- Transistor Output
- Open Collector / Push-Pull depending on configuration
- Isolation
- No Electro-Optical Isolation
- IC Used
- LM393 or Equivalent
SCHMIT TRIGGER AND COMAPARATOR Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE

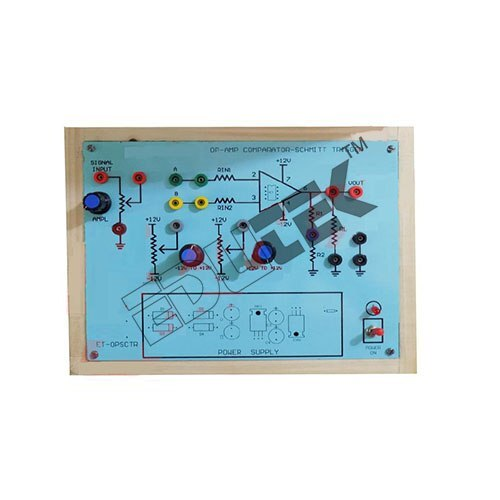

About SCHMIT TRIGGER AND COMAPARATOR
Specification:
SCHMIT TRIGGER AND COMAPARATOR
It is used to study function of op-amp as comparator-Schmitt trigger.
On board POT to vary input signal
On board 2 varying voltage from -12v to +12v
On board test points to analyze the signal
ON/OFF switch and LED for power indication.
Bare board Tested Glass Epoxy SMOBC PCB is used.
Block Description Screen printed on glassy epoxy PCB
All interconnections are made using 2mm banana Patch cords with built-in power supply
Robust Signal Conditioning for Engineering
Designed specifically for engineering electronics applications, this Schmitt Trigger and Comparator module offers dependable signal processing by shaping and conditioning analog signals into stable digital outputs. Its noise immunity and quick response suit demanding test setups, enabling precision and reliability in laboratory and instrumentation projects.
Versatile Mounting and Interface Options
With support for both panel and PCB mounting, integration into new or existing systems is seamless. The module accommodates various setups via screw terminals or pin headers and features accessible test points for simplified troubleshooting, catering to engineers seeking flexibility and ease of use.
Customizable Performance and User-Friendly Design
Features such as an adjustable hysteresis level-achieved with a convenient potentiometer-allow fine-tuning of switching thresholds. The standard medium-sized, black FR4 PCB robustly houses all components, while adherence to RoHS standards demonstrates commitment to safety and sustainability.
FAQ's of SCHMIT TRIGGER AND COMAPARATOR:
Q: How can I adjust the hysteresis level on this module?
A: The module features an onboard potentiometer that allows users to easily adjust the hysteresis level. By turning this potentiometer, you can fine-tune the voltage threshold to suit your specific signal conditioning needs in engineering electronics instruments.Q: What are the mounting options available for installation?
A: This module offers both panel mount and PCB mount options. You can securely install it using either screw terminals for panel applications or pin headers when integrating directly onto a printed circuit board, providing installation flexibility.Q: Where can I access test points for troubleshooting purposes?
A: Dedicated test points are provided directly on the FR4 PCB. These test points make it straightforward to connect measurement equipment and diagnose circuit behavior during setup or maintenance, ensuring efficient troubleshooting.Q: What benefits does the open collector or push-pull output configuration provide?
A: Depending on your application's requirements, the module can be configured for open collector or push-pull output. Open collector outputs enable easy interfacing with various loads, while push-pull outputs offer faster transitions and improved driving ability for digital signals.Q: When should I use this module in engineering projects?
A: This module is ideal for scenarios requiring signal conditioning, waveform shaping, and precise analog-to-digital conversion. It's commonly used in the development and testing phases of electronic circuits within laboratory or industrial settings.Q: How does the module ensure safety and environmental compliance?
A: This product is RoHS compliant, meaning it is manufactured without hazardous substances and follows strict guidelines for environmental safety, suitable for modern engineering environments.Q: What applications benefit most from this Schmitt Trigger and Comparator?
A: Engineers and technicians working with electronics instruments, requiring stable, noise-immune digital signals from analog inputs, will find this module especially advantageous in tasks involving reliable switching, frequency operations, and robust waveform shaping.
