Microtome Equipments

Tissue Embedding Center & Cooling Plate

A modular unit with separate cold storage unit. An integrated Para Trimmer with improved profile for optimum wax flow from surface. Cold plate temperature control adjustable and between -12C to 3C (tolerance +/- 1C). It long & short nozzle design. A higher temperature mould storage area 60C to prevent moulds sticking together. The Embedder has a thicker heater plate for minimal wax build up. Flat work surfaces for maximum working area. Electrically heated forceps optional. Paraffin wax tank: 5 litres. User-adjustable lighting levels provided. Independently controlled lighting provided. Tissue Storage tank large to hold all tissue baskets. Cold Plate hold at least 72 Standard base molds. Mold storage holds at least 300 standard base molds. Paraffin Drain Valves to drain waste wax and tissue tank present. Adjustable paraffin dispensing paddle to handle any size cassette provided. Thermally insulated work contact surfaces provided. Multilingual touch screen controls provided.

Fully Automated Coverslipping Workstation

Multiple staining processes can run in parallel Reagent heating eliminates seasonal effects Automatic detection of waste gas concentration, equipped with purification device, health and environmental protection Servo motion control system, fast, stable, and accurate Sound and light dual alarms in case of malfunction, the system automatically pauses waiting for the malfunction to be resolved, safe and reliable, without damaging the glass slide

AUTOMATIC MICROTOME

A sturdy microtome usable in sectioning slime and sensitive incision from tissues. Semi-automatic cut sections from 0.5 p to 100 p. Sample feed of the microtome is automatically and perform the manually and sectioning process manually. Section And Trim Function Made By Pressing Button In Control Panel, Section Speed Can Be Adjusted By Speed Control Key. With Function of Emergency Stop. This is microprocessor controlled with LCD screen on the sections and status of error. Having command control module to control the proposed device. Also having an integrated waste collection folder. A standard sample holder is provided with the proposed device optionally a glass knife holder Features: Section Range From 0.5micron to 100micron Meter. Min. Set Value Is 0.50micron Meter. Trimming Range From 1“600micron Meter. Max. Specimen Size: 50 X 50mm. Accessories supplied with the Microtome: Disposable blades (50) and blade holders, A set of Block holders.

ROTARY SENIOR MICROTOME

Rotary Senior Microtome (Spencer 820 type):most modern and reliable sectioning equipment designed for very precise sectioning of tissues upto 1 micron thickness. The feed indicator, located in front of microtome is operated by the latest 'CAM DRIVE SYSTEM™ for accurate feed setting from 1-50 microns in steps of one micron. It is graduated in microns, is conveniently located in the front for instant references and its setting is controlled by a knurled knob at the back of the microtomes. The interior mechanism rests on a heavy cast iron base and is covered with a full swing protective cover for easier cleaning and lubrication. The Salient features include independent feed mechanism with automatic safety device, universal knife holder with lateral movements permitting use of the entire knife edge, universal vice type object holder for accurate centering of the specimen. The instrument ensures life -long smooth operation .Individual components are fabricated and assembled using latest technology and selected materials. The knife supplied with the microtome is fabricated from imported fine grain steel tested for micro-structure and is heat treated for optimum rigidity and sharpness. Technical features:- Feed adjustment -1-50 microns Total feed excursion “ 28 mm Opening of object clamps : 37—27 mm Accessories supplied with equipment:- Razor-120 mm-one Object holders-set of three Oilcan-one. Packed in card board box and thermocol packing

Automated Stainer

The Unit has fully functional color touch screen integrated into the main body. The software support multiple languages with easy switch between languages. The Unit has battery back-up to continue staining for approximately 40 minutes in the event of a power failure. The unit has an integrated USB port to allow the user to save protocols, instrument setup, and QC files for printing and/or back-up. The control software is capable of storing up to 50 programs in memory. The unit has the option of on-board heating stations. Heated models have 5 independently heated oven stations. The unit has the option to connect exhaust extraction to protect from venting fumes into the laboratory. The unit has built-in lighting to allow the user a high clarity view of the staining area. The software have an Auto-Return feature to enable users to recall to the load door any previously loaded rack of slides. The software has an Urgent Start feature that enables users to prioritise slide racks. Staining pots are capable of holding 320 ml of reagent. Staining pots is capable of being cleaned in a dishwasher to minimize manual cleaning. The software access-code protected. The software has an Auto-Allocate feature to provide the most efficient layout of reagents based upon the protocols entered.

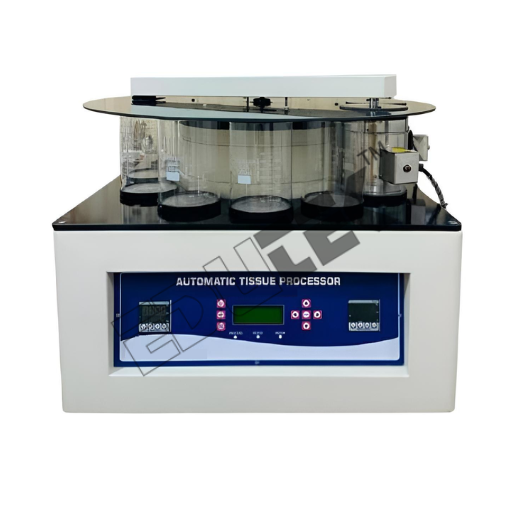

Digital Tissue Processor 1 Liter

Is a compact and versatile equipment for staining process atomization from stage one of fixation of tissue and dehydration process to paraffin wax saturation. Glass door with locking arrangement provides easy viewing and safety from tempering. Continuous agitation is provided by rotating S.S. Tissue basket to make process more effective. A superior thermostat maintains desired temperature of wax bath. Accessories: 1 - S.S. Basket rotor Tissue basket 24 - S.S. Tissue capsules 10 - 1 litre glass beakers 11 - beaker covers 2 - S.S. Wax baths each fitted with thermostat, 5-24 hrs. Calibrated timing discs One-notch plier for programming time discs It works suitably on 220V ac 50Hz single phase

Vacuum Tissue Processor 1 Liter

Is a compact and versatile equipment for staining process atomization from stage one of fixation of tissue and dehydration process to paraffin wax saturation. Glass door with locking arrangement provides easy viewing and safety from tempering. Continuous agitation is provided by rotating S.S. Tissue basket to make process more effective. A superior thermostat maintains desired temperature of wax bath. Accessories: 1 - S.S. Basket rotor Tissue basket 24 - S.S. Tissue capsules 10 - 1 litre glass beakers 11 - beaker covers 2 - S.S. Wax baths each fitted with thermostat, 5-24 hrs. Calibrated timing discs One-notch plier for programming time discs It works suitably on 220V ac 50Hz single phase

Fully Automatic Digital Tissue Processor

Is a compact and versatile equipment for staining process atomization from stage one of fixation of tissue and dehydration process to paraffin wax saturation. Glass door with locking arrangement provides easy viewing and safety from tempering. Continuous agitation is provided by rotating S.S. Tissue basket to make process more effective. A superior thermostat maintains desired temperature of wax bath. Accessories: 1 - S.S. Basket rotor Tissue basket 24 - S.S. Tissue capsules 10 - 1 litre glass beakers 11 - beaker covers 2 - S.S. Wax baths each fitted with thermostat, 5-24 hrs. Calibrated timing discs One-notch plier for programming time discs It works suitably on 220V ac 50Hz single phase

SEMI AUTOMATIC MICROTOME

A sturdy microtome usable in sectioning slime and sensitive incision from tissues. Semi automatic cut sections from 0.2560. Product Description: Advanced driving systems, functions of section, trimming, fast forward, backward etc LCD screen shows section and trimming thickness range, numbers of section and trimming Exchange between section and trimming mode can be finshed by controlling systems Handwheel can be locked at any position to assure userïs safety Large waste tray is easy to clean and unload Universal cassette clamp and standard specimen clamp; Emergency stop systems Section thickness range: 0.2560 M Trimming thickness range: 0.2560 M Minimum setting value: 0.25 M Object feed: 28mm Vertical stroke: 60mm Maximum specimen size: 50 X 50mm

DIGITAL TISSUE PROCESSOR

Entomology Cabinet

Storage Box

Viscosity Bath

Paraffin Embedding Bath

Specimen Jar

Slide Storage Cabinet

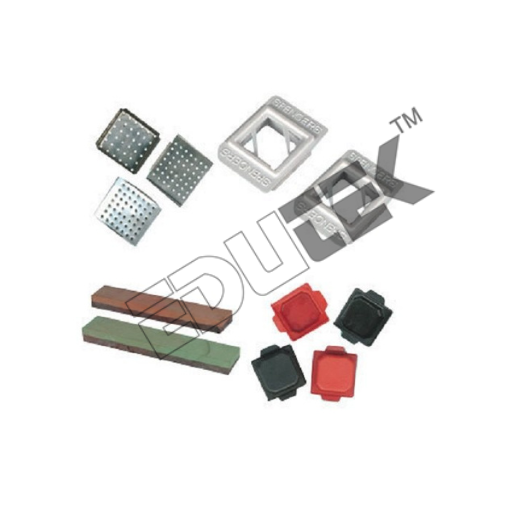

Microtome Object Holders

Sliding Microtome

Sledge Microtome

Microtome Accessories

Slide Mounter

Automatic Tissue Processor

Tissue Culture Station Single Unit

Slide Storage Cabinet

Rotary Senior Microtome

Wood Microtome

Rotary Microtome Erma Type

Tissue Wax Block Storage Cabinet

Microtome Razor

Freezing Microtome

Freezing Microtome ETMT-173 Freezing Microtome (ERMA Type) Versatile sectioning machine for quick processing of frozen material by carbon dioxide freezing attachment. Table clamping is provided. Suitable to cut sections upto 40 microns in steps of 5 microns each. Technical Features:- Freezing stage : 35 mm diameter Feed range : 5-40 microns Total feed excursion : 25mm Accessories Supplied with Equipment:- Razor 120 mm with back & handle-one Honing plate-one CO2 freezing attachment & stage-one Oilcan-one Spanner for attachment to CO2 Cylinder-one Packed in card board box Without CO2 Cylinder

Slide Warming Table

Automatic Razor Sharpener (Spencer Type)

Paraffin Dispenser

Automatic Microtome

Digital Microtome

Cryostat Microtome

Cryostat Microtome

Cryostat Microtome ETMT-174A Most versatile section cutting machine for quick sectioning of tissues. Instantly freezes on built-in rapid freeze stage for biological, veterinary and medical diagnostic biopsies etc. The Microtome is completely made of brass & stainless steel and is placed in stainless steel cold chamber with an observation glass window. Provided with a hermetically sealed compressor unit with A grade components to achieve quick cooling of up to -500C. It is provided with feed range from 0-40microns in steps of 2microns each. Accessories supplied with equipment:- Razor-120 mm with back & handle-one Object holder-set of three Honing Stone-one Oilcan with low temperature-one Dust cover-one

Tissue Flotation Bath

Tissue Flotation Bath ETMT-178 Is useful to float tissue wax sections to flatten for staining process. Double Walled chamber, inner made of black anodised aluminum and outer wall made of mild steel sheet duly painted. Gap between two insulated with glass wool. Temperature ambient to 700C ± 20C controlled by a thermostate. It is supplied completely with Pilot Lamp, Temperature Control Knob, Cord-Plug etc. to work on 220V AC 50Hz single phase. Chamber Size : Diameter 225 mm, Depth 70 mm, Rim 40 mm. Optional Accessories: Digital microprocessor PID temperature controller cum indicator

AUTOMATIC RAZOR SHARPNER
